7.11. DISASSEMBLING THE REAR ASSEMBLY

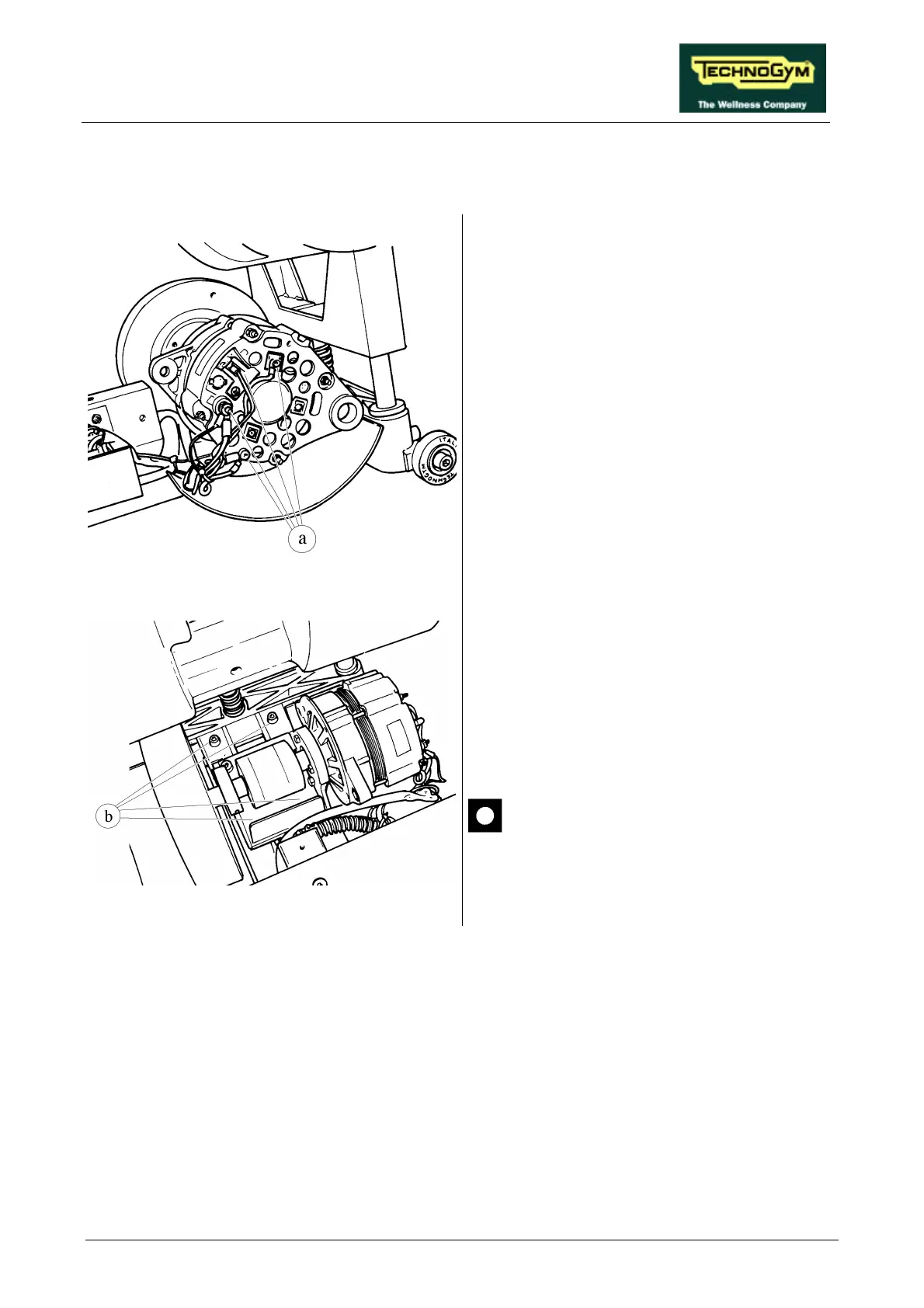

Figure 7.11-1
Carry out the procedure described in paragraph
7.8. “Disassembling the guard”.
1. Disconnect alternator cables a.
Figure 7.11-2
2. Unscrew the 4 screws b which fix the REAR
GROUP to the machine frame using a 6-mm
hex T-wrench.
3. Remove the REAR ASSEMBLY.
To reassemble the REAR ASSEMBLY, carry out
the above procedure in reverse order.
When reassembling the REAR
ASSEMBLY, be careful to position the
vibration-dampers under the fixing
screws.
