Technogym spin trainer - Disassembling the Fan Control Board

SPIN TRAINER: Service & Maintenance Manual - rev. 2.0
Page 7.3
7.3. DISASSEMBLING THE FAN CONTROL BOARD

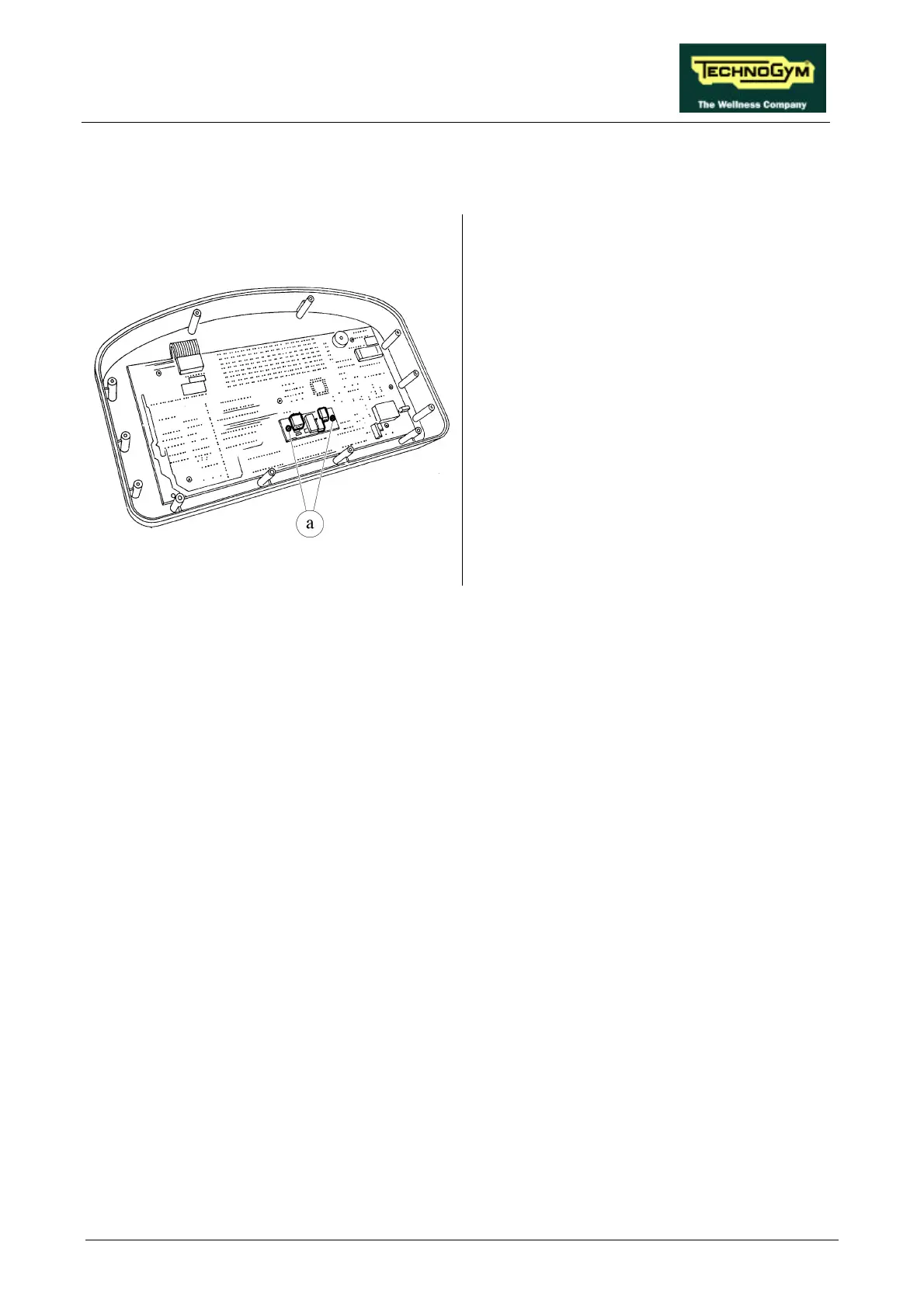

Figure 7.3-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display on a work bench:
1. Remove the two fixing screws a of the fan
control board using a 5.5-mm socket wrench.
2. Remove the FAN CONTROL BOARD.
To reassemble the FAN CONTROL BOARD,
carry out the above steps in reverse order.
