SPIN TRAINER: Service & Maintenance Manual - rev. 2.0
Page 7.10
7.10. DISASSEMBLING THE ELECTRONIC CIRCUIT BOARDS

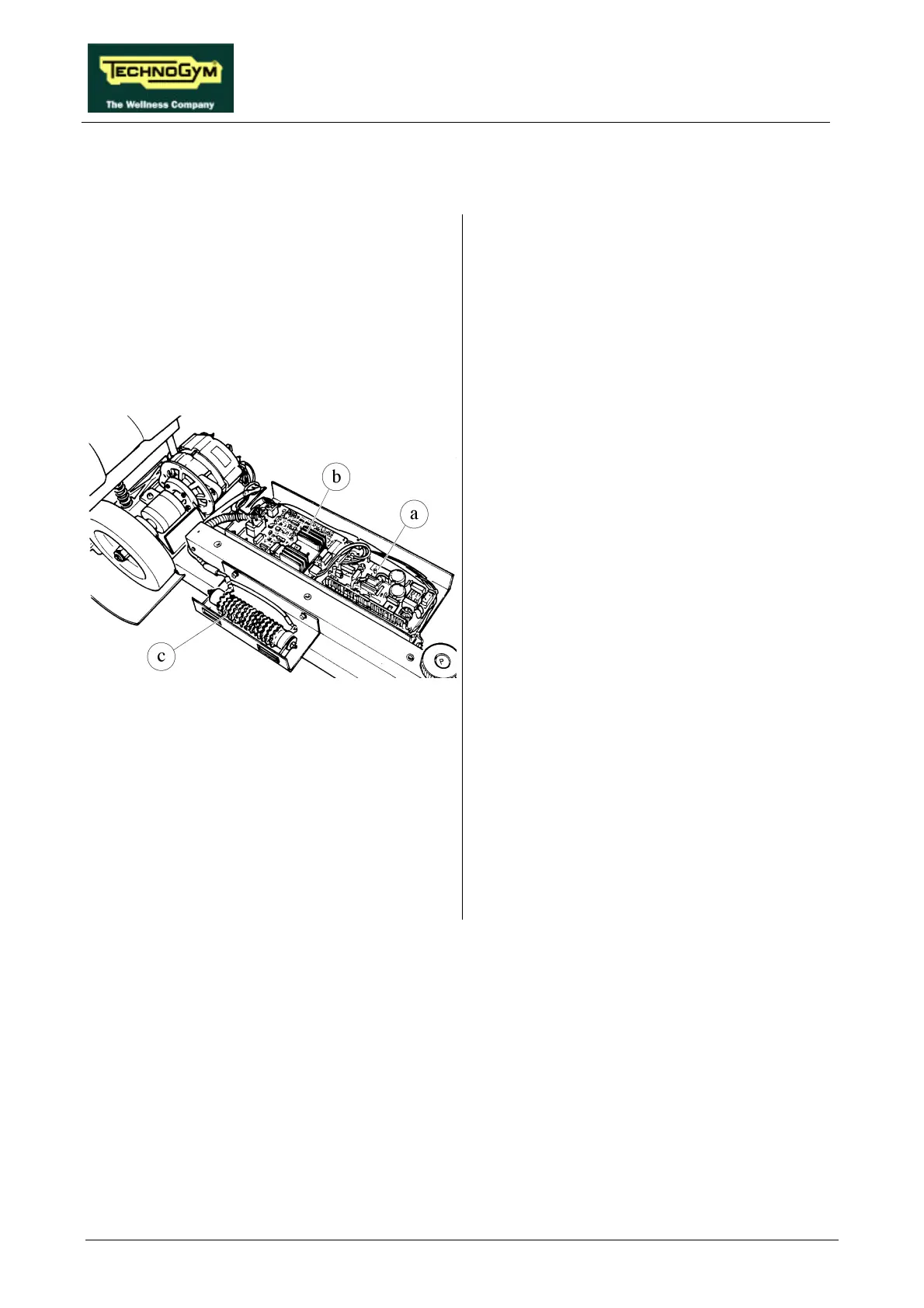

Figure 7.10-1
Carry out the procedures described in paragraph
7.9. “Disassembling the footboard”.
To disassemble the POWER SUPPLY a:
1. Disconnect the 2 connectors CN1 and CN2.
2. Unscrew the 4 fixing screws on the support
plate using a 7-mm socket wrench.
3. Remove the circuit board.
To disassemble the ALTERNATOR
INTERFACE BOARD b:
1. Disconnect the 3 connectors CN1, CN2 and
CN3.
2. Unscrew the 4 fixing screws on the support
plate using a 7-mm socket wrench.
3. Remove the circuit board.
To disassemble the POWER RESISTOR c:
1. Unscrew the 2 locknuts of cable SP-5 using a
7-mm wrench.
2. Unscrew the 2 locknuts of the resistor using a
10-mm wrench.
3. Remove the resistor.
To reassemble the ELECTRONIC CIRCUIT
BOARDS, carry out the above steps in reverse
order.
