 Technosoft 2019 12 iPOS360x VX-CAN/CAT Technical Reference
2.4 Supported Motor-Sensor Configurations
The position and/or speed are controlled using one feedback sensor.
Motor
Sensor type
Brushless
PMSM
Brushless
BLDC
DC Brush Stepper
2 phase
Stepper
3 phase
Incr. encoder
Yes - Yes Yes -
Incr. encoder + Digital Hall
Yes Yes - - -
Sin-Cos encoder
Yes - - -
Digital halls only
Yes - - - -
Linear Halls
Yes - - -
Tacho - - Yes - -
Open-loop (no sensor) - - - Yes Yes
Open-loop (with step loss detection
using incr. Encoder)
- - - Yes Yes
Open-loop with incr. encoder on load - - - Yes Yes
2.5 iPOS360X I/O Evaluation board
A circuit board is available for evaluating the iPOS3602 or 3604 VX CAN or CAT. It comes with multiple
types of connectors for easy access to the iPOS360X features.

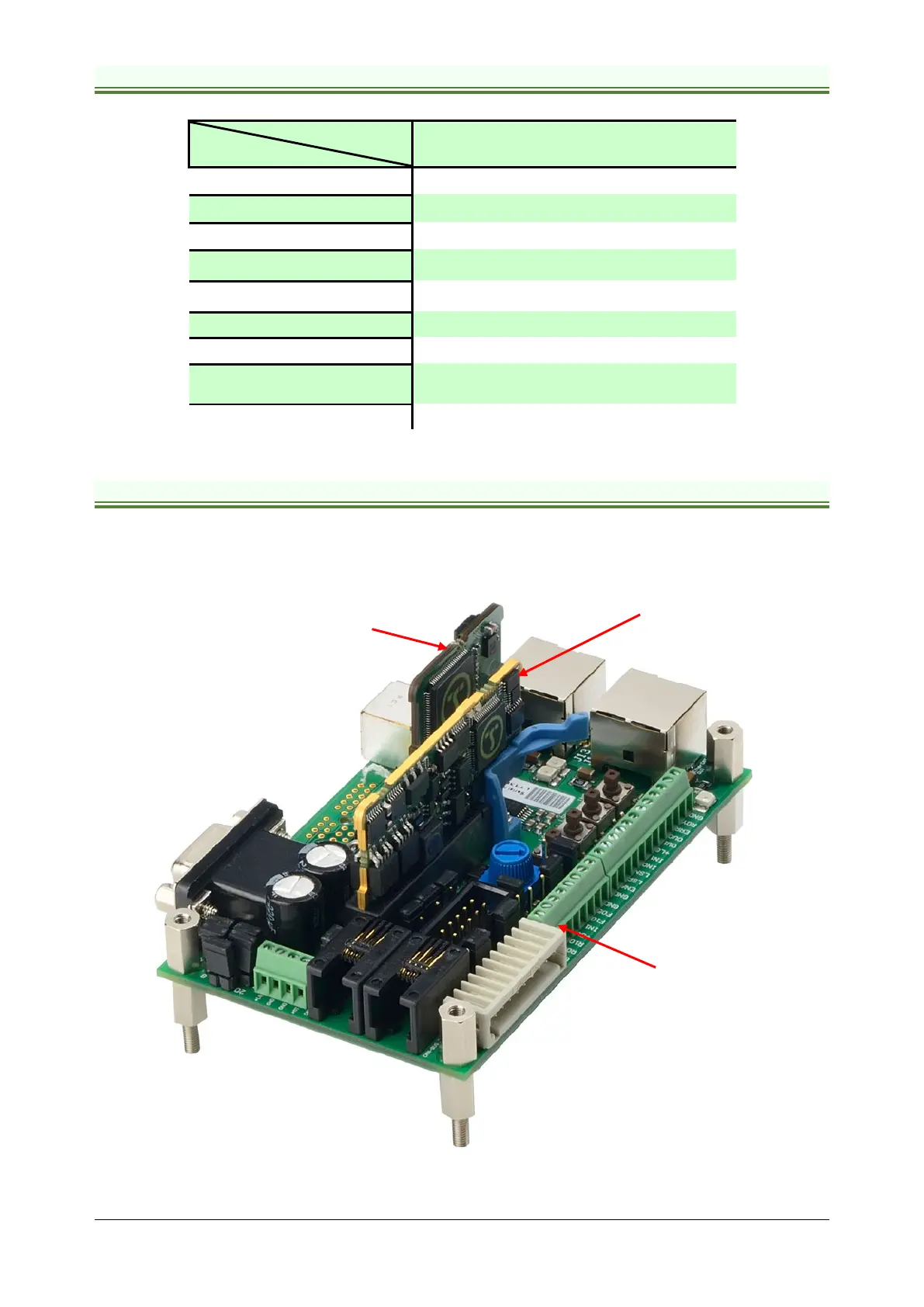

Figure 2.5.1. iPOS360X VX-CAN/CAT mounted on the I/O iPOS360X extension board
iPOS360x VX-CAN/CAT
IO iPOS360x
extension board
ECAT VX adapter
