 Technosoft 2019 13 iPOS360x VX-CAN/CAT Technical Reference
2.5.1 Starter Kit ordering information
Part number
Description
P091.084.IO-iPOS360x.UM.xxxx
Evaluation board User Manual (available for download on our website)
P028.002.E880
IO iPOS360X VX CAN extension board only (without ECAT connectors)
P028.002.E890
IO iPOS360X VX CAT extension board only (with ECAT connectors)
P028.001.E800
IO iPOS360X VX CAN + iPOS3602 VX-CAN drive (without motor)
P028.002.E800
IO iPOS360X VX CAN + iPOS3604 VX-CAN drive (without motor)
P028.001.E810
IO iPOS360X VX CAT + iPOS3602 VX-CAT drive (without motor)
P028.002.E810
IO iPOS360X VX CAT + iPOS3604 VX-CAT drive (without motor)
P028.002.E801
iPOS3604 VX-CAN Starter kit with brushless motor
P028.002.E811
iPOS3604 VX-CAT Starter kit with brushless motor
P028.002.E802
iPOS3604 VX-CAN Starter kit with stepper motor
P028.002.E812
iPOS3604 VX-CAT Starter kit with stepper motor
3 Hardware Installation

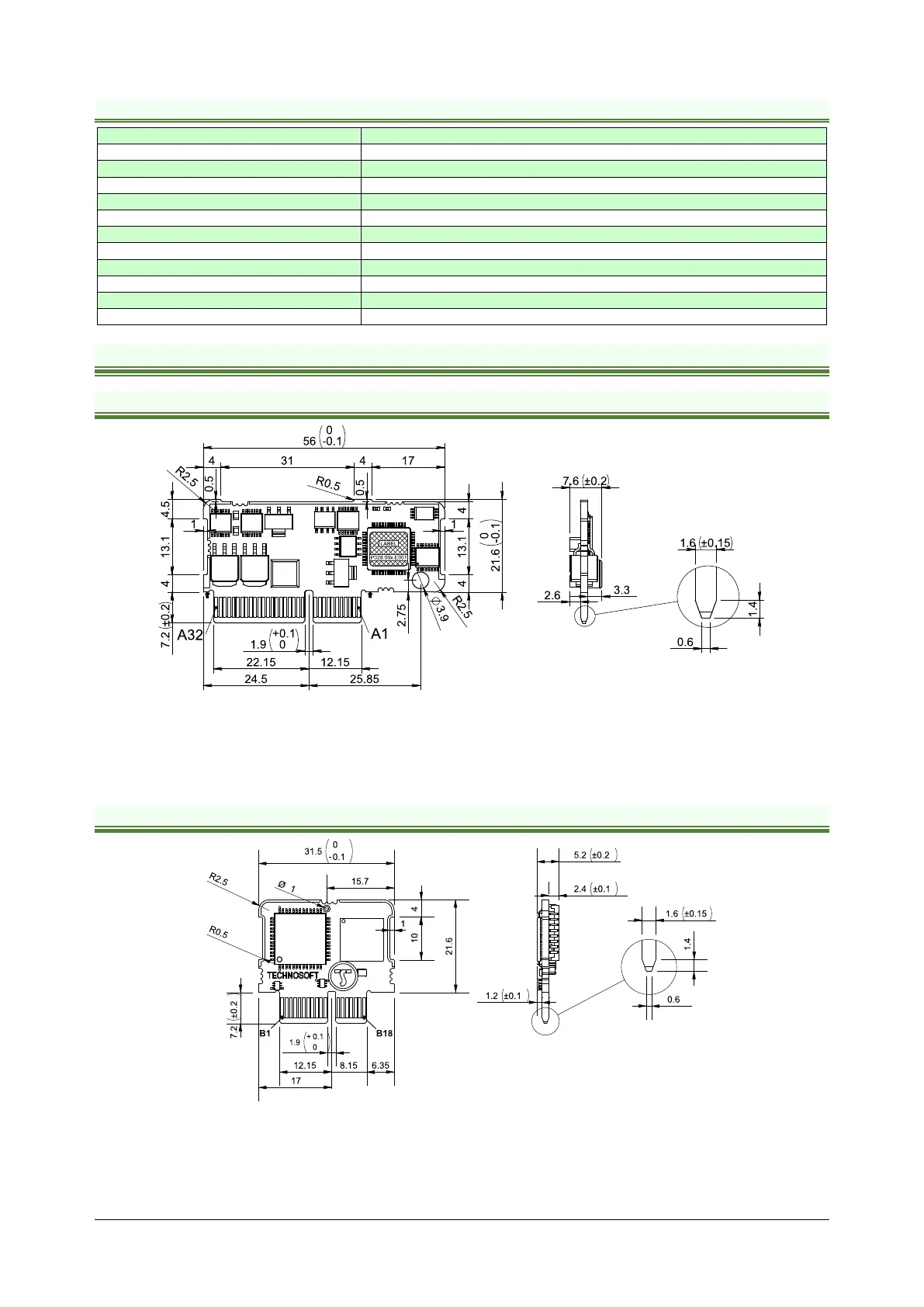

3.1 iPOS360X VX-CAN/CAT Board Dimensions
Figure 3.1.1. iPOS360X VX-CAN drive dimensions
All dimensions are in mm. The drawings are not to scale.
3.2 ECAT-VX EtherCAT adapter dimensions
Figure 3.2.1. ECAT-VX adapter dimensions
All dimensions are in mm. The drawings are not to scale.
