Technosoft iPOS360 VX-CAN Series - Ipos360 X VX-CAT Connection Diagram

 Technosoft 2019 23 iPOS360x VX-CAN/CAT Technical Reference
3.7.2 iPOS360X VX-CAT connection diagram

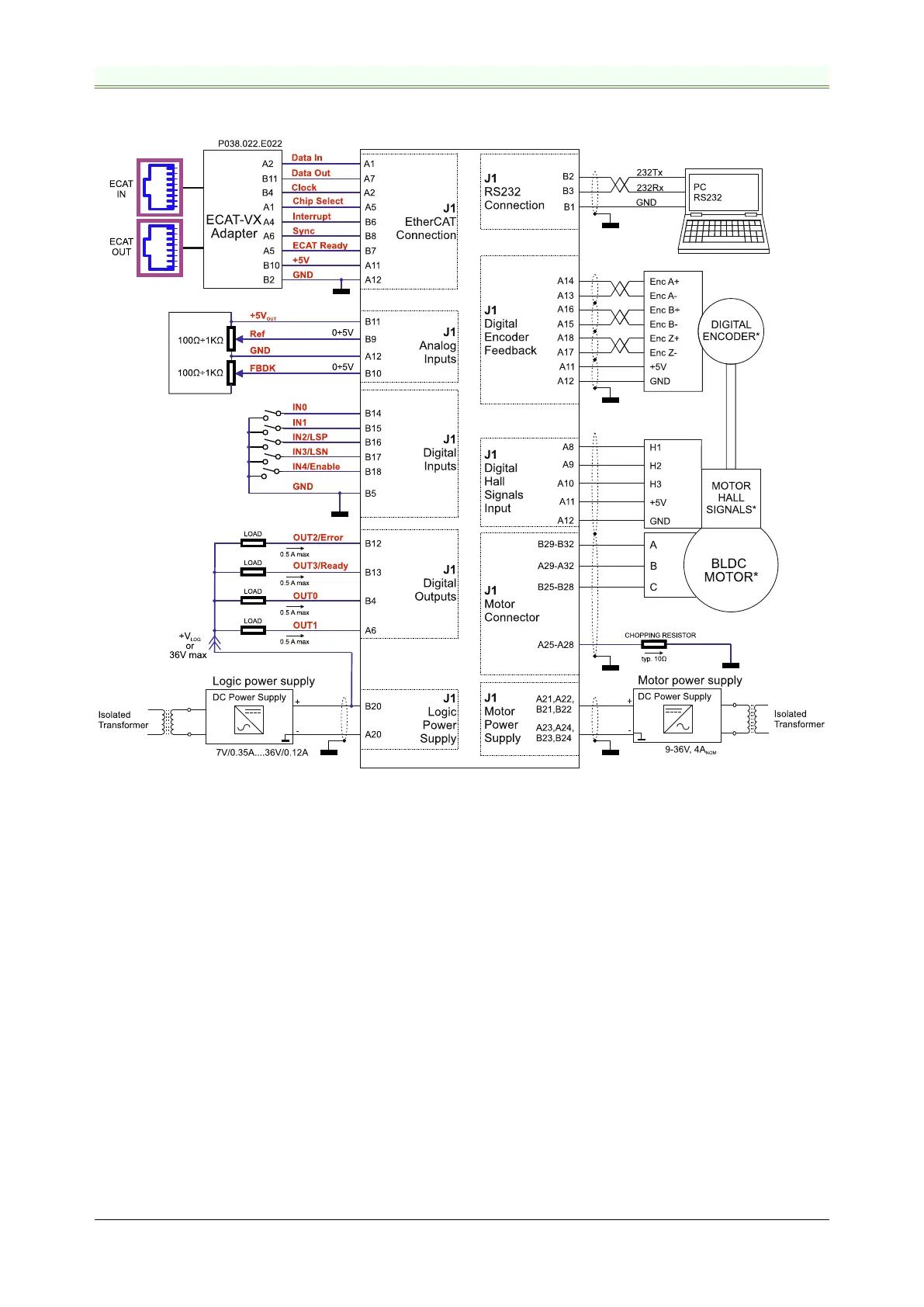

Figure 3.12. iPOS360X VX-CAT Connection diagram
* For other available feedback / motor options, check the detailed connection diagrams below
