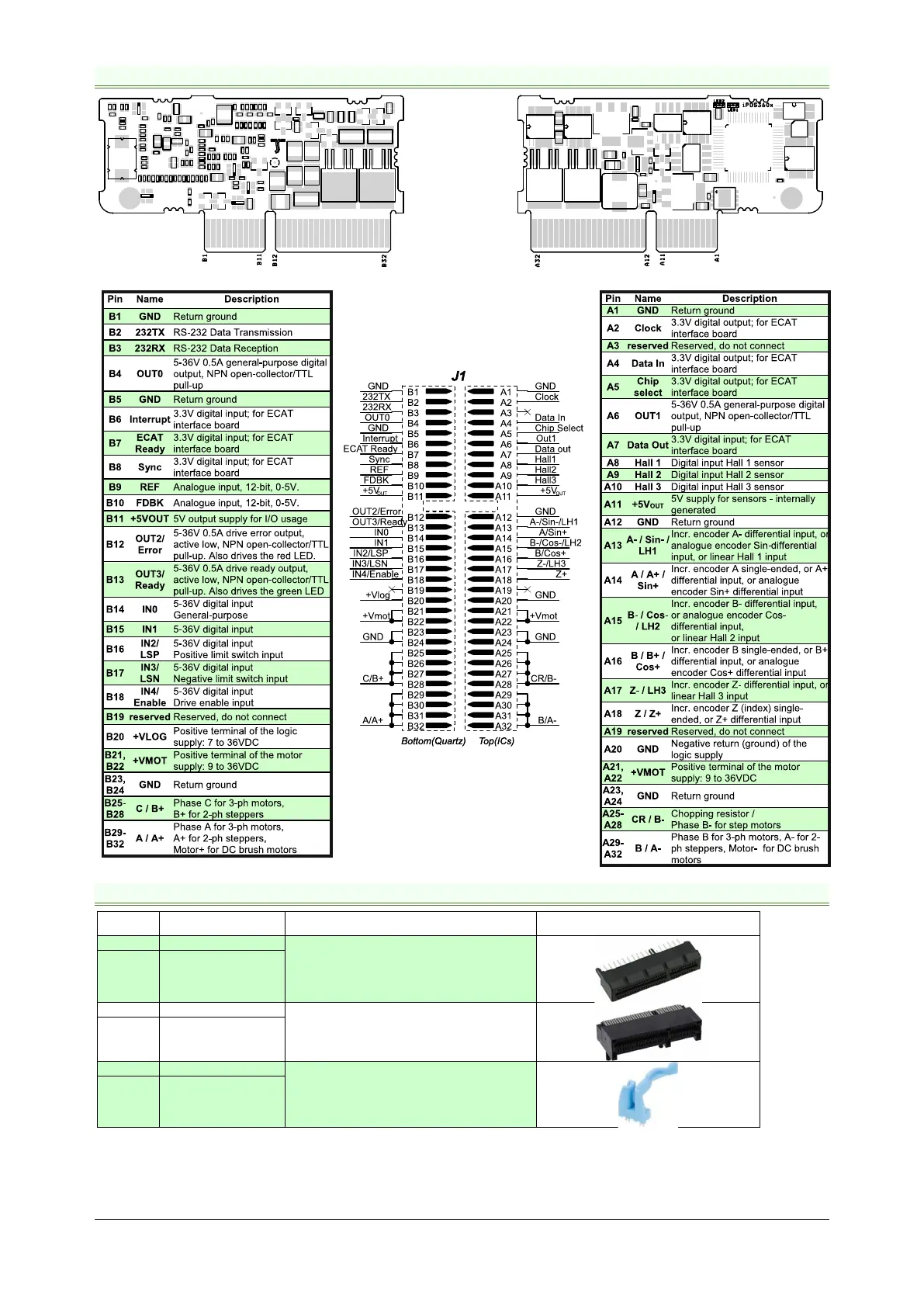

3.6.3 Pinouts for iPOS360X VX-CAT
3.6.4 Mating Connectors for iPOS360X VX-CAT
Producer Part Number Description Images
Tyco
2-1775801-4
PCIe 4x vertical card edge connector,1.0mm
pitch, 2x32 contacts
FCI 10018784-11101TLF
Tyco
1761465-2
PCIe 4x horizontal card edge
connector,1.0mm pitch, 2x32 contacts
Samtec PCIE-064-02-F-D-RA
FCI
10035591-001LF
Retainer for vertical PCIe card
FCI 10042618-002LF
