Technosoft iPOS360 VX-CAN Series - Connectors and Pinouts; Pinouts for Ipos360 X VX-CAN; Mating Connectors for Ipos360 X VX-CAN

 Technosoft 2019 19 iPOS360x VX-CAN/CAT Technical Reference
3.6 Connectors and Pinouts

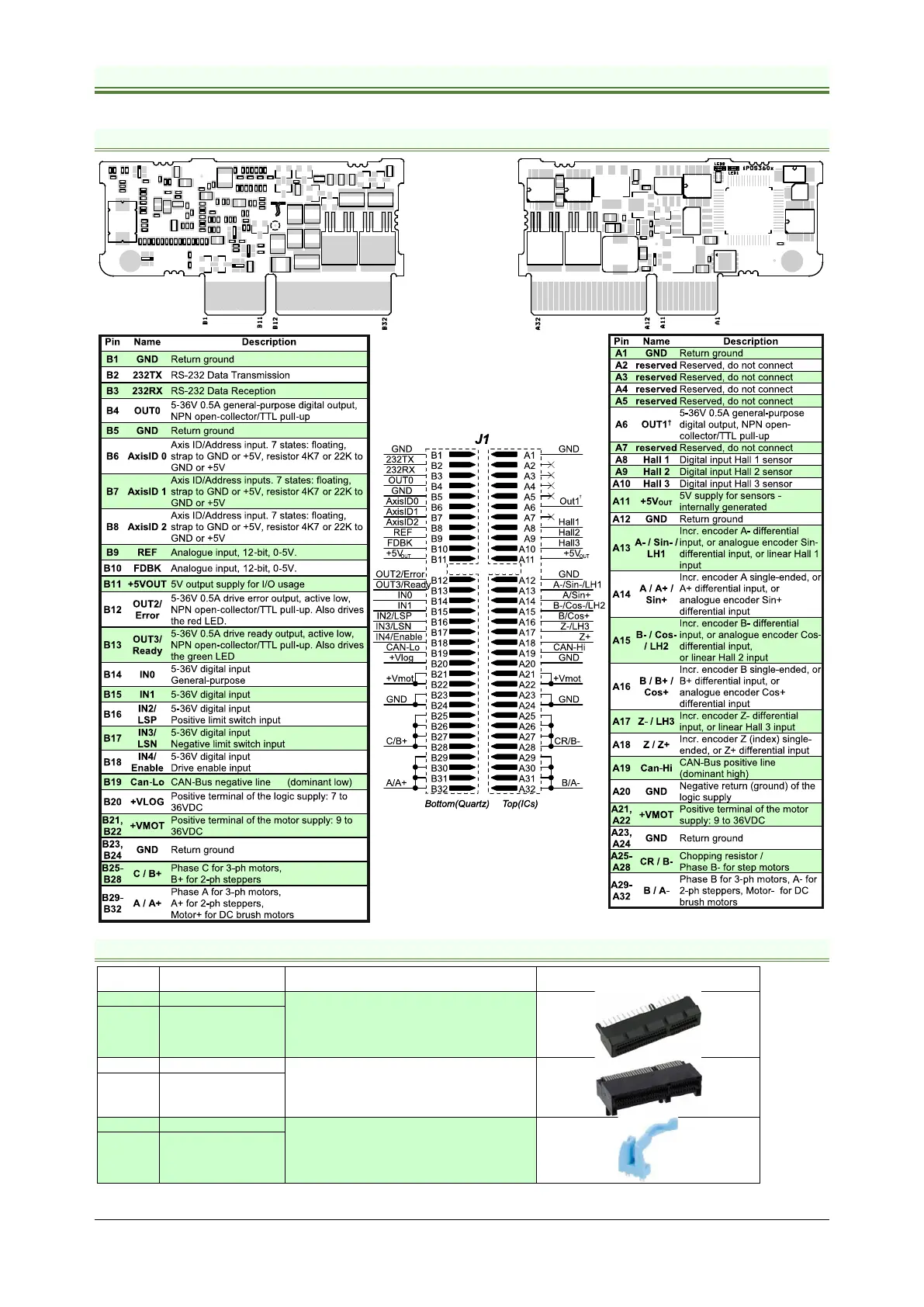

3.6.1 Pinouts for iPOS360X VX-CAN
3.6.2 Mating Connectors for iPOS360X VX-CAN
Producer Part Number Description Images
Tyco
2-1775801-4
PCIe 4x vertical card edge connector,1.0mm
pitch, 2x32 contacts
FCI 10018784-11101TLF
Tyco
1761465-2
PCIe 4x horizontal card edge
connector,1.0mm pitch, 2x32 contacts
Samtec PCIE-064-02-F-D-RA
FCI
10035591-001LF
Retainer for vertical PCIe card
FCI 10042618-002LF
