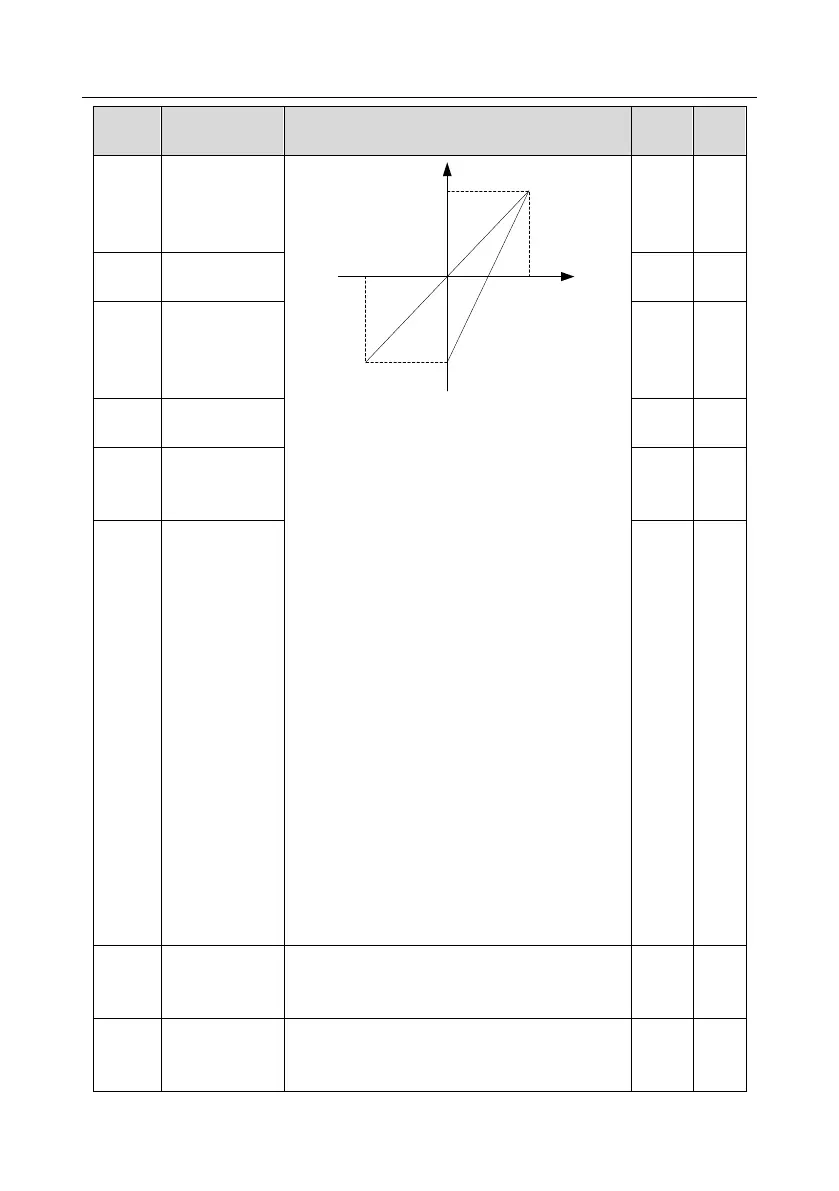

TECHTOP TD350 - Page 170

TD350 Series VFD Function parameter list
-165-
Function
code
Name
Detailed parameter description
Default
value
Modify
P05.32
Corresponding
setting of
intermediate
value 1 of AI2
-100%
100%
Corresponding setting
AI
-10V
10V
20mA
0
AI2
AI1
Input filter time: Adjust the sensitivity of analog
input, increase this value properly can enhance the
anti-interference capacity of analog variables;
however, it will also degrade the sensitivity of
analog input.
Note: AI1 can support 0–10V/0–20mA input, when
AI1 selects 0–20mA input; the corresponding
voltage of 20mA is 10V; AI2 supports -10V–+10V
input.
Setting range of P05.24: 0.00V–P05.26
Setting range of P05.25: -100.0%–100.0%
Setting range of P05.26: P05.24–10.00V
Setting range of P05.27: -100.0%–100.0%
Setting range of P05.28: 0.000s–10.000s
Setting range of P05.29: -10.00V–P05.31
Setting range of P05.30: -100.0%–100.0%
Setting range of P05.31: P05.29–P05.33
Setting range of P05.32: -100.0%–100.0%
Setting range of P05.33: P05.31–P05.35
Setting range of P05.34: -100.0%–100.0%
Setting range of P05.35: P05.33–10.00V
Setting range of P05.36: -100.0%–100.0%
Setting range of P05.37: 0.000s–10.000s
0.0%
○
P05.33
Intermediate
value 2 of AI2
0.00V
○
P05.34
Corresponding
setting of
intermediate
value 2 of AI2
0.0%
○
P05.35
Upper limit value
of AI2
10.00V
○
P05.36
Corresponding
setting of upper
limit of AI2
100.0%
○
P05.37
Input filter time of
AI2
0.030s
○
P05.38
HDIA high-speed
pulse input
function
0: Set input via frequency
1: Reserved
2: Input via encoder, used in combination with HDIB
0
◎
P05.39
Lower limit
frequency of
HDIA
0.000 KHz – P05.41
0.000
KHz
○
