TD350 Series VFD Function parameter list
-170-
Function
code
Name
Detailed parameter description
Default
value
Modify
communication
18: Set value 1 of Ethernet communication
19: Set value 2 of Ethernet communication
20: Input value of high-speed pulse HDIB
21: Set value 1 of EtherCAT/PROFINET/Ethernet
IP communication
22: Torque current (relative to 3 times the rated
current of the motor)
23: Exciting current (relative to 3 times the rated
current of the motor)
24: Set frequency (bipolar)
25: Ramps reference frequency (bipolar)
26: Running speed (bipolar)
27: Set value 2 of EtherCAT/PROFINET/Ethernet
IP communication
28: C_AO1 from PLC (You need to set P27.00 to 1.)
29: C_AO2 from PLC (You need to set P27.00 to 1.)
30: Running speed (relative to 2 times the rotating
speed of the motor)
31: Output torque
32–47: Reserved variable
P06.17
Lower limit of
AO1 output
Above function codes define the relation between
output value and analog output. When the output
value exceeds the set max./min. output range, the
upper/low limit of output will be adopted during
calculation.
When analog output is current output, 1mA
corresponds to 0.5V voltage. In different
applications, 100% of output value corresponds to
different analog outputs.

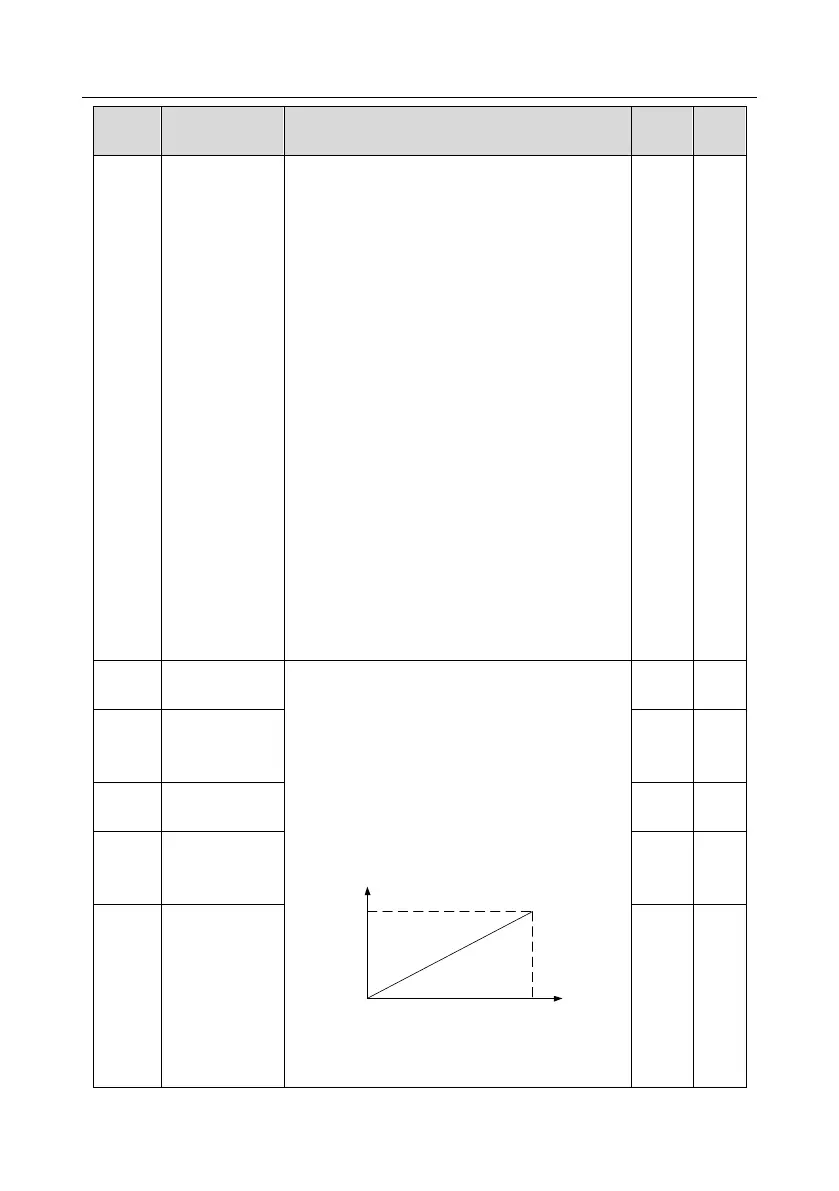

10V (20mA)
0.0% 100.0%
AO
Setting range of P06.17: -100.0%–P06.19
Setting range of P06.18: 0.00V–10.00V
Setting range of P06.19: P06.17–100.0%
0.0%
○
P06.18
Corresponding
AO1 output of
lower limit
0.00V
○
P06.19
Upper limit of
AO1 output
100.0%
○
P06.20
Corresponding
AO1 output of
upper limit
10.00V
○
P06.21
AO1 output filter
time
0.000s
○
