Dynamic Adaptive AB Guideline
Action Bar Options
When in Dynamic Adaptive AB Guidance, the
following options are available:
Pause Guideline Mapping – use to pause
dynamic mapping. A straight line will be
drawn between the pause point and the
resume point.
Resume Guideline Mapping – use to
resume dynamic mapping. A straight line
will be drawn between the pause point and
the resume point.
Start Detour – use to start a variant
guideline off of the current guideline. If
connected or nished, this will change the
existing guideline.
Pause Detour – use to pause dynamic
detour mapping. A straight line will be
drawn between the pause point and the
resume point.
Resume Detour – use to resume dynamic
detour mapping. A straight line will be
drawn between the pause point and the
resume point.
Cancel Detour – use to cancel detour
mapping, discarding the detour guideline
Connect Detour – use to connect the
detour guideline to the existing guideline.
The detour will become part of the current
guideline.
Finish Detour – use to create a new
guideline end location. The detour will
become part of the current guideline.

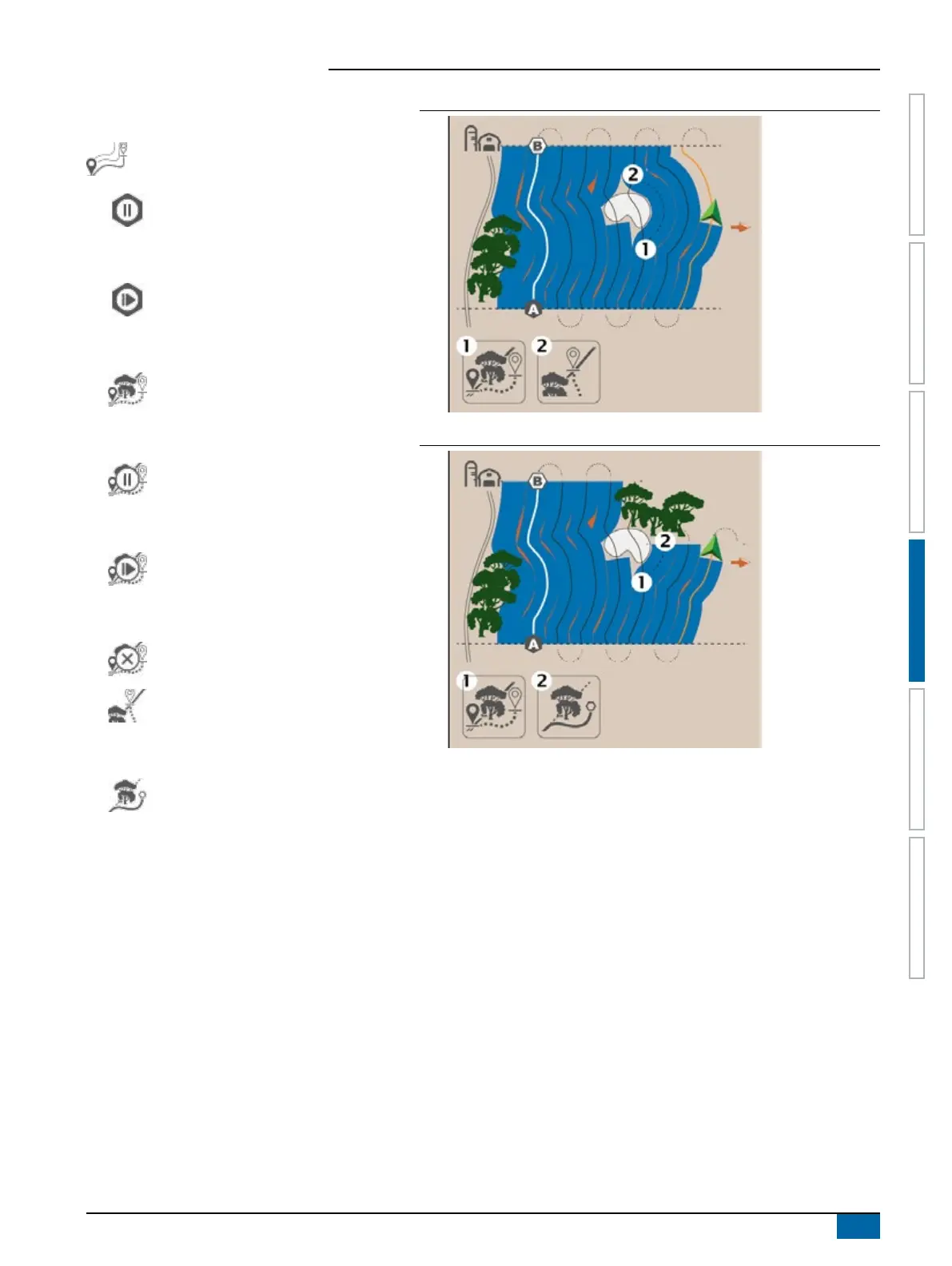

Figure 3: Detour with Connect Detour
Figure 4: Detour with Finish Detour
