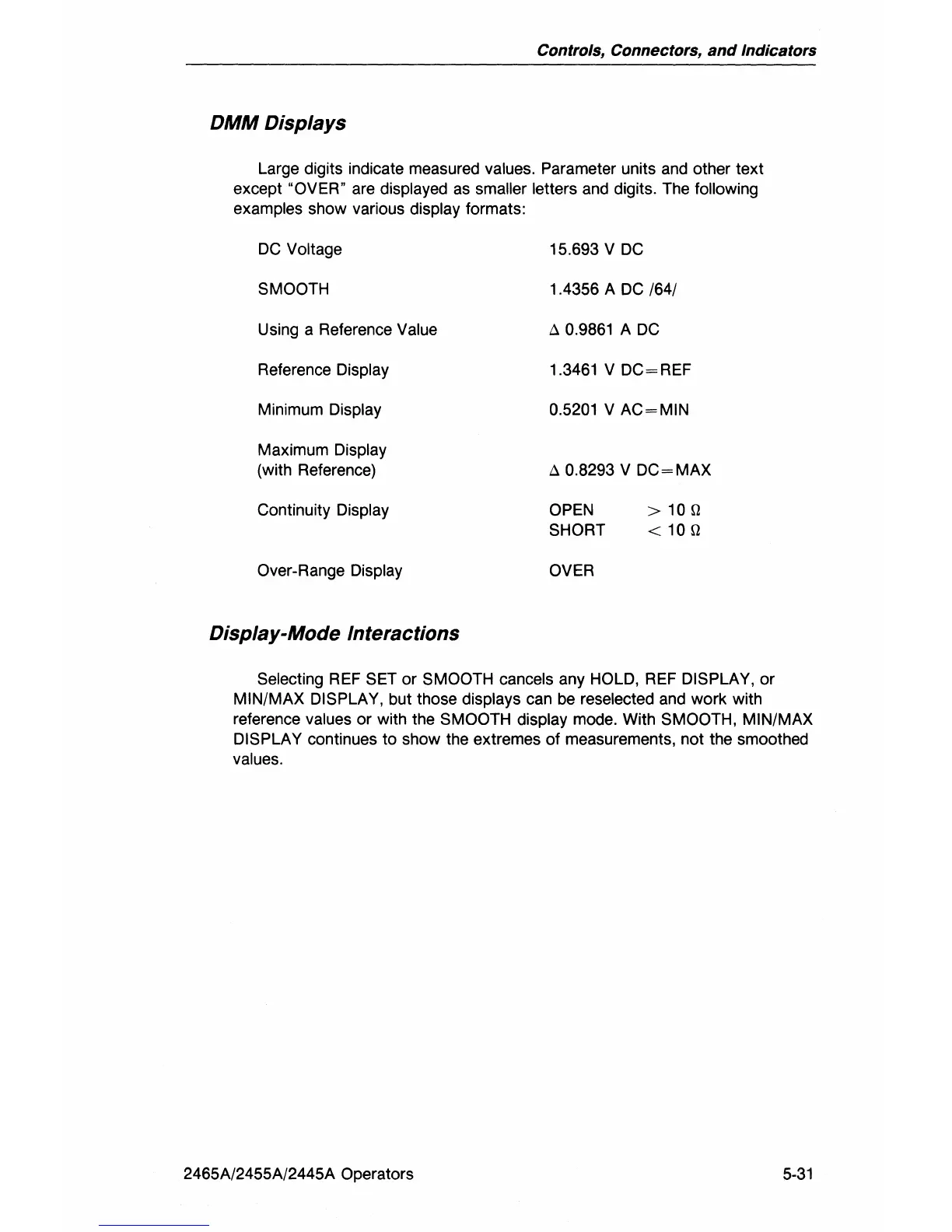

DMM
Displays
Large digits indicate measured values. Parameter units and other text
except
"OVER" are displayed
as
smaller letters and digits. The following
examples
show various display formats:
DC
Voltage
SMOOTH
Using a Reference Value
Reference Display
Minimum Display
Maximum Display
(with Reference)
Continuity
Display
Over-Range Display
Display-Mode Interactions
15.693 V
DC
1 .4356 A
DC
/64/
Ll
0.9861 A
DC
1.3461 V
DC=REF
0.5201 V
AC=MIN
Ll
0.8293 V
DC
= MAX
OPEN
SHORT
OVER
> 10 Q
< 10 Q
Selecting REF SET or SMOOTH cancels any HOLD, REF DISPLAY, or
MIN/MAX DISPLAY, but those displays can be reselected and work with
reference
values or with the SMOOTH display mode. With SMOOTH, MIN/MAX
DISPLA
Y continues to show the extremes of measurements, not the smoothed
values.
2465A/2455A/2445A Operators
5-31
