General Information
LINE FUSE
POWER CORD
RECEPTACLE
LINE SELECTOR
SWITCH
6014-01

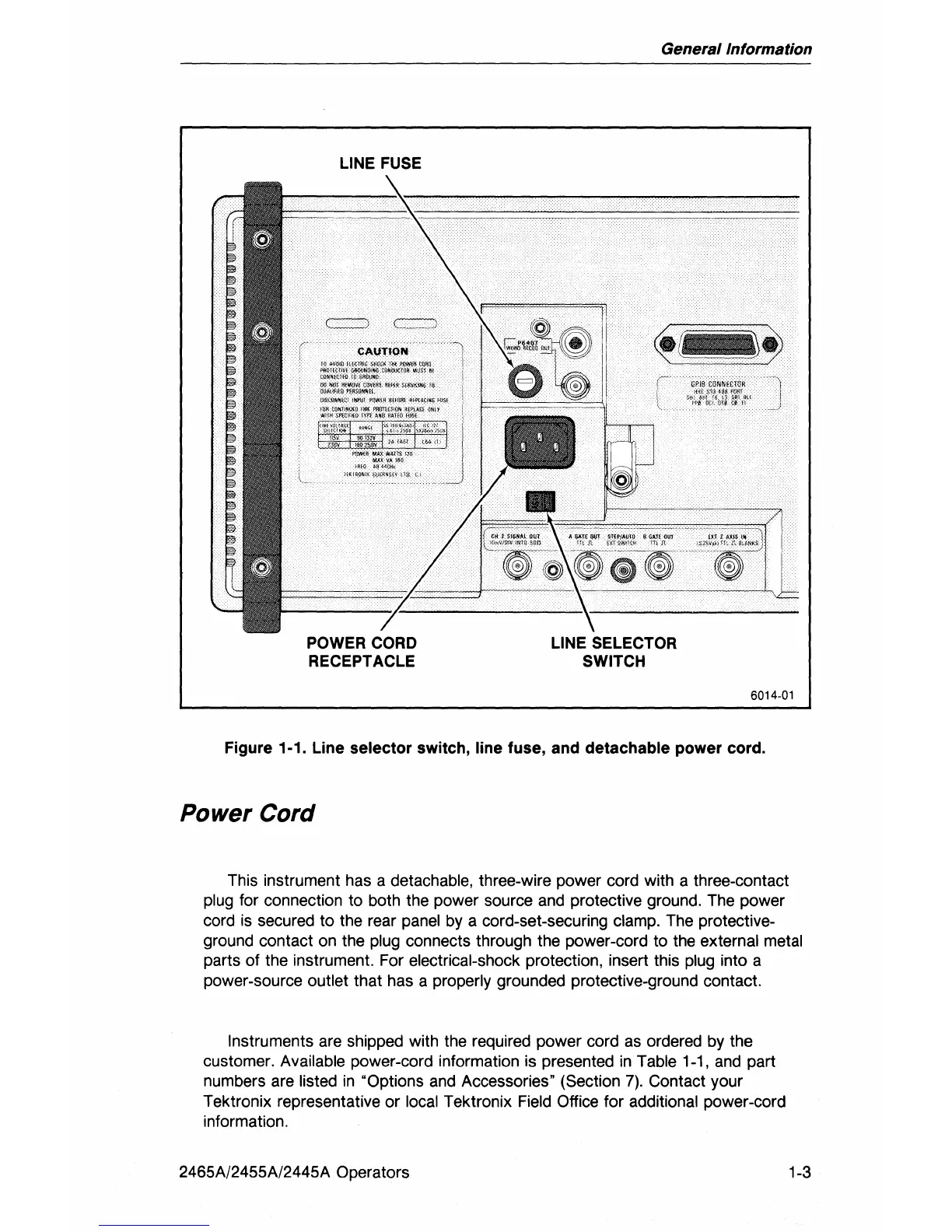

Figure 1-1. Line selector switch, line fuse, and detachable power cord.
Power Cord
This instrument has a detachable, three-wire power cord with a three-contact
plug for connection to both the power source and protective ground. The power
cord
is
secured to the rear panel
by
a cord-set-securing clamp. The protective-
ground contact on the
plug connects through the power-cord to the external metal
parts of the instrument. For electrical-shock protection, insert this plug into a
power-source
outlet that has a properly grounded protective-ground contact.
Instruments are shipped with the required power cord
as
ordered by the
customer.
Available power-cord information is presented
in
Table 1-1, and part
numbers are
listed
in
"Options and Accessories" (Section
7).
Contact your
Tektronix representative or
local Tektronix Field Office for additional power-cord
information.
2465A/2455A/2445A Operators
1-3
