Operation

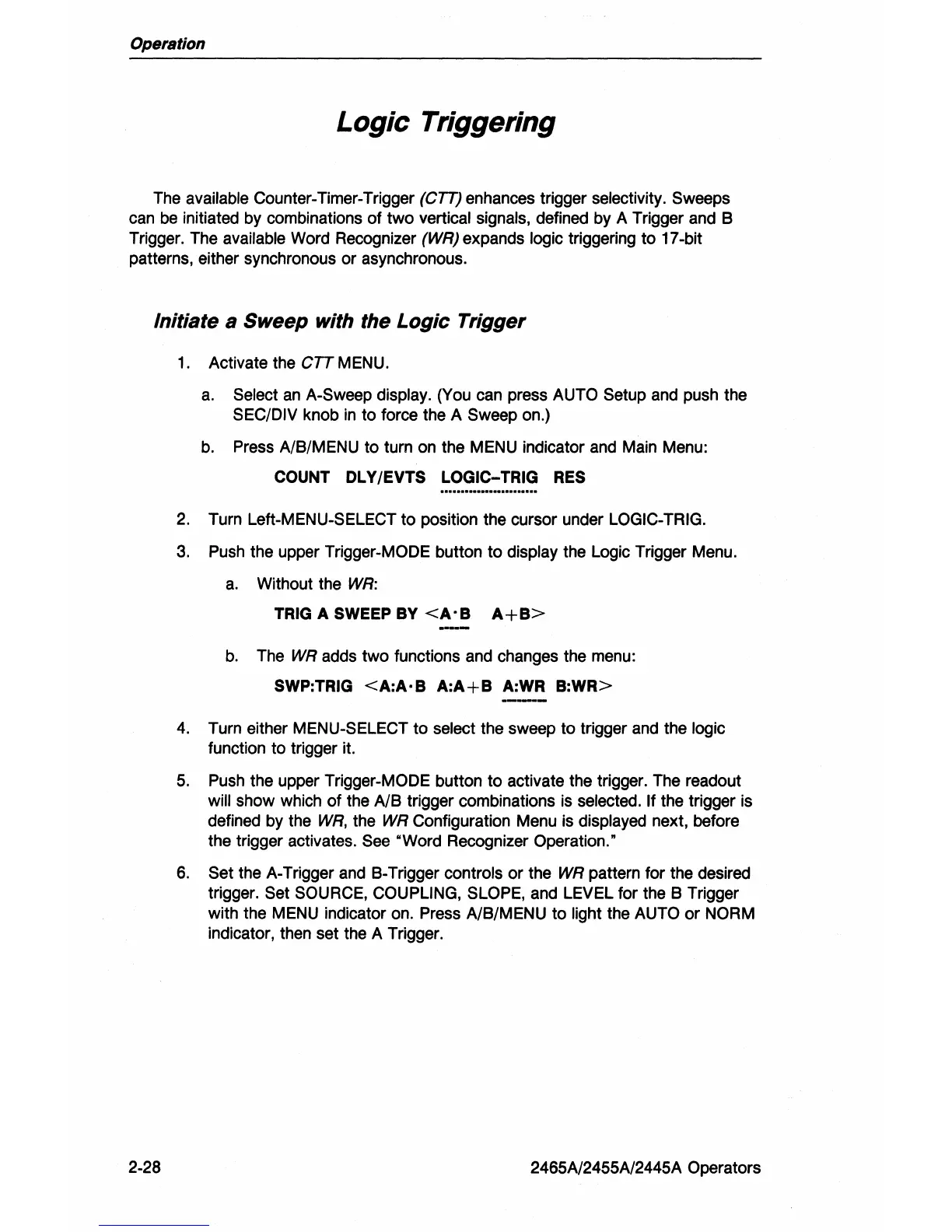

Logic Triggering
The available Counter-Timer-Trigger (CIT) enhances trigger selectivity. Sweeps
can be initiated by combinations of two vertical signals, defined by A Trigger and B
Trigger. The available Word Recognizer (WR) expands logic triggering to 17 -bit
patterns, either synchronous or asynchronous.
Initiate a Sweep with the Logic Trigger
2-28
1. Activate the CIT MENU.
a. Select an A-Sweep display. (You can press AUTO Setup and push the
SEC/DIV knob in to force the A Sweep on.)
b. Press A/B/MENU to turn on the MENU indicator and Main Menu:
COUNT DL Y /EVTS LOGIC-TRIG RES
2. Turn Left-MENU-SELECT to position the cursor under LOGIC-TRIG.
3. Push the upper Trigger-MODE button to display the Logic Trigger Menu.
a. Without the WR:
TRIG A SWEEP BY <A·B A+B>
b. The WR adds two functions and changes the menu:
SWP:TRIG <A:A·B A:A+B A:WR B:WR>
4. Turn either MENU-SELECT to select the sweep to trigger and the logic
function to trigger it.
5. Push the upper Trigger-MODE button to activate the trigger. The readout
will show which of the A/B trigger combinations is selected. If the trigger is
defined by the WR, the WR Configuration Menu is displayed next, before
the trigger activates. See 'Word Recognizer Operation."
6. Set the A-Trigger and B-Trigger controls or the WR pattern for the desired
trigger. Set SOURCE, COUPLING, SLOPE, and LEVEL for the B Trigger
with the MENU indicator on. Press NB/MENU to light the AUTO or NORM
indicator, then set the A Trigger.
2465A/2455A/2445A Operators
