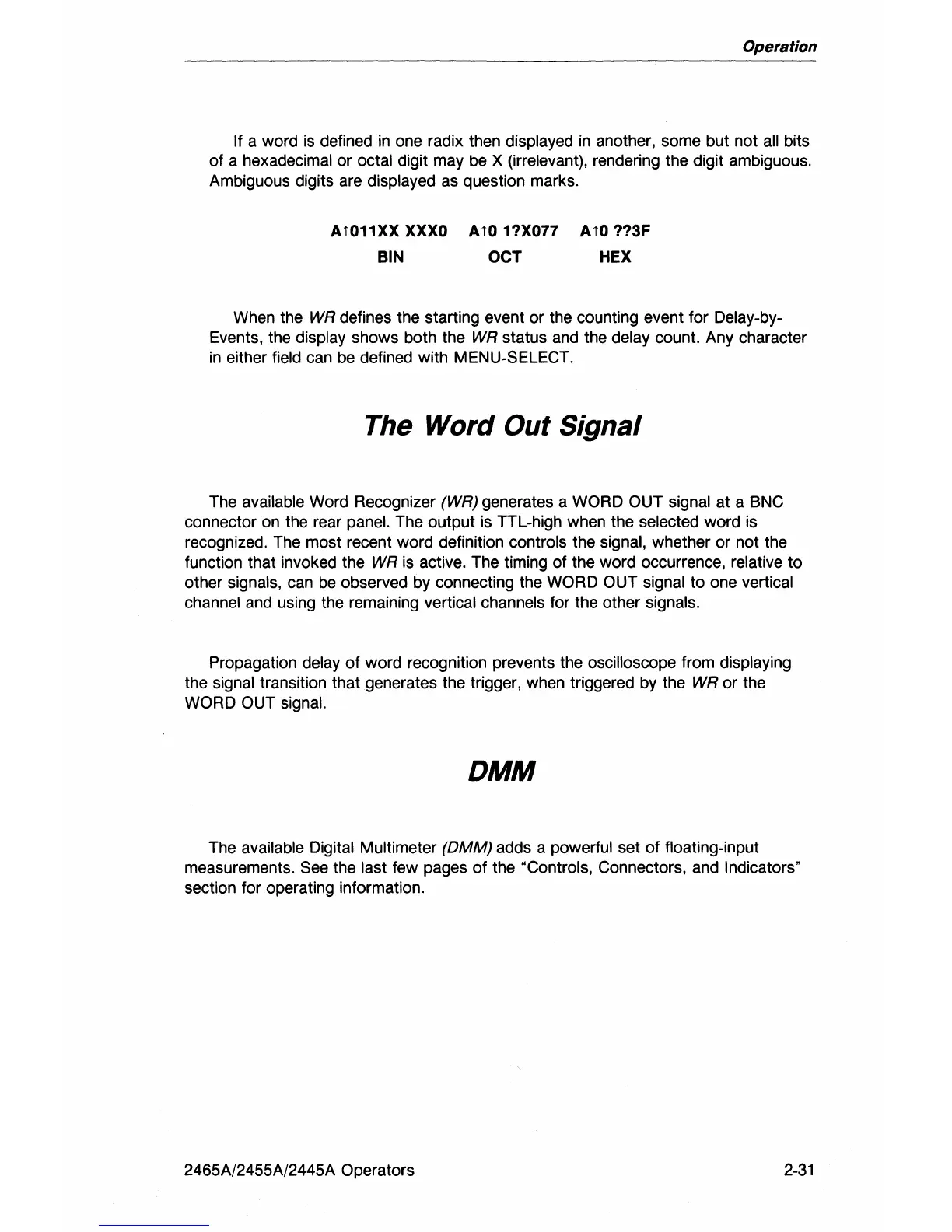

Operation
If a word is defined in one radix then displayed in another, some but not all bits
of a
hexadecimal or octal digit may be X (irrelevant), rendering the digit ambiguous.
Ambiguous digits are
displayed as question marks.
AT011XX XXXO ATO 1?X077
BIN OCT
ATO ??3F
HEX
When the WR defines the starting event or the counting event for Delay-by-
Events, the display shows both the WR status and the delay count. Any character
in either field can be defined with MENU-SELECT.
The Word Out Signal
The available Word Recognizer (WR) generates a WORD OUT signal at a BNC
connector on the rear
panel. The output is TTL-high when the selected word is
recognized. The most recent word definition
controls the signal, whether or not the
function that invoked the
WR is active. The timing of the word occurrence, relative to
other
signals, can be observed by connecting the WORD OUT signal to one vertical
channel
and using the remaining vertical channels for the other signals.
Propagation delay
of word recognition prevents the oscilloscope from displaying
the signal transition that generates the trigger, when triggered by the WR or the
WORD OUT signal.
DMM
The available Digital Multimeter (OMM) adds a powerful set of floating-input
measurements. See the last few pages of the ·Controls, Connectors, and Indicators"
section for operating information.
2465A/2455A/2445A Operators
2-31
