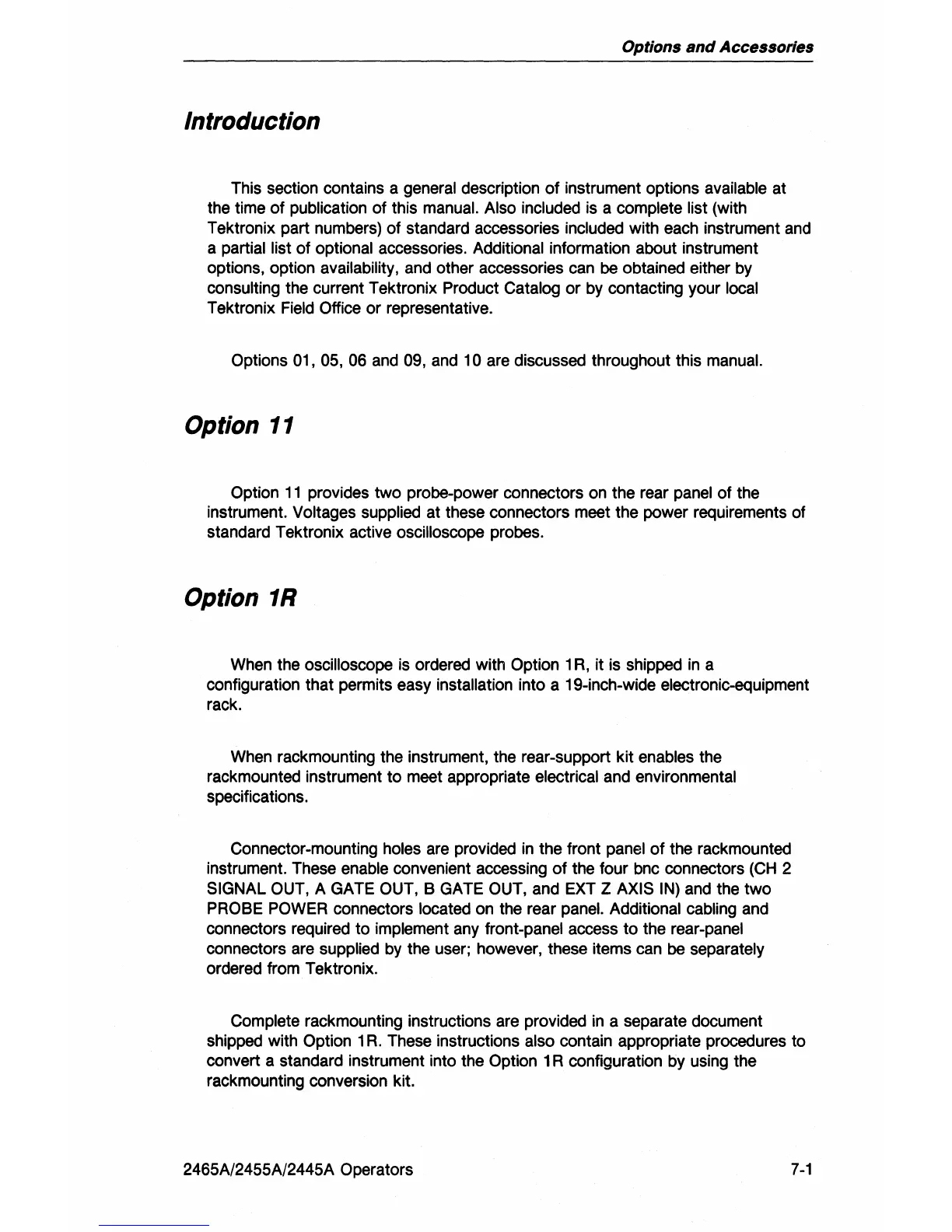

Options
and
Accessories
Introduction
This section contains a general description
of
instrument options available at
the time
of
publication of this manual. Also included
is
a complete list (with
Tektronix part numbers) of standard accessories included with each instrument and
a partial
list of optional accessories. Additional information about instrument
options, option availability, and other accessories can be obtained either by
consulting the current Tektronix Product Catalog
or
by contacting your local
Tektronix Field Office
or
representative.
Options
01, 05, 06 and 09, and 10 are discussed throughout this manual.
Option
11
Option
11
provides
two
probe-power connectors on the rear panel of the
instrument. Voltages supplied at these connectors meet the power requirements of
standard Tektronix active oscilloscope probes.
Option
1R
When the oscilloscope
is
ordered with Option 1
R,
it is shipped
in
a
configuration that permits easy installation into a 19-inch-wide electronic-equipment
rack.
When rack mounting the instrument, the rear-support kit enables the
rackmounted instrument
to
meet appropriate electrical and environmental
specifications.
Connector-mounting
holes are provided
in
the front panel
of
the rackmounted
instrument. These enable convenient accessing
of
the four bnc connectors
(CH
2
SIGNAL OUT, A GATE OUT, B GATE OUT, and EXT Z AXIS
IN)
and the
two
PROBE POWER connectors located on the rear panel. Additional cabling and
connectors required to implement any front-panel access
to
the rear-panel
connectors are supplied by the user; however, these items can be separately
ordered from Tektronix.
Complete rackmounting instructions are provided
in
a separate document
shipped with
Option 1
R.
These instructions also contain appropriate procedures to
convert a standard instrument into the
Option 1 R configuration by using the
rackmounting conversion kit.
2465A/2455A/2445A Operators
7-1
