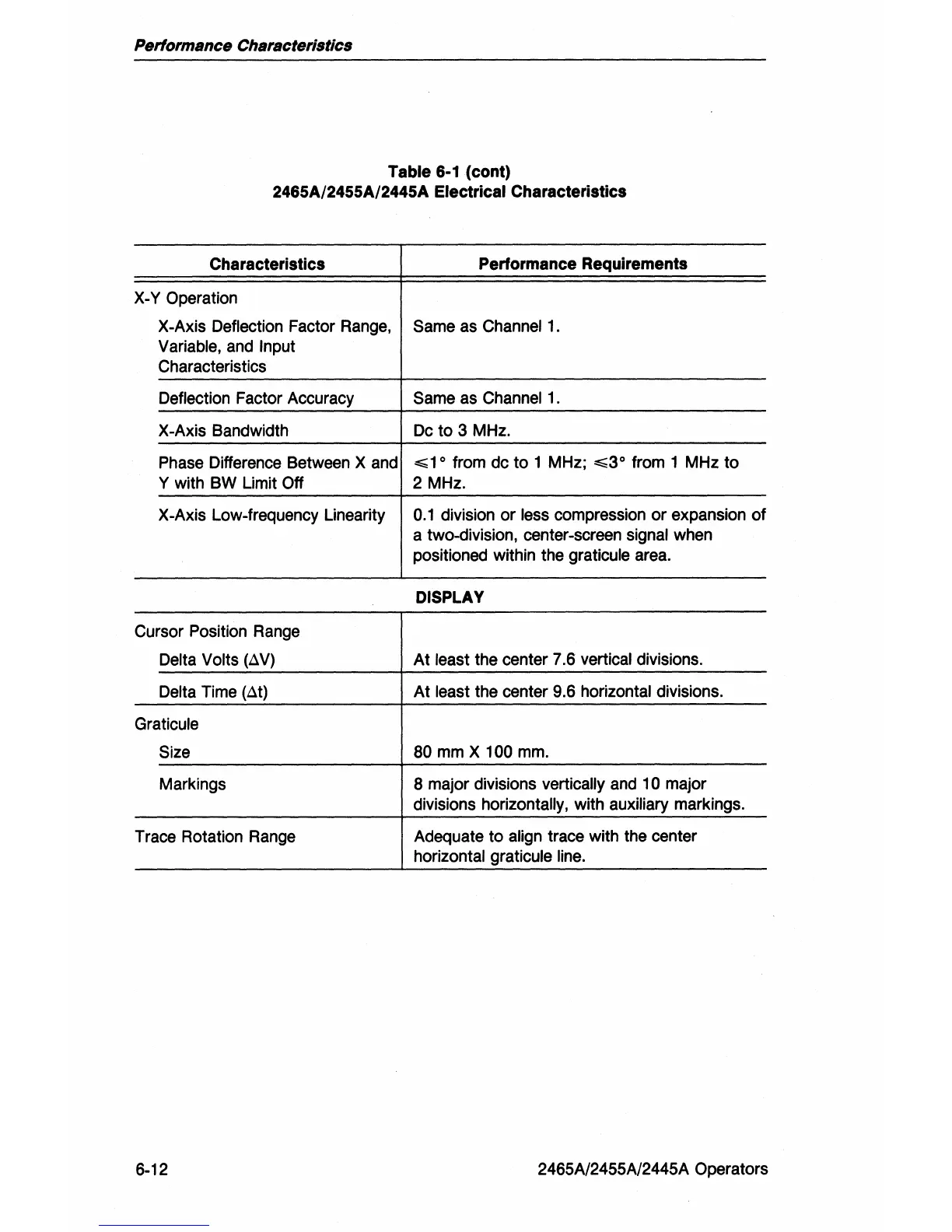

Performance Characteristics
Table 6-1 (cont)
2465A/2455A/2445A
Electrical Characteristics
Characteristics
Performance Requirements
x-
Y Operation
X-Axis
Deflection Factor Range, Same
as
Channel
1.
Variable,
and
Input
Characteristics
Deflection Factor Accuracy Same
as
Channel 1.
X-Axis Bandwidth
Dc
to 3 MHz.
Phase Difference Between X
and
,,;;;1
0
from dc to 1 MHz;
,,;;;3
0
from 1 MHz to
Y with BW Limit Off 2 MHz.
X-Axis Low-frequency Linearity
0.1
division or less compression
or
expansion of
a two-division, center-screen
signal when
positioned within the
graticule area.
Cursor Position Range
Delta Volts
(~V)
Delta Time
(~t)
Graticule
Size
Markings
Trace Rotation Range
6-12
DISPLAY
At least the center 7.6 vertical divisions.
At
least the center 9.6 horizontal divisions.
80
mm
X 100
mm.
8 major divisions vertically
and
10 major
divisions
horizontally, with auxiliary markings.
Adequate to
align trace with the center
horizontal graticule line.
2465A/2455A/2445A Operators
