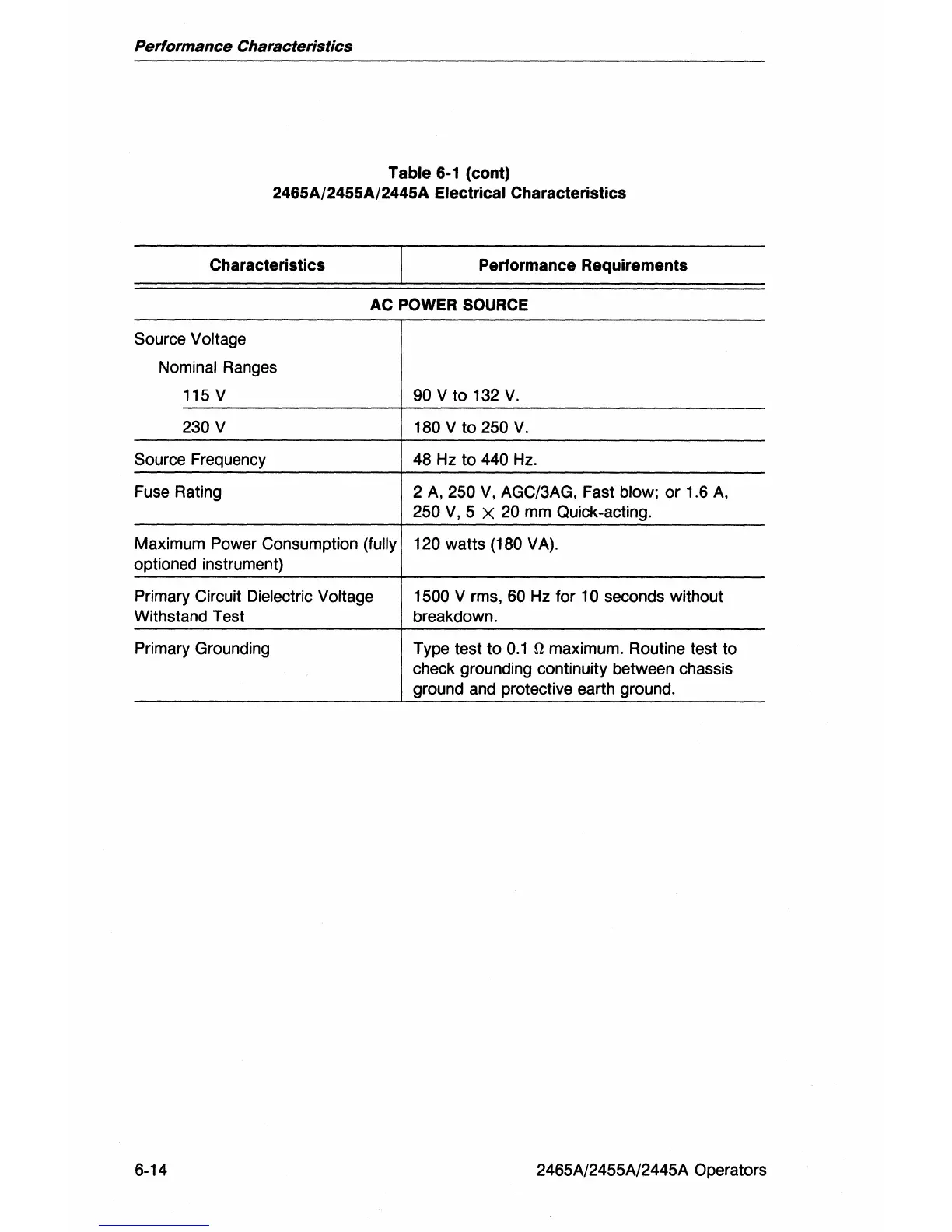

Performance Characteristics
Table
6-1
(cont)
2465A/2455A/2445A
Electrical Characteristics
Characteristics Performance Requirements
AC
POWER
SOURCE
Source Voltage
Nominal
Ranges
115 V
90 V
to
132
V.
230 V 180 V
to
250
V.
Source Frequency 48 Hz
to
440
Hz.
Fuse Rating 2
A,
250
V,
AGC/3AG, Fast blow; or 1.6
A,
250
V,
5 X 20 mm Quick-acting.
Maximum Power Consumption
(fully 120 watts (180 VA).
optioned instrument)
Primary Circuit
Dielectric Voltage 1500 V rms,
60
Hz for 10 seconds without
Withstand Test breakdown.
Primary Grounding Type test to
0.1
Q maximum. Routine test to
check grounding continuity between chassis
ground and protective earth ground.
6-14 2465A/2455A/2445A Operators
