Performance Characteristics

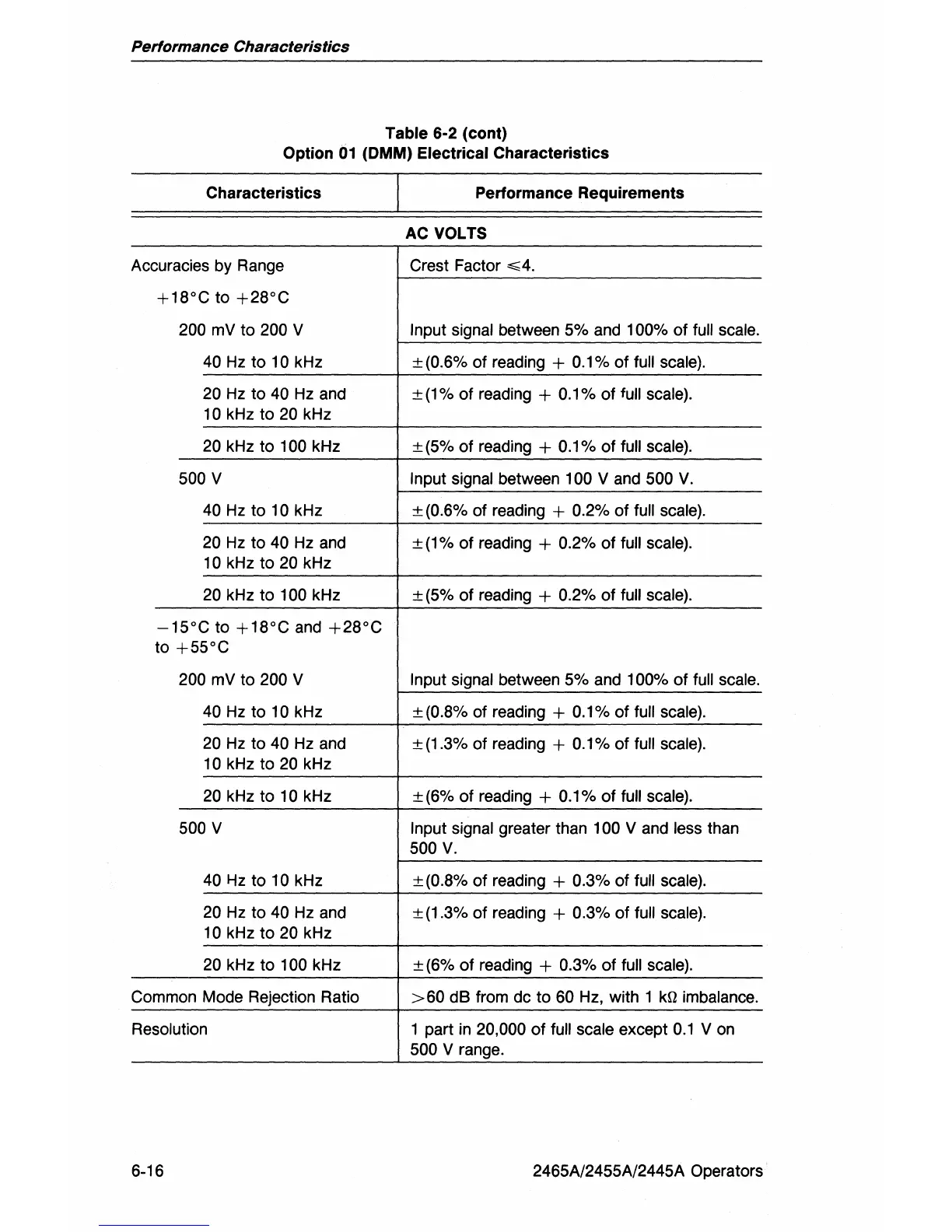

Table 6-2 (cont)
Option
01
(OMM) Electrical Characteristics
Characteristics Performance Requirements
AC
VOLTS
Accuracies by Range Crest Factor
,,;;;4.
+ 18°C to
+28°C
200
mV
to 200 V Input signal between 5% and 100% of full scale.
40
Hz
to 10 kHz ± (0.6% of reading +
0.1
%
of
full scale).
20
Hz
to
40
Hz
and
±
(1
% of reading +
0.1
% of full scale).
10
kHz
to
20
kHz
20
kHz to 100 kHz ± (5% of reading +
0.1
%
of
full scale).
500 V Input signal between 100 V and 500
V.
40
Hz
to 10 kHz ±(0.6% of reading + 0.2% of full scale).
20
Hz
to 40
Hz
and
±
(1
% of reading + 0.2%
of
full scale).
10 kHz to
20
kHz
20
kHz to 100 kHz ±(S% of reading + 0.2%
of
full scale).
-15°C
to
+18°C
and
+28°C
to +SsoC
200
mV
to 200 V Input signal between 5% and 100% of full scale.
40
Hz
to 10 kHz ± (0.8% of reading +
0.1
% of full scale).
20
Hz
to 40
Hz
and
± (1.3% of reading +
0.1
% of full scale).
10 kHz to
20
kHz
20
kHz to 10 kHz ± (6% of reading +
0.1
%
of
full scale).
500 V Input signal greater than 100 V
and
less than
500
V.
40
Hz
to 10 kHz
±(0.8% of reading + 0.3% of full scale).
20
Hz
to
40
Hz and ± (1.3% of reading + 0.3% of full scale).
10 kHz to 20 kHz
20
kHz to 100 kHz
± (6%
of
reading + 0.3%
of
full scale).
Common Mode Rejection Ratio
>60
dB from
de
to
60
Hz,
with 1
kfl
imbalance.
Resolution 1 part
in
20,000 of full scale except
0.1
V
on
500 V range.
6-16 246SA/24SSA/244SA Operators
