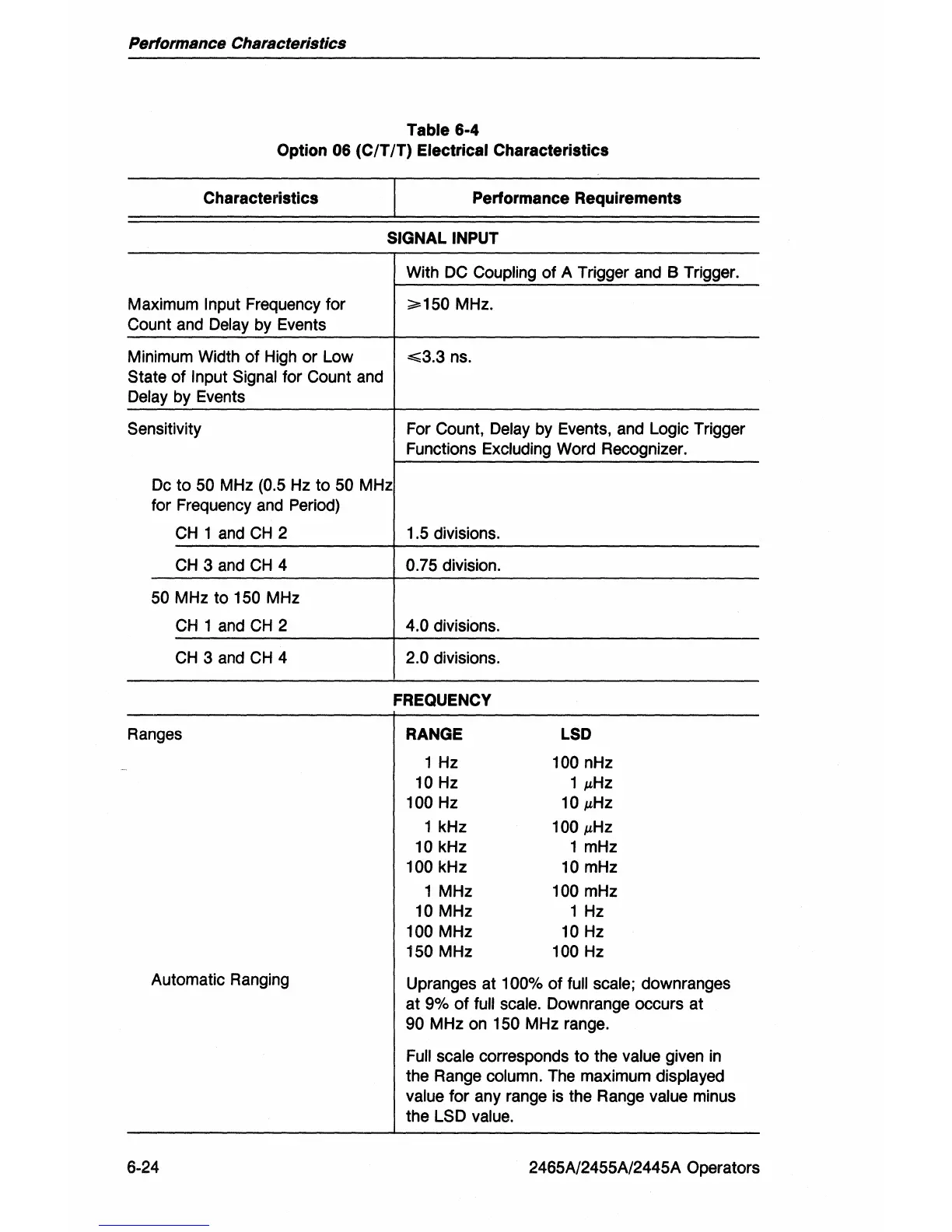

Performance Characteristics
Table 6-4
Option 06
(C/T/T)
Electrical Characteristics
Characteristics Performance Requirements
SIGNAL INPUT
Maximum
Input Frequency for
Count and Delay by Events
Minimum Width
of
High or Low
State
of
Input Signal for Count and
Delay by Events
Sensitivity
Dc
to 50 MHz (0.5 Hz
to
50 MHz
for Frequency and Period)
CH
1 and
CH
2
CH
3 and
CH
4
50 MHz to 150 MHz
CH
1 and
CH
2
CH
3 and
CH
4
Ranges
Automatic Ranging
6-24
With
DC
Coupling
of
A Trigger and B Trigger.
;;;.,150
MHz.
.,;;;3.3
ns.
For
Count, Delay by Events, and Logic Trigger
Functions Excluding Word Recognizer.
1.5 divisions.
0.75 division.
4.0 divisions.
2.0 divisions.
FREQUENCY
RANGE LSD
1 Hz 100 nHz
10 Hz
1
JLHz
100 Hz
10
JLHz
1 kHz
100
JLHz
10 kHz 1 mHz
100 kHz 10 mHz
1 MHz
100 mHz
10 MHz 1 Hz
100 MHz 10 Hz
150 MHz 100 Hz
Upranges at
100%
of
full scale; downranges
at 9%
of
full scale. Downrange occurs at
90 MHz on 150 MHz range.
Full
scale corresponds
to
the value given
in
the Range column. The maximum displayed
value for any range
is
the Range value minus
the
LSD value.
2465A/2455A/2445A Operators
