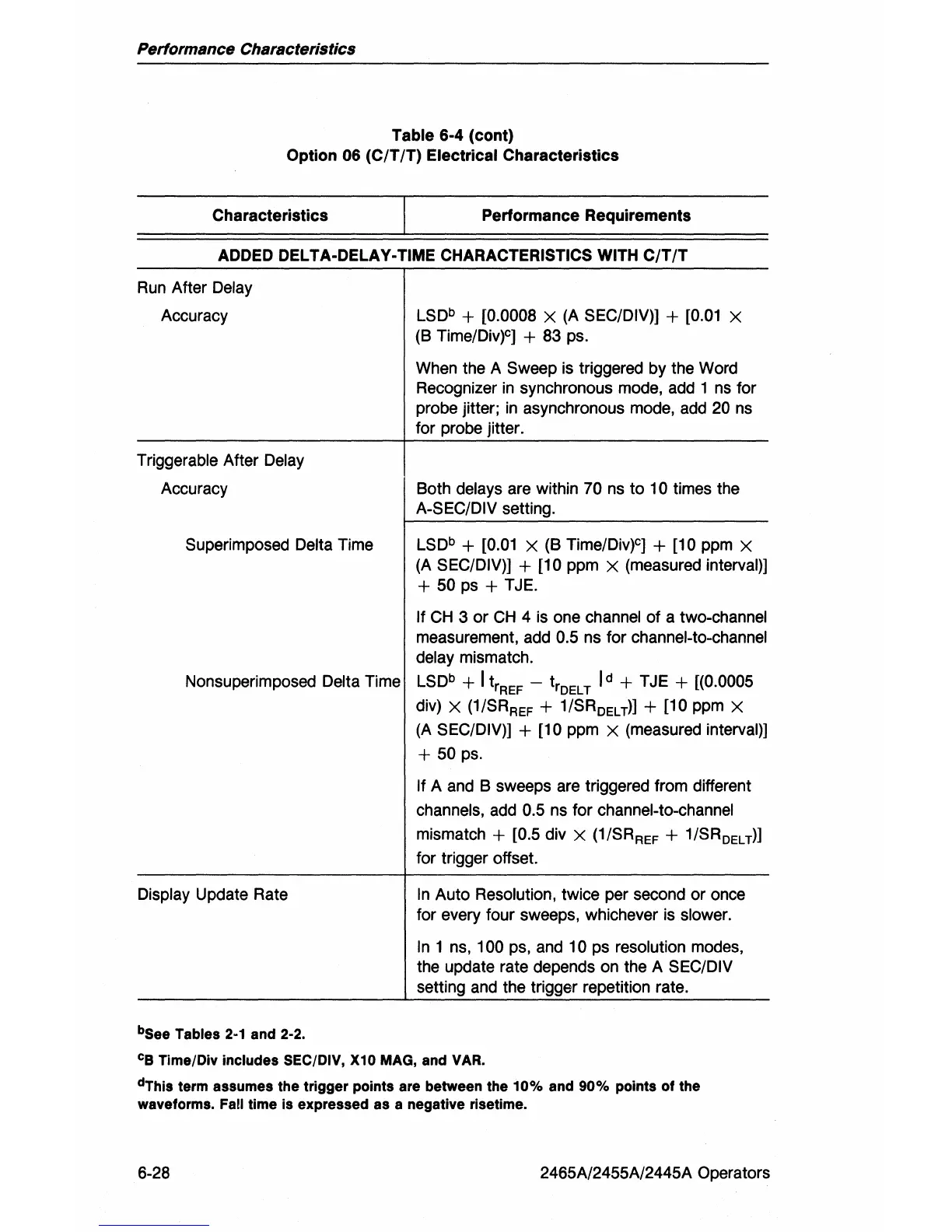

Performance Characteristics
Table 6-4 (cont)
Option 06 (C/T/T) Electrical Characteristics
Characteristics Performance Requirements
ADDED
DELTA-DELAY-TIME CHARACTERISTICS
WITH
C/T/T
Run
After Delay
Accuracy
Triggerable After
Delay
Accuracy
Superimposed
Delta Time
LSDb + [0.0008 X (A SEC/DIV)] + [0.01 X
(B Time/Div)C]
+ 83 ps.
When the A Sweep
is
triggered by the Word
Recognizer
in
synchronous mode, add 1 ns for
probe jitter;
in
asynchronous mode, add 20 ns
for probe jitter.
Both
delays are within 70 ns
to
10 times the
A-SEC/DIV setting.
LSDb + [0.01 X (B Time/Div)C] + [10 ppm X
(A
SEC/DIV)] + [10 ppm X (measured interval)]
+ 50 ps + TJE.
If
CH
3
or
CH
4 is one channel
of
a two-channel
measurement, add
0.5 ns for channel-to-channel
delay mismatch.
Nonsuperimposed
Delta Time LSDb + I
trREF
-
trOEL
Tid
+ T JE + [(0.0005
div) X
(1/SRREF
+ 1/SR
OELT
)] + [10 ppm X
Display Update Rate
bS
ee
Tables
2·1
and 2·2.
(A
SEC/DIV)] + [10 ppm X (measured interval)]
+ 50 ps.
If A and B sweeps are triggered from different
channels, add
0.5 ns for channel-to-channel
mismatch
+ [0.5 div X
(1/SRREF
+ 1/SR
oELT
)]
for trigger offset.
In
Auto Resolution, twice per second
or
once
for every four sweeps, whichever
is
slower.
In
1 ns, 100 ps, and 10 ps resolution modes,
the update rate depends on the A
SEC/DIV
setting and the trigger repetition rate.
cB
Time/Div includes SEC/DIV,
X10
MAG, and VAR.
dThis term assumes the trigger pOints are between the 10% and 90% points
of
the
waveforms.
Fall time is expressed as a negative risetime.
6-28 2465A/2455A/2445A Operators
