Performance Characteristics

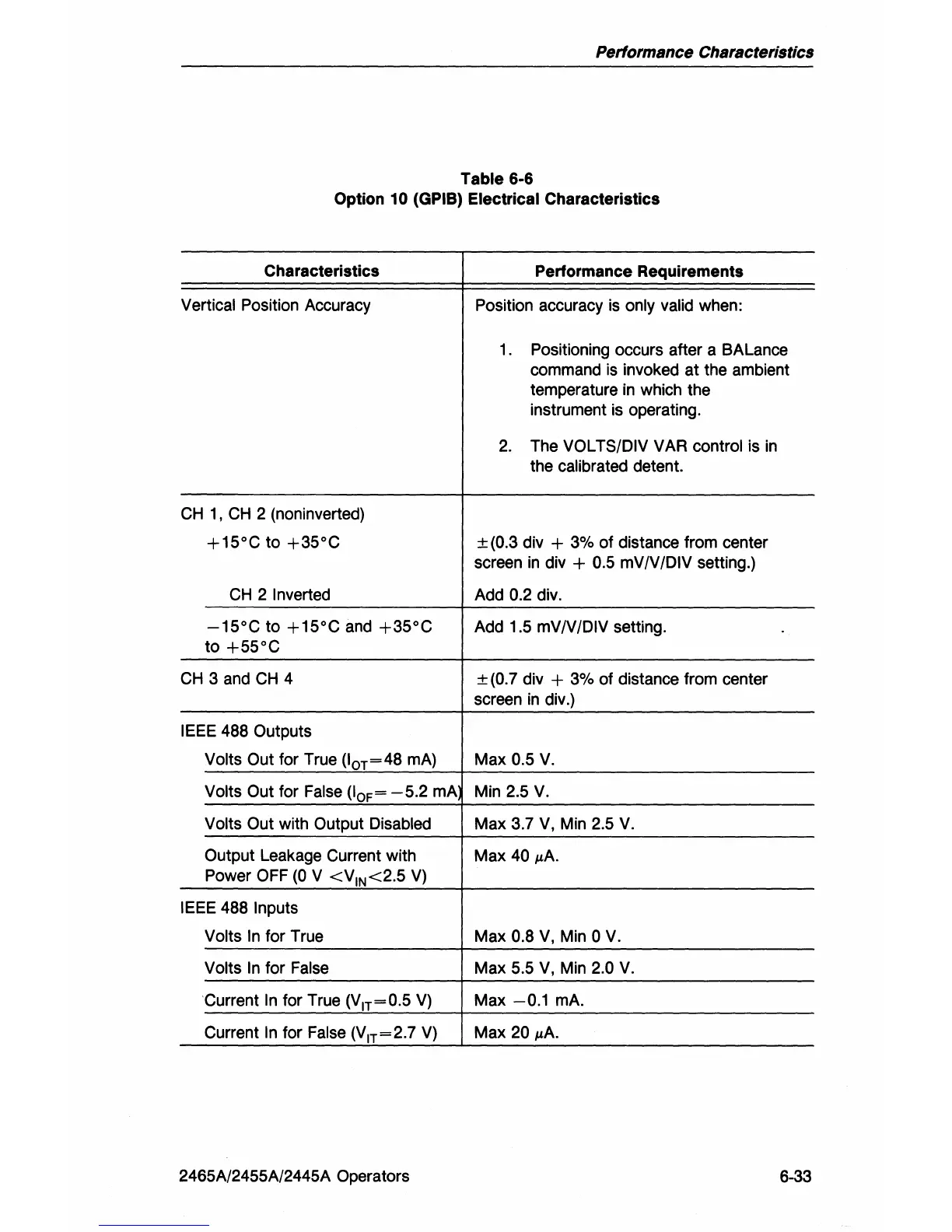

Table 6-6
Option 10 (GPIB) Electrical Characteristics
Characteristics
Performance Requirements
Vertical Position Accuracy Position accuracy
is
only valid when:
1.
Positioning occurs after a BALance
command
is
invoked at the ambient
temperature
in
which the
instrument
is
operating.
2.
The VOL TS/DIV VAR control is
in
the calibrated detent.
CH
1,
CH
2 (noninverted)
+15°C
to
+35°C
± (0.3 div + 3% of distance from center
screen
in
div + 0.5 mV/V/DIV setting.)
CH
2 Inverted
Add 0.2 div.
-15°C
to
+15°C
and
+35°C
Add 1.5 mV/V/DIV setting.
to
+55°C
CH
3
and
CH
4
±(0.7 div + 3% of distance from center
screen
in
div.)
IEEE
488 Outputs
Volts Out for True (loT=48 mAl Max 0.5
V.
Volts Out for
False
(loF=
-5.2
mA
Min 2.5
V.
Volts Out with Output Disabled Max 3.7
V,
Min
2.5
V.
Output Leakage Current with Max
40
pA
Power
OFF
(0
V
<VIN<2.5
V)
IEEE
488 Inputs
Volts
In
for True
Max
0.8
V,
Min
0
V.
Volts
In
for
False
Max 5.5
V,
Min
2.0
V.
Current
In
for True
(V
1T
=0.5
V)
Max
-0.1
mA.
Current
In
for
False
(VIT=2.7
V)
Max
20
/lA.
2465A/2455A/2445A Operators
6-33
