20 MHz BW
LIMIT Button
Controls, Connectors,
and
Indicators
Limits the bandwidth
of
the vertical deflection system to
20 MHz.
Full
vertical bandwidth
is
available when the
bandwidth
limit function
is
off. Neither the trigger
signals nor the output from the
CH
2
SIG
OUT
connector is affected by the 20 MHz BW LIMIT.
Refer
to
Figure 5-3 for the location of items 18 through 21.
6014-04

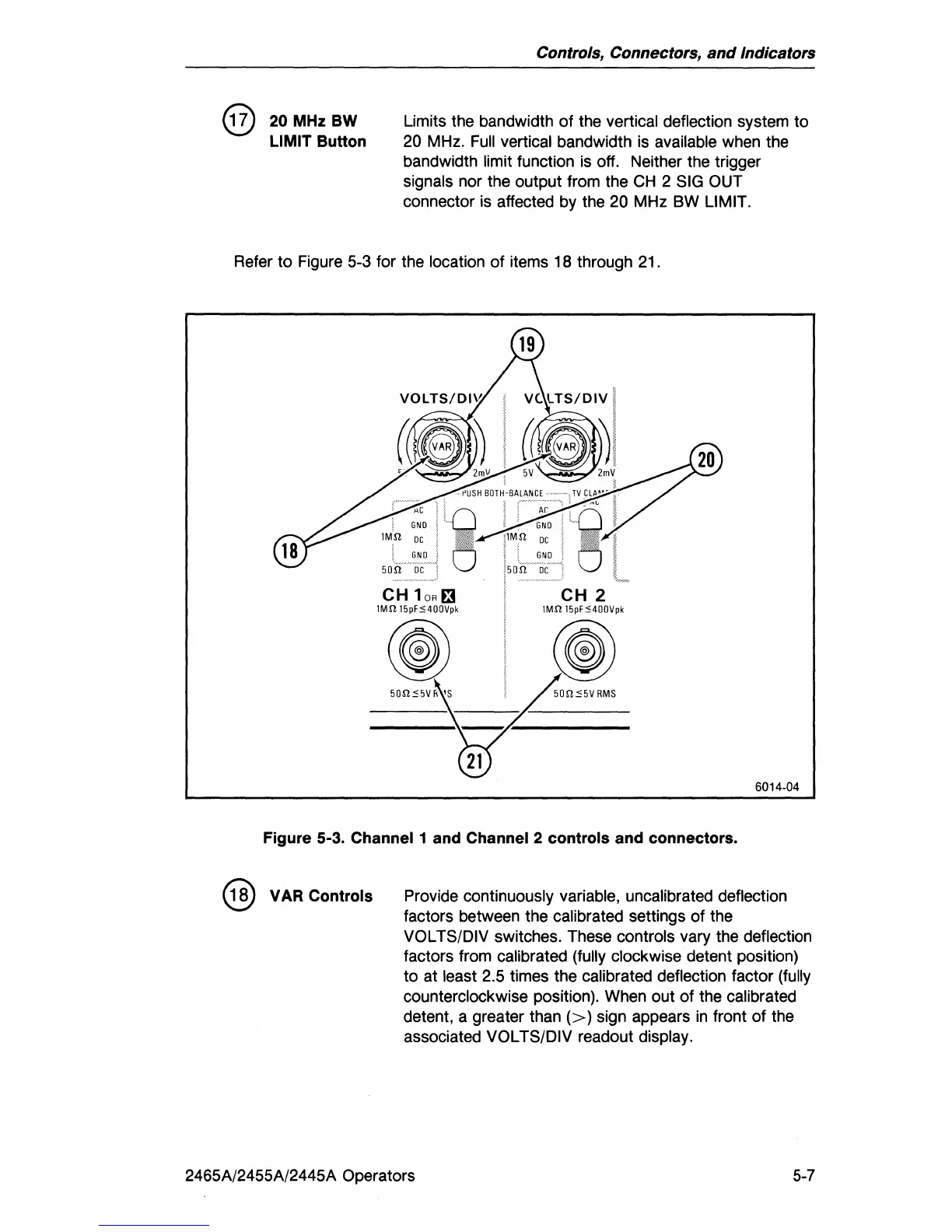

Figure 5-3. Channel 1 and Channel 2 controls and connectors_
@ VAR Controls Provide continuously variable, uncalibrated deflection
factors between the calibrated settings of the
VOL TS/DIV switches. These controls vary the deflection
factors from
calibrated (fully clockwise detent position)
to at
least 2.5 times the calibrated deflection factor (fully
counterclockwise position). When out of the calibrated
detent, a greater than
(»
sign appears
in
front of the
associated
VOLTS/DIV readout display.
2465A/2455A/2445A Operators
5-7
