Controls, Connectors,
and
Indicators
5-18
@ TRACK/INDEP
Button
Selects either the Tracking or Independent mode for the
~
REF
OR
DL Y POS control.
In
the Tracking mode,
rotating the
~
REF
OR
DL Y POS control changes both
delays
or
both cursors equally until the limit
of
either is
reached.
In
the Indep mode,
~
REF
OR
DL Y POS affects only the
reference delay
or
cursor.
In
either Tracking
or
Independent mode, the
~
control moves only the
~
cursor.
Refer to Figure 5-6 for the location
of
items 37 through 46.
®
6014-07

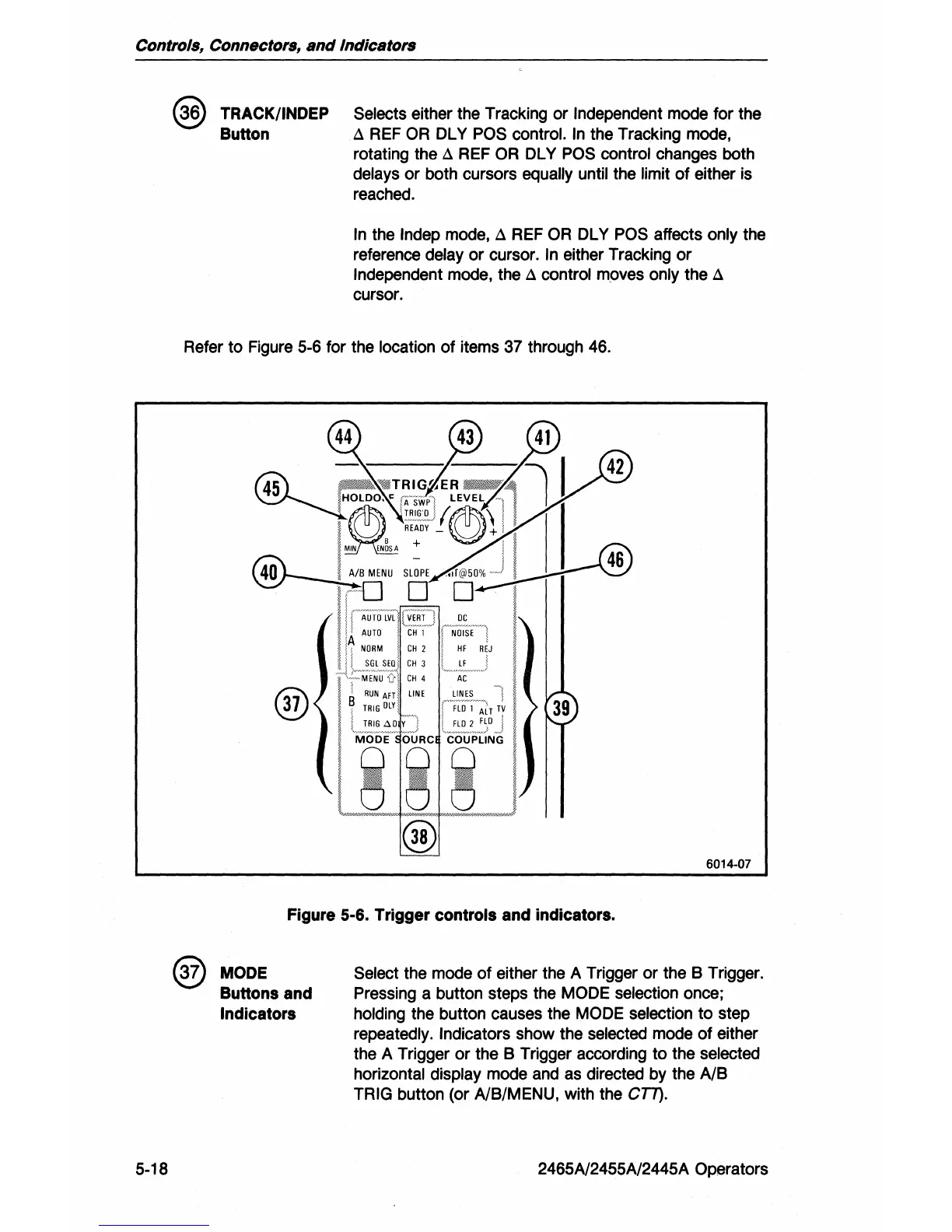

Figure 5-6. Trigger controls and indicators.
MODE
Buttons and
Indicators
Select the mode of either the A Trigger or the B Trigger.
Pressing a button steps the
MODE selection once;
holding the button causes the
MODE selection
to
step
repeatedly.
Indicators show the selected mode
of
either
the A Trigger or the B Trigger according
to
the selected
horizontal display mode and as directed by the A/B
TRIG button (or A/B/MENU, with the CT7).
2465N2455A/2445A Operators
