Adjustment procedures
31
AFG31000 Series Arbitrary Function Generator Service Manual
To adjust the trigger timing of two channels:
1. Connect the arbitrary function generator to the oscilloscope using a 50 Ω BNC coaxial cable.

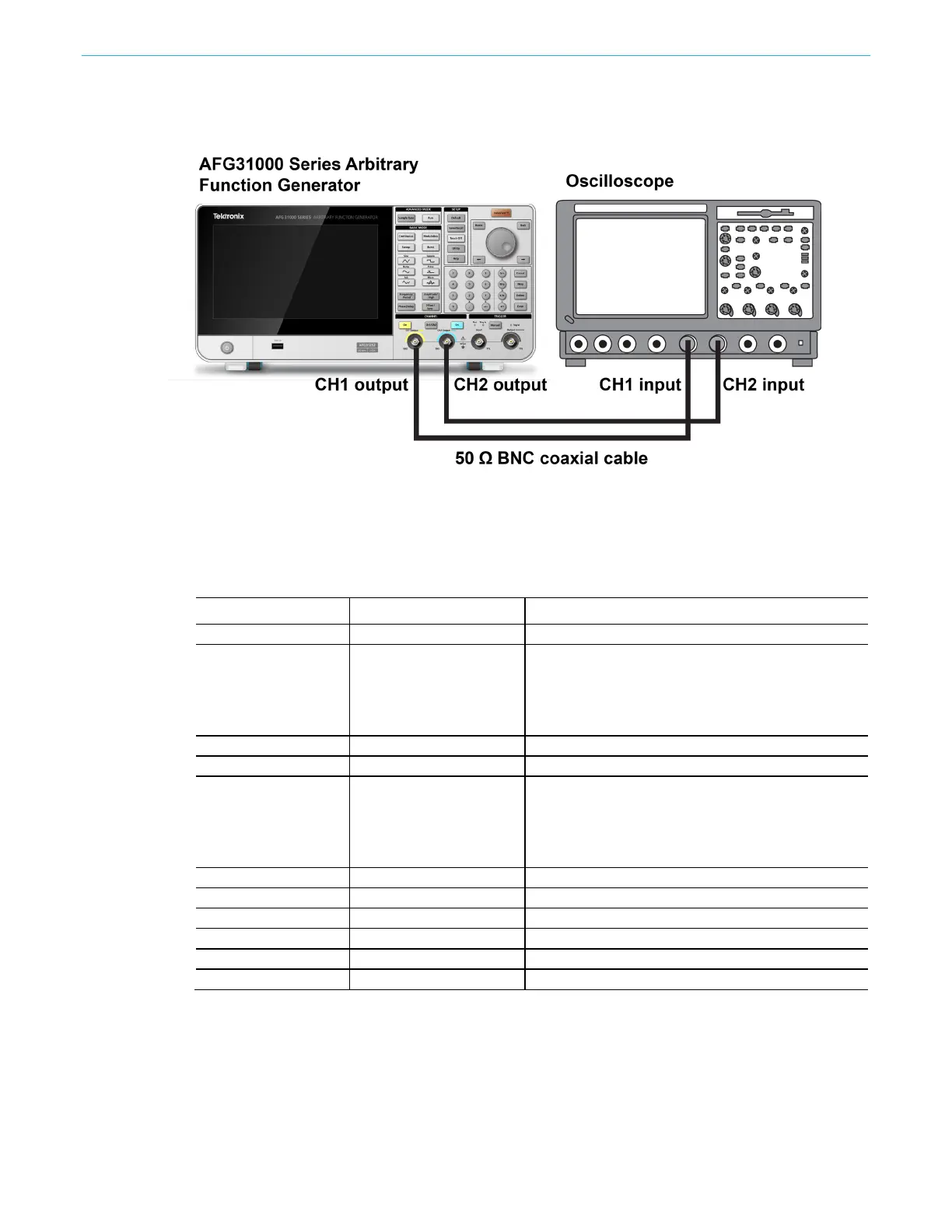

Figure 13: Trigger delay adjustment
2. Push the Default front-panel button and the OK menu button to recall the arbitrary function
generator default setup.
3. Set up the arbitrary function generator using the following steps.
Select menu Setting Operation
Function (CH1)
Pulse
Pulse (front)
Leading (CH1)
AFG31021/31022: 8.0 ns
AFG31051/31052: 6.0 ns
AFG31101/31102: 4.0 ns
AFG31151/31152: 3.0 ns
AFG31251/31252: 2.0 ns
Select leading (on the touchscreen)
Lead Delay (CH1)
0.00 ns
Delay (front)
Function (CH2)
Pulse
CH1/CH2 > Pulse (front)
Leading (CH2)
AFG31021/31022: 8.0 ns
AFG31051/31052: 6.0 ns
AFG31101/31102: 4.0 ns
AFG31151/31152: 3.0 ns
AFG31251/31252: 2.0 ns
Select leading (on the touchscreen)
Lead Delay (CH2)
0.00 ns
Delay (front)
Run Mode (CH2)
Burst
Burst (front)
Trigger Delay
0.0 ns
Select TrigDelay (on the touchscreen)
Run Mode (CH2)
Continuous
Continuous (front)
Channel 1 Output
On
On (front)
Channel 2 Output
On
On (front)
