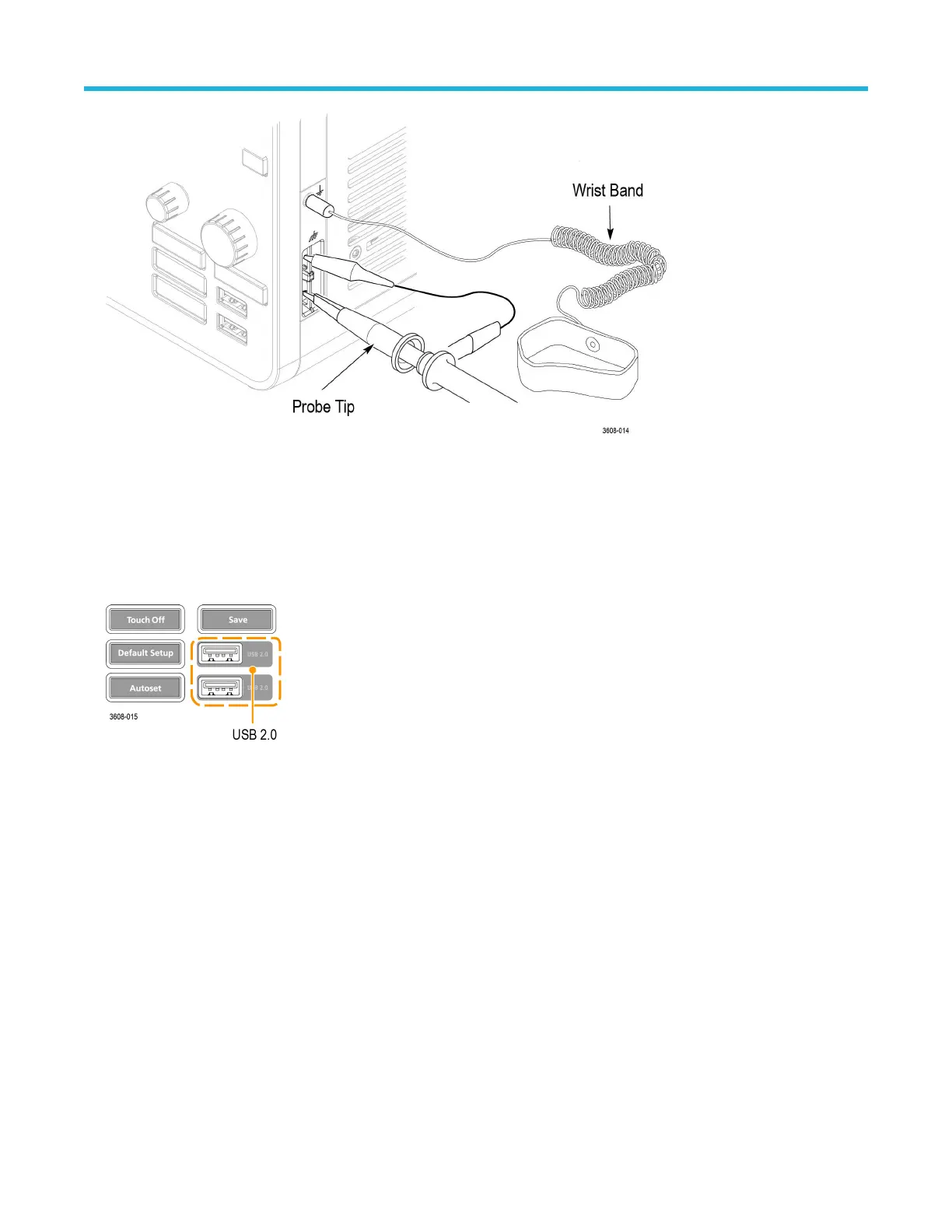

• The Ground and Probe Compensation connectors are located at the lower right side of the instrument, near the front panel. The
Ground connector (the small hole in the case) provides an electrically grounded (through a resistor) connection point to attach an
anti-static wrist strap to reduce electrostatic damage (ESD) while you handle or probe the DUT
.
• The Probe Compensation connections provide a ground connector (upper tab) and 1 kHz square wave source (lower tab) for
adjusting the high-frequency response of a passive probe (probe compensation). The oscilloscope uses this signal to automatically
compensate supported probes, including the ones that ship with the product. See Compensate TPP0250, TPP0500B, or TPP1000
probes on page 60.
8. USB Host ports (USB 2.0):
• USB ports are located at the lower right corner of the front panel and on the rear panel. Connect USB flash drives to which you can
save or recall data (such as instrument software updates, waveforms, settings, and screen captures) or connect peripheral devices
such as a mouse or keyboard.
9. Probe connectors:
Getting acquainted with your instrument
3 Series Mixed Domain Oscilloscope Printable Help 42
