4. Use the available fields to refine the measurement conditions. Displayed fields depend on the measurement. Selection changes take
ef
fect immediately. Selection changes can also change fields in other panels.
5. Tap the Help button on the menu title for more information on this menu's settings.
6. Tap outside the menu to close the menu.

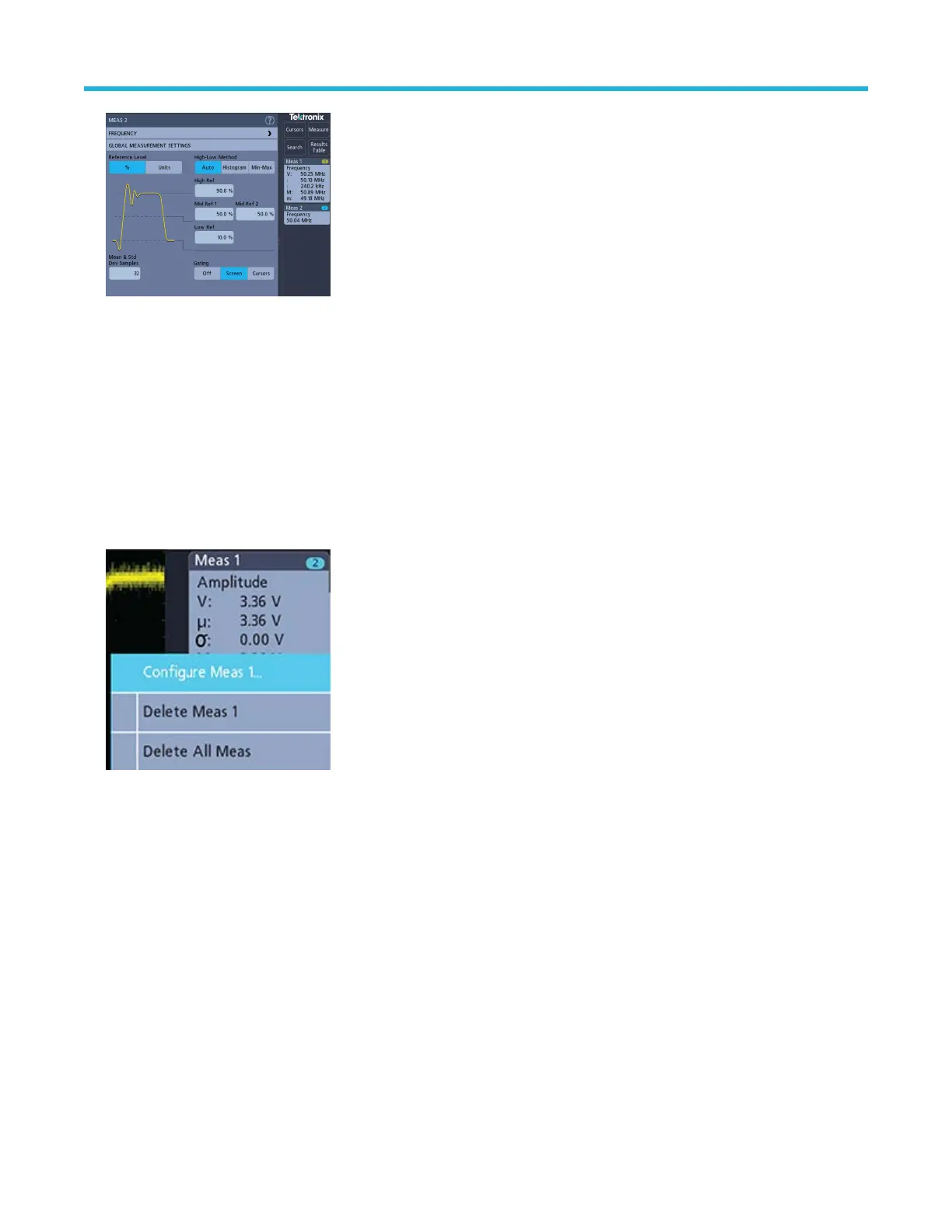

Delete a measurement or search badge
Use this procedure to remove a Measurement or Search badge from the Results bar.
Procedure
1. Touch and hold the Measurement or Search badge that you want to delete. The instrument opens a right-click menu.
2. Select Delete Meas or Delete Search to delete that badge from the Results bar.
3. Y
ou can also delete a Measurement or Search badge by dragging it off the display. You can use the mouse to drag and delete a badge.
Display an XY waveform
Use this procedure to display an XY waveform.
About this task
XY display mode displays the amplitude from one waveform against the amplitude from another.
Procedure
1. Double-tap the Acquisition badge.
The Acquisition configuration menu is displayed.
2. Tap XY Display to toggle the mode on or off.
Results
A data point from the first waveform specifies the horizontal location while the corresponding data point from the second waveform
specifies the vertical location for each displayed point.
Analog channel operating basics
3 Series Mixed Domain Oscilloscope Printable Help 75
