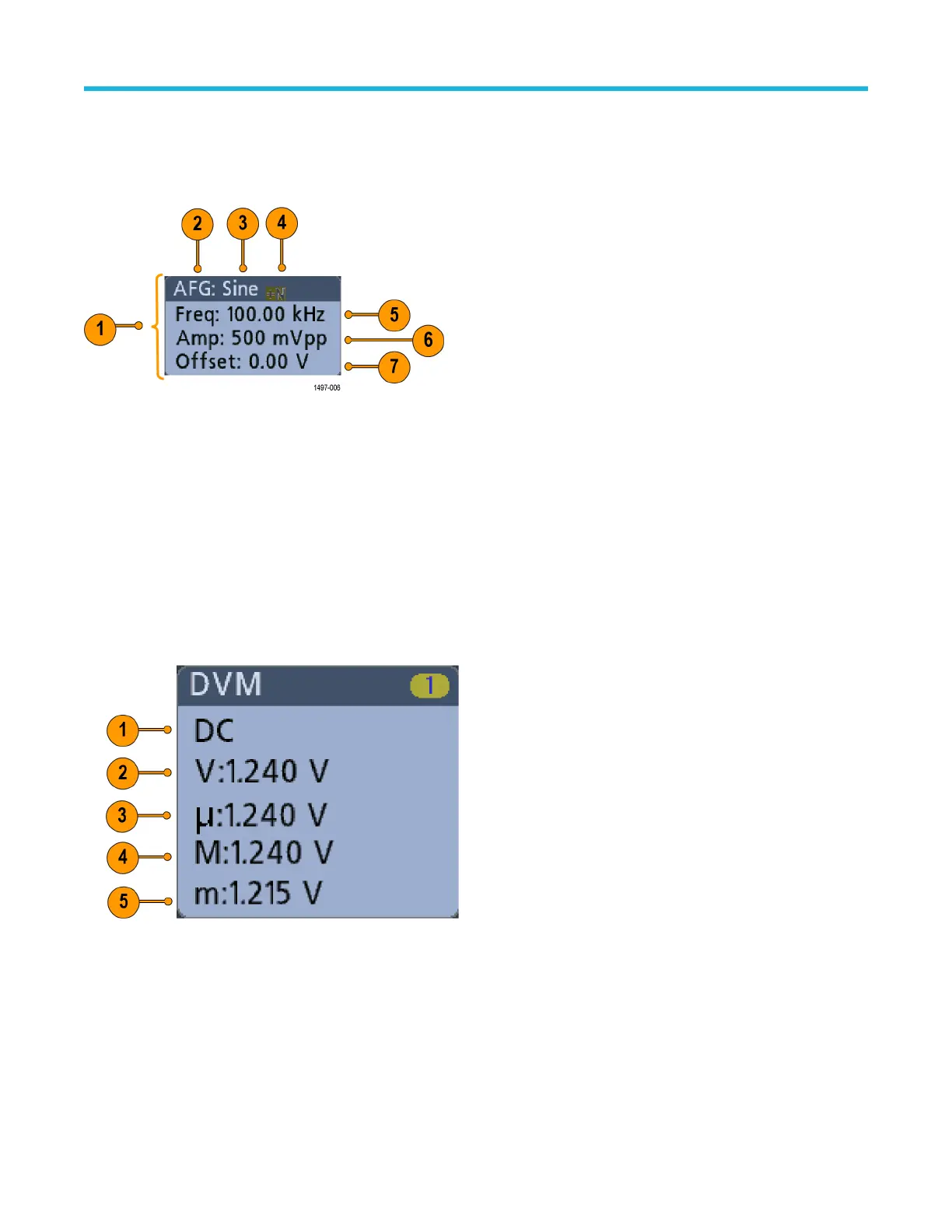

Identifying items in the arbitrary function generator display
This topic shows and describes each element of the arbitrary function generator display
.
Each element of the arbitrary function generator display gives information about the generated function.
1. If visible, the output is on
2. AFG label
3. W
aveform type, such as Sine
4. Additive Noise icon
5. Frequency
6. Amplitude
7. Offset
Identifying items in the digital voltmeter display
This topic shows and describes each element of the digital voltmeter display.
Each element of the digital voltmeter display gives information about the measurement.
1.
Measurement type (AC+DC RMS, DC, AC RMS, or Frequency)
2. Numerical value of the current measurement
3. A
verage of all measurement values recorded since you powered on the instrument or since you last reset DVM statistics.
4. Maximum measurement value recorded since you powered on the instrument or since you last reset DVM statistics.
5. Minimum measurement value recorded since you powered on the instrument or since you last reset DVM statistics.
Getting acquainted with your instrument
3 Series Mixed Domain Oscilloscope Printable Help 49
