The bus waveform updates as you make changes on the configuration menu. Tap the + symbol next to the waveform handle to turn on
and of

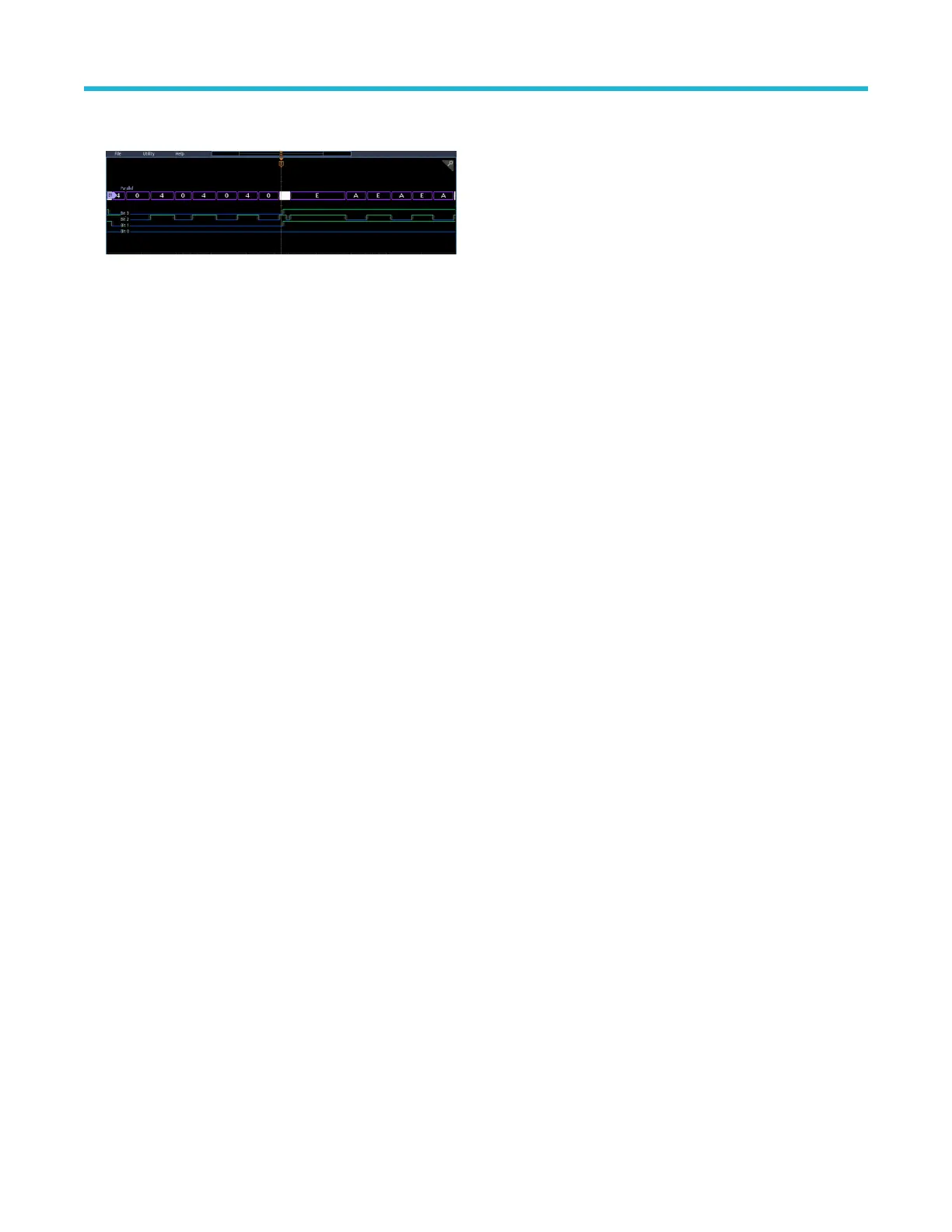

f showing the signals associated with the bus waveform.
5. Use the rest of the fields and controls in the configuration menu to set up the parallel bus parameters (label, position, display and
decode formats).
6. T
ap outside of the Bus configuration menu to close it.
7. To get a stable triggered waveform, double-tap the Trigger badge, set the Trigger Type to Bus, select the bus Source to the parallel
bus you just set up, and enter the data condition on which to trigger in the Data field.
8. For information on parallel bus menu settings, tap the Help button on the Bus configuration menu.
