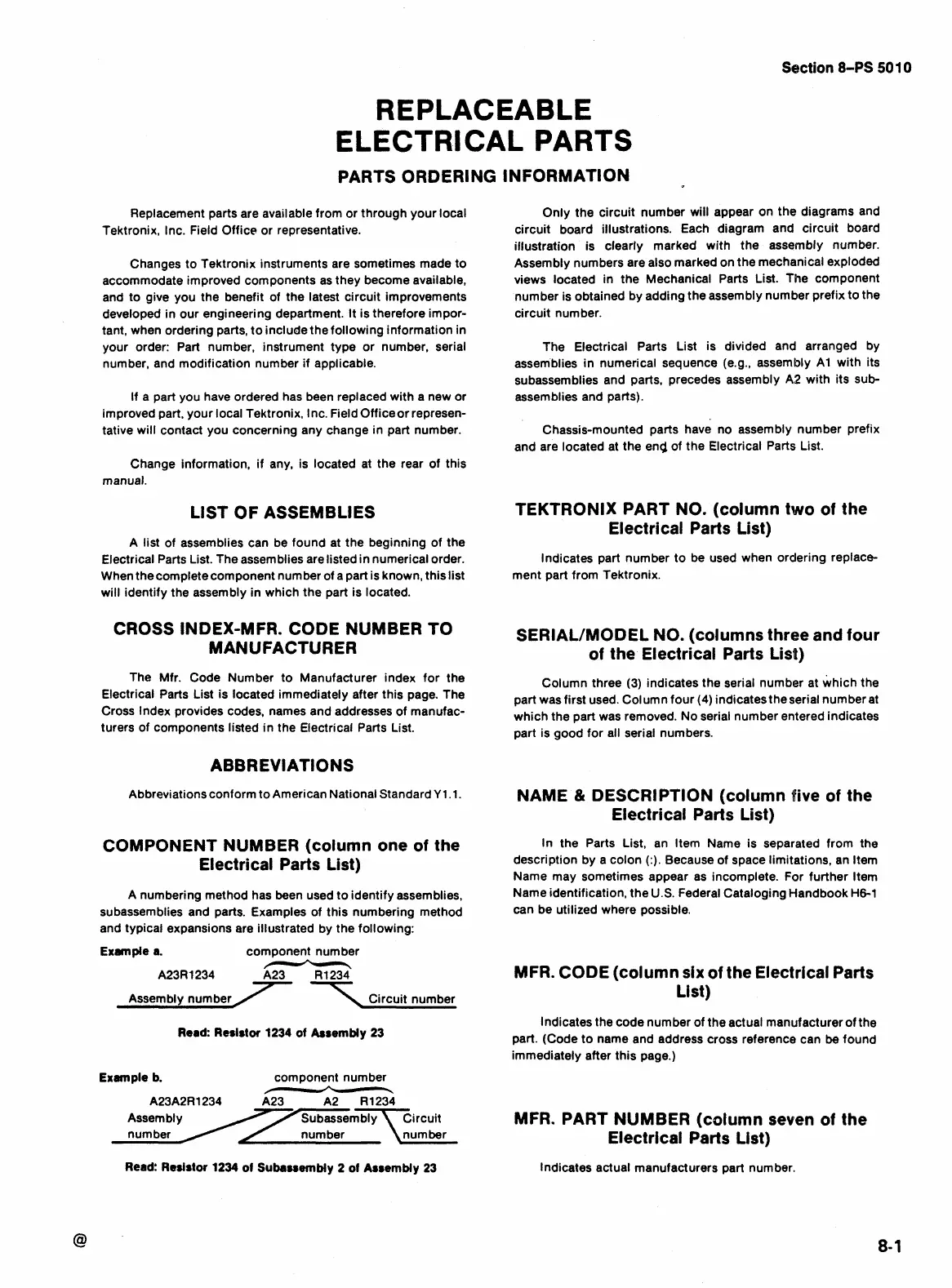

Section
8-PS
50
10
REPLACEABLE
ELECTRICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local
Tektronix, Inc. Field Office or representative.
Changes to Tektronix instruments are sometimes made to
accommodate improved components as they become available,
and to give you the benefit of the latest circuit improvements
developed in our engineering department. It is therefore impor-
tant, when ordering parts, to include the following information in
your order: Part number, instrument type or number, serial
number, and modification number if applicable.
If a part you have ordered has been replaced with a new or
improved part, your local Tektronix, Inc. Field
Officeor represen-
tative will contact you concerning any change in part number.
Only the circuit number will appear on the diagrams and
circuit board illustrations. Each diagram and circuit board
illustration is clearly marked with the assembly number.
Assembly numbers are also marked on the mechanical exploded
views located in the Mechanical Parts List.
The component
number is obtained by adding the assembly number prefix to the
circuit number.
The Electrical Parts List is divided and arranged by
assemblies in numerical sequence (e.g., assembly A1 with its
subassemblies and parts, precedes assembly A2 with its sub-
assemblies and parts).
Chassis-mounted parts have no assembly number prefix
and are located at the enQ of the Electrical Parts List.
Change information, if any, is located at the rear of this
manual.
LIST OF ASSEMBLIES
TEKTRONIX PART NO. (column two of the
Electrical Parts List)
A list of assemblies can be found at the beginning of the
Electrical Parts List. The assemblies are listed in numerical order.
Indicates part number to be used when ordering
replace-
When thecompletecomponent number of a part is known, this list
ment part from Tektronix.
will identify the assembly in which the part is located.
CROSS INDEX-MFR. CODE NUMBER TO
SERIAL/MODEL NO. (columns three and four
MANUFACTURER
of the Electrical Parts List)
The Mfr. Code Number to Manufacturer index for the
Column three (3) indicates the serial number at which the
Electrical Parts List is located immediately after this page. The
part was first used. Column four
(4)
indicates the serial number at
Cross Index provides codes, names and addresses of manufac-
which the part was removed. No serial number entered indicates
turers of components listed in the Electrical Parts List.
part is good for all serial numbers.
ABBREVIATIONS
Abbreviations conform to American National Standard
Y
1.1.
NAME
&
DESCRlPTlON (column five of the
Electrical Parts List)
COMPONENT
NUMBER
(column one of
the
In the Parts List, an Item Name is separated from the
Electrical Parts List)
description by a colon
(:).
Because of space limitations, an ltem
Name may sometimes appear as incomplete. For further ltem
A numbering method has been used to identify assemblies,
Name identification, the U.S. Federal Cataloging Handbook H6-1
subassemblies and parts. Examples of this numbering method
can be utilized where possible.
and typical expansions are illustrated by the following:
Example
a.
component number
-
~23~ 1 234 ~23 ~1234
MFR. CODE (column six of the Electrical Parts
Assembly number Circuit number
List)
Read:
Resistor 1234 of Assembly 23
lndicates the code number of the actual manufacturer of the
part. (Code to name and address cross reference can
be
found
immediately after this page.)
Example
b.
component number
-
A23A2R
1
234 R1234
Assembly Subassembly Circuit
number
MFR.PARTNUMBER(columnsevenofthe
Electrical Parts List)
Read: Redstor 1234 of Subassembly 2 of Assembly 23
Indicates actual manufacturers part number.
