Section
2PS
50
1
0
OPERATING
INSTRUCTIONS
Preparation For
Use
The PS 5010 is calibrated and ready to use when re-
ceived. The PS 501 0 operates in any two adjacent compart-
ments of a TM 5000 series power module. The PS 5010 is
preset to GPIB address 22 with an EOI message terminator.
The address may be verified by pressing the INST ID button
on the front panel. A decimal appears after the address in
the display if the terminator is LF-EOI. If other values are
required they may be set by qualified service personnel as
described in the Maintenance section of this manual.
CAUTION
D
Refer to Fig. 2-1 for the following instructions. Align the
PS 5010
chassis with the upper and lower guides of the
selected power module compartments. Push the PS 5010
into the mainframe and press firmly to seat the rear connec-
tors in their respective jacks at the rear of the power mod-
ule. Connect the power cord to the power source and turn
on the power module POWER switch.
Repackaging Information
If this instrument is to be shipped to a Tektronix Service
center for service or repair, attach a tag showing owner
(with address) and the name
of
an individual to contact. In-
clude the complete instrument serial number and a descrip-
tion of the service required.
To prevent damage to the PS
501
0, turn the power
module off before installing or removing the plug-in
Save and reuse the package in which the instrument was
from the power module. Do not use excessive force to
shipped. If the original packaging is unfit for use or not avail-
install or remove.
able, repackage the instrument as follows:

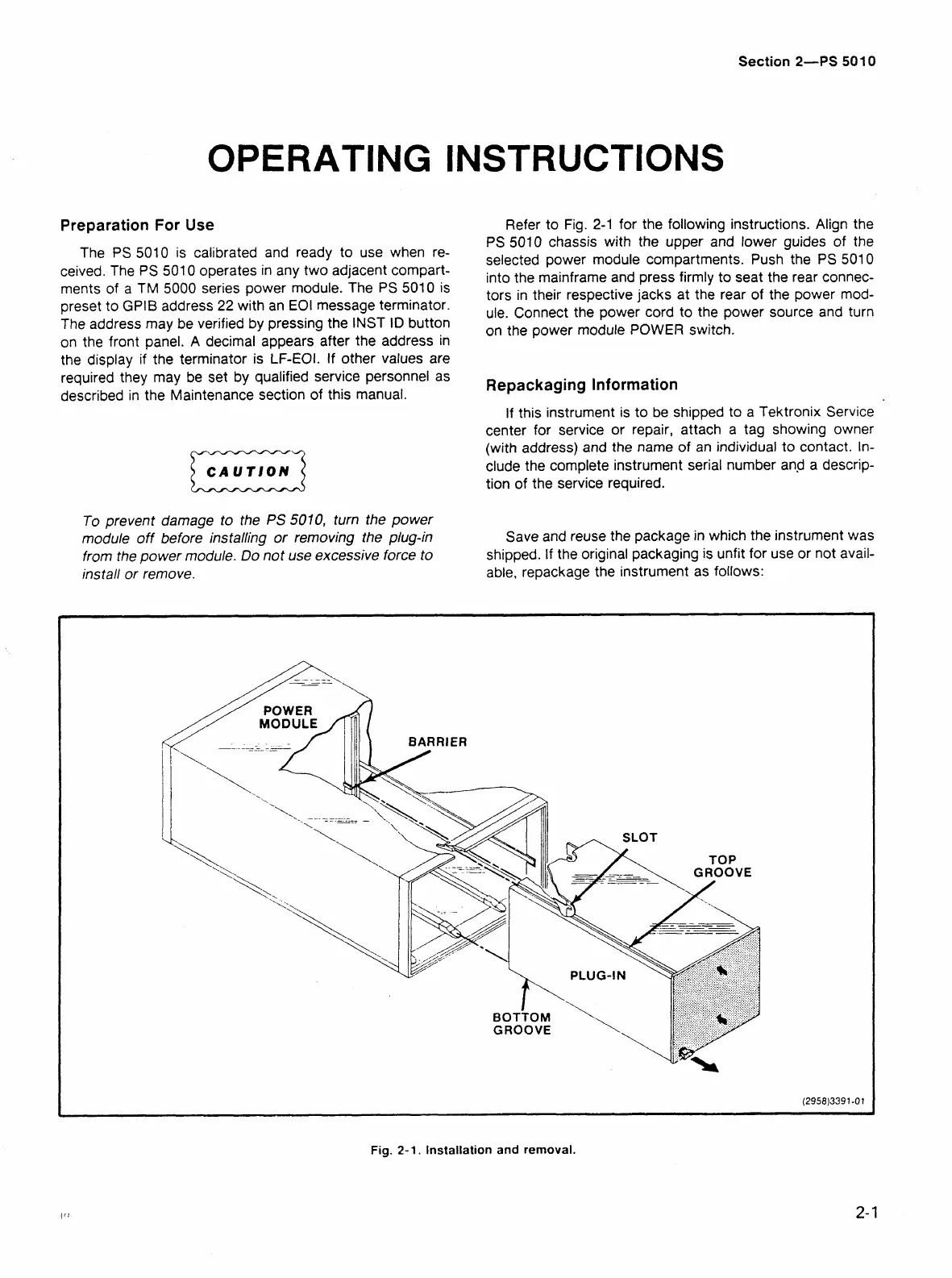

Fig.
2-1.
Installation and
removal.
