DISPLAYS AND DESCRIPTIONS
Buttons Pushed
(Power on)
4.. All bright
SUPPLY
To enter either
SELECT
parameter in
different supply.
'-1
Operating mode
NEG POS TRACK LOGIC
4
Selected supply
\\ / display bright
To enter the
#--other parameter
----\
in same supply. \
CURRENT VOLTAGE 4- Default
VOLTS or AMPS lights
flashing or steady. If
steady supply is at
limit, if flashing no.
I
4-, Digits selected are
bright. NOT ENTERED
light flashes.
NOT ENTERED light
quits flashing. Supply
goes to new param-
eter value.
Entry mode
I CLEAR I C-- All displays bright.
Operating mode
339 I -03

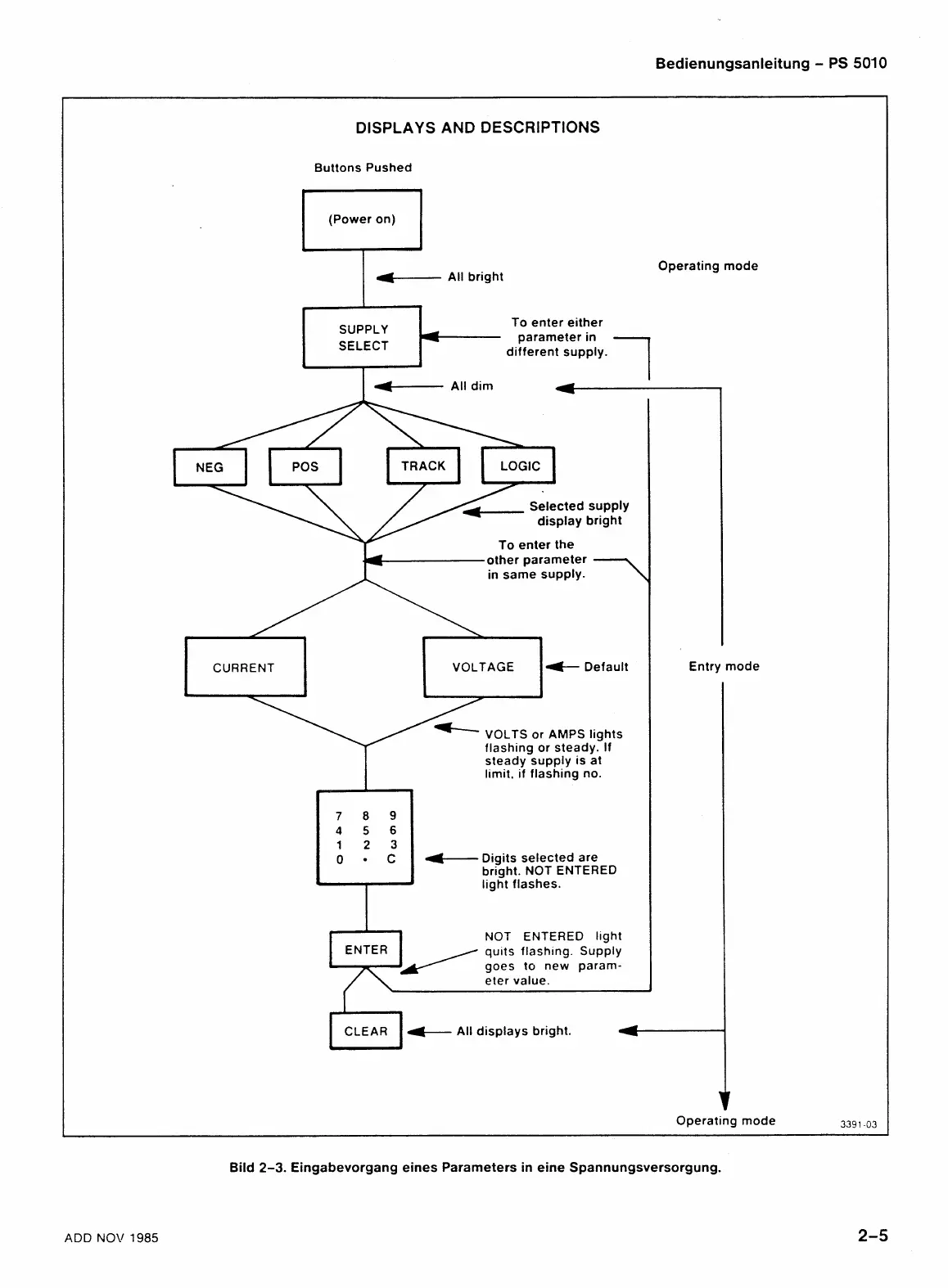

Bild 2-3. Eingabevorgang eines Parameters in eine Spannungsversorgung.
