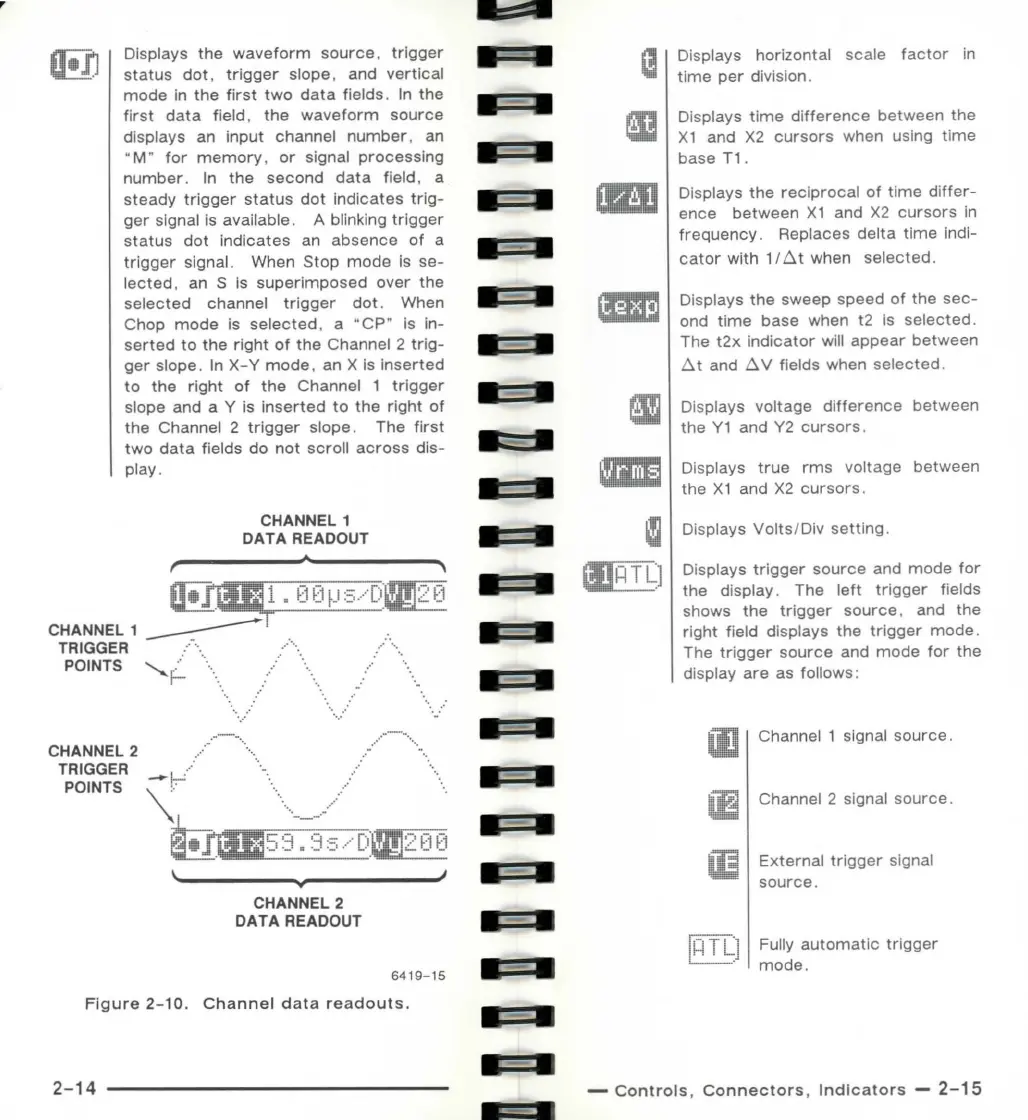

r
Displays
the
waveform
source
,
trigger
status
dot
,
trigger
slope , and
vertical
mode
in
the
first
two
data
fields .
In
the
first
data
field ,
the
waveform
source
displays an input channel
number
, an
M"
for
memory
,
or
signal
processing
number
.
In
the
second
data
field, a
steady
trigg
er
status
dot
indicates
trig-
ger
signal
is
available . A blinking
trigger
status
dot
indicates
an
absence
of
a
trigger
signal . When
Stop
mode
is
se-
lected
, an S is
superimposed
over
the
selected
channel
trigger
dot
. When
Chop
mode
is
selected
, a "
CP
" is in-
serted
to
the
right
of
the
Channel 2
trig-
ger
slope.
In
X-Y
mode
, an X
Is
inserted
to
the
right
of
the
Channel 1
trigger
slope and a Y is
inserted
to
the
right
of
the
Channel 2
trigger
slope.
The
first
two
data
fields
do
not
scroll
across
dis-
play .
CHANNEL 1
TRIGGER
POINTS
CHANNEL 2
TRIGGER
POINTS
'-....
F-
CHANNEL 1
DAT
A READOUT
,•
·.•
·
,
,•
CHANNEL 2
DAT
A READOUT
.
•·
·•.
6419-
15
Figure
2- 10.
Channel
data
readouts
.
2-14
--------------
-
Displays horizontal scale
factor
in
time
per
division.
Displays
time
difference
between
the
X1
and
X2
cursors
when using
time
base
T1
.
Displays
the
reciprocal
of
time
d
iffe
r-
ence
between
X1
and
X2
cursors
in
frequency.
Replaces
delta
time
indi-
cator
with
1 /
.6.
t when
selected.
Displays
the
sweep
speed
of
the
sec-
ond
time
base
when t2 is
selected
.
The
t2x
indicator
will
appear
between
.6.t and
.6.
V fields when
selected
.
Displays
voltage
difference
between
the
Y1
and Y2
cursors.
Displays
true
rms
voltage
between
the
X1
and
X2
cursors
.
Displays
Volts/Div
setting
.
Displays
trigger
source
and
mode
for
the
display.
The
left
trigger
fields
shows
the
trigger
source
, and
the
right
field displays
the
trigger
mode.
The
trigger
source
and
mode
for
the
display
are
as follows:
Channel 1 signal
source.
Channel 2 signal
source
.
External
trigger
signal
source
.
Fully
automatic
trigger
mode.
-
Controls
,
Connectors
,
Indicators
-
2-15
