I RECALL SETUP! Key-Starts the instruction
to recall up to nine keyboard setups .
I SAVE SETUP! Key-Starts the instruction to
save up to nine keyboard setups in nonvolatile
memory . The save keyboard setups are sec-
ond per division settings and trigger parame-
ters .
Positioning, Cursors, and Tracking Keys
Refer to Figure 2-5 for the locations of the posi-
tioning , cursors, and tracking keys.
Positioning Keys ~ ,
~ , and
[!]-Position the cursors , readouts , and trig-
ger points.
I CURSOR 1 I and I CURSOR 2 I Keys-Start
the instruction to position the selected vertical
(X) cursors or the horizontal (Y) cursors .
I TRACK I Key-Used after the cursor selec-
tion in the instruction to track the two X cur-
sors or the Y cursors .
Save Reference and Signal Processing
Refer to Figure 2-6 for the locations of the save
reference and signal processing keys.
SA ct)
I SA □ REF
RECALL/P0S REF
□ REF #
P □ S REF READOUT
O o~E~1,
SIG
PRJC □
6419-11

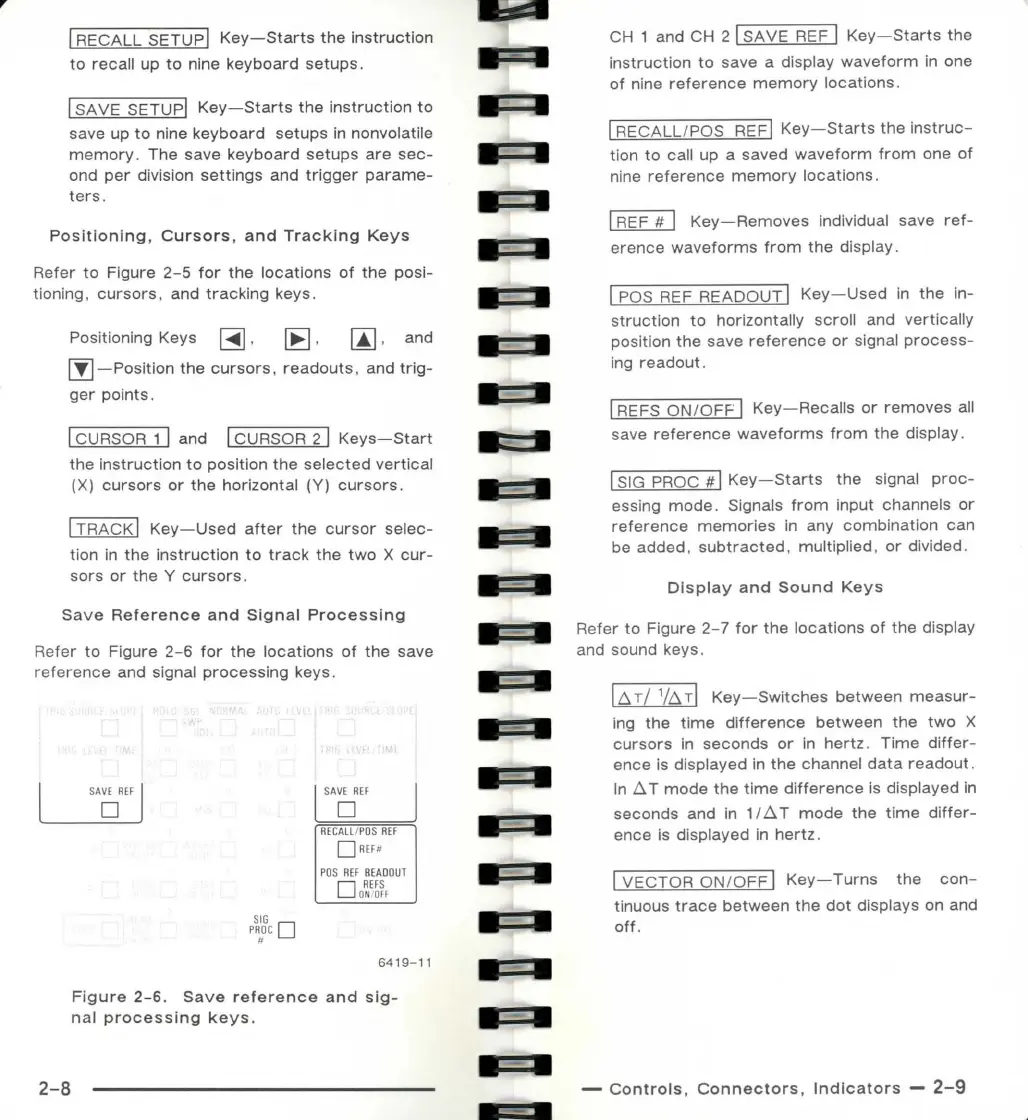

Figure 2-6. Save reference and sig-
nal processing keys.
2-8
•
•
■
II
■
JI
■
..
■
:a
,.
,
:a
•
•
■
•
■
■
■
■
■
■
■
■
■
■
■
■
CH 1 and CH 21 SAVE REF I Key-Starts the
instruction to save a display waveform in one
of nine reference memory locations.
I RECALL/POS REFI Key-Starts the instruc-
tion to call up a saved waveform from one of
nine reference memory locations.
I REF # I Key-Removes individual save ref-
erence waveforms from the display.
I POS REF READOUT I Key-Used in the in-
struction to horizontally scroll and vertically
position the save reference or signal process-
ing readout .
I REFS ON/OFF I Key-Recalls or removes all
save reference waveforms from the display.
I SIG PROC # I Key-Starts the signal proc-
essing mode. Signals from input channels or
reference memories in any combination can
be added, subtracted, multiplied, or divided.
Display and Sound Keys
Refer to Figure 2-7 for the locations of the display
and sound keys.
I 6. T/
1
/6. Tl Key-Switches between measur-
ing the time difference between the two X
cursors in seconds or in hertz. Time differ-
ence is displayed in the channel data readout .
In 6. T mode the time difference is displayed in
seconds and in 1 / 6. T mode the time differ-
ence is displayed in hertz .
I VECTOR ON/OFF I Key-Turns the con-
tinuous trace between the dot displays on and
off.
- Controls, Connectors, Indicators - 2-9
