Acquired waveforms may be saved in any of nine
nonvolatile memories. The stored waveforms may
then be recalled at a later time to compare against
the waveforms being acquired . Time base and
trigger keyboard settings may also be saved in the
nonvolatile memory for later recall. Recalling a
frequently used setup speeds up the measurement
by reducing the number of keyboard entries
needed .
Signal processing of both input channels and save
reference information is available. Input Channels
or reference in any combination can be added,
subtracted , multiplied, or divided.
The following items are standard accessories
shipped with the instrument .
2 Probe packages
1 AC/DC Adapter
Operators Manual
Battery Pack/Carrying Case
For information about standard accessories and a
list of the optional accessories , refer to " Options
and Accessories" (Section 6) in this manual. For
additional information on accessories and ordering
assistance , contact your Tektronix representative
or local Tektronix Field Office.
Preparation for Use
Safety
This section tells how to prepare for and to pro-
ceed with the initial start-up of the instrument.
Refer to the Operators Safety Summary at the
front of this manual for power source and other
safety considerations. Before connecting the in-
strument to a power source , read both this sec-
tion and the Safety Summary.
1-2
Ac/De Adapter
Instruments are shipped with a detachable ac/dc
adapter that plugs into an ac power-source outlet.
The adapter converts the alternating-current
source voltage to low-direct-current voltage for
the operation of the instrument. The ac/dc
adapter plugs into the instrument ' s power cord
receptacle as shown in Figure 1-1 .
POWER
CORD
6419-02

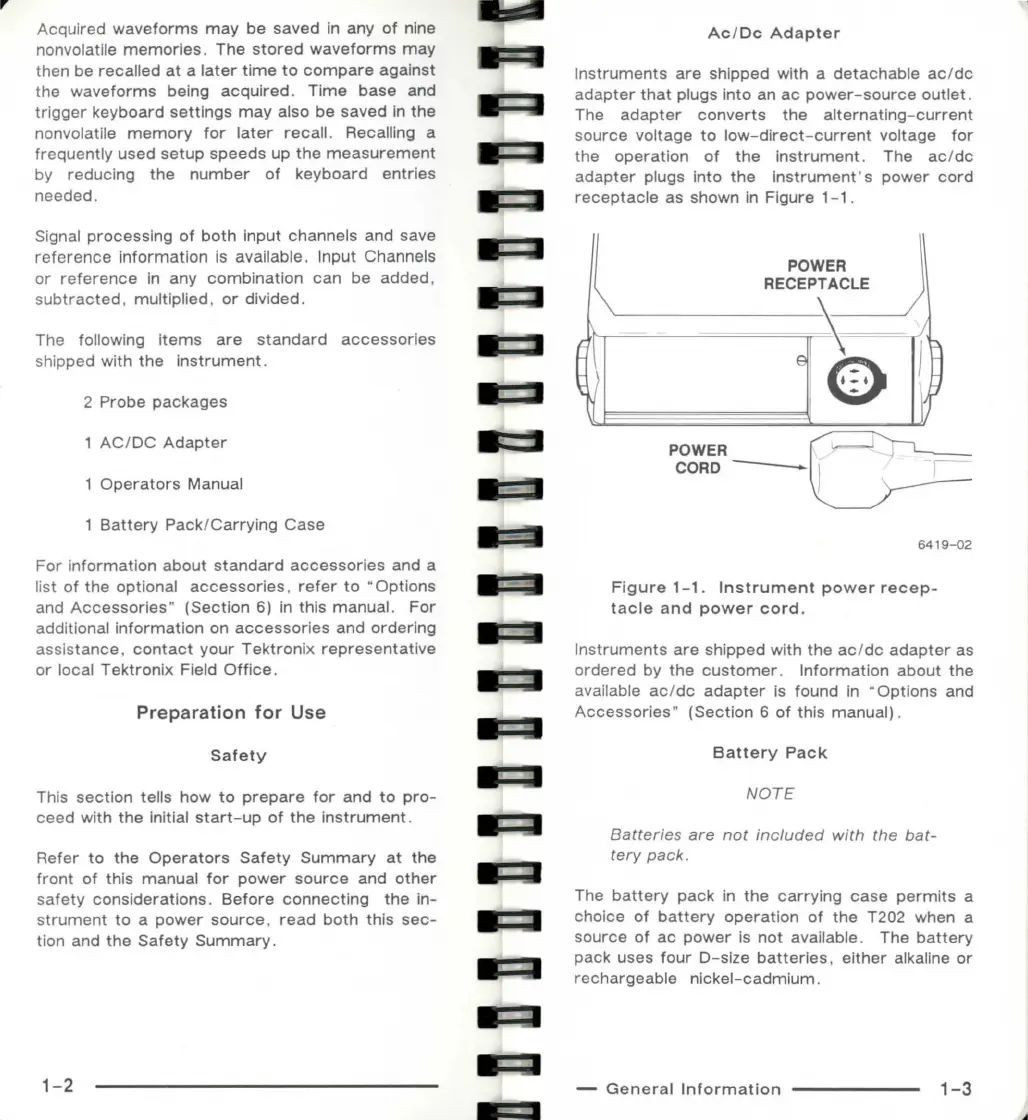

Figure 1-1. Instrument power recep-
tacle and power cord.
Instruments are shipped with the ac/dc adapter as
ordered by the customer. Information about the
available ac/dc adapter is found in " Options and
Accessories" (Section 6 of this manual) .
Battery Pack
NOTE
Batteries are not included with the bat-
tery pack.
The battery pack in the carrying case permits a
choice of battery operation of the T202 when a
source of ac power is not available . The battery
pack uses four D-size batteries , either alkaline or
rechargeable nickel-cadmium.
- General Information
1-3
