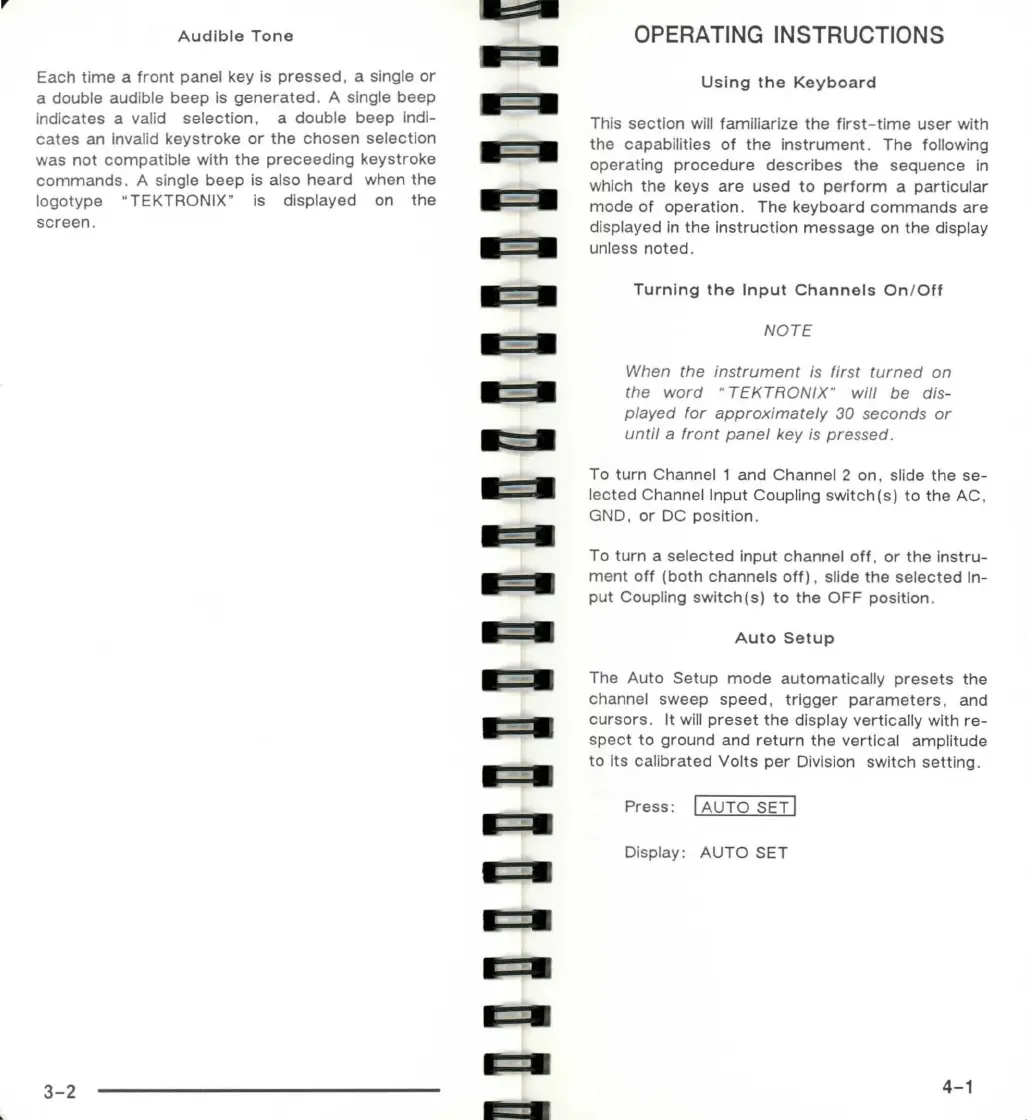

Tektronix T202 User Manual

..
Audible Tone
Each time a front panel key is pressed , a single or
a double audible beep is generated . A single beep
indi cates a valid selection, a double beep indi-
cates an Invalid keystroke or the chosen selection
was not compatible with the preceed ing keystroke
commands. A single beep is also heard when the
logotype " TEKTRONIX " is displayed on the
screen .
3-2
•
•
•
■
■
■
■
■
OPERATING INSTRUCTIONS
Using the Keyboard
This sect ion will familiarize the first - time user with
the capabilities of the instrument . The following
operating procedure describes the sequence in
which the keys are used to perform a particular
mode of operation . The keyboard commands are
displayed in the instruction message on the display
unless noted.
Turning the Input Channels On/Off
NOTE
When the instrument is first turned on
the word " TEKTRONIX " will be dis-
played for approximately 30 seconds or
until a front panel key is pressed .
To turn Channel 1 and Channel 2 on , slide the se-
lected Channel Input Coupling switch ( s) to the AC,
GND, or DC position .
To turn a selected input channel off . or the instru-
ment off (both channels off) , slide the selected In-
put Coupling switch ( s) to the OFF position.
Auto Setup
The Auto Setup mode automatically presets the
channel sweep speed , trigger parameters , and
cursors . It will preset the display vertically with re-
spect to ground and return the vertical amplitude
to its calibrated Volts per Division switch setting .
Press: I AUTO SET i
Display: AUTO SET
4-1
