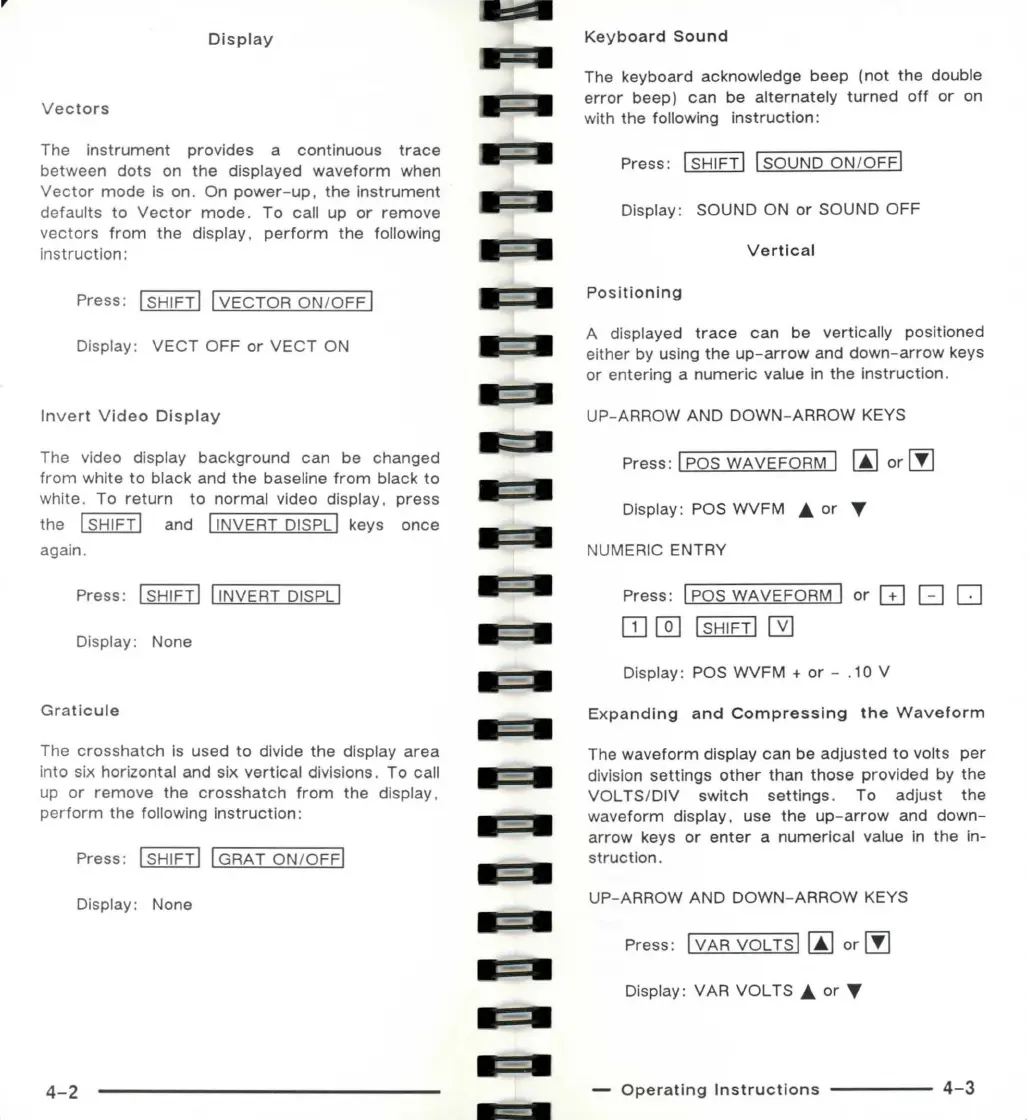

Display
Vectors
The instrument provides a continuous trace
between dots on the displayed waveform when
Vector mode is on. On power-up, the instrument
defaults to Vector mode . To call up or remove
vectors from the display, perform the following
instruction:
Press: I SHIFT! I VECTOR ON/OFF I
Display: VECT OFF or VECT ON
Invert Video Display
The video display background can be changed
from white to black and the baseline from black to
white. To return to normal video display, press
the I SH IFT I and ! INVERT DISPL I keys once
again.
Press: I SHIFT! ! INVERT DISPL!
Display : None
Graticule
The crosshatch Is used to divide the display area
i nto six horizontal and six vertical divisions. To call
up or remove the crosshatch from the display,
perform the following instruction :
Press: I SHIFT! I GRAT ON/OFF!
Display : None
4-2
■
■
■
■
■
■
•
■
•
■
■
■
■
■
■
■
■
■
■
■
•
■
■
■
■
■
Keyboard Sound
The keyboard acknowledge beep ( not the double
error beep) can be alternately turned off or on
with the following instruction:
Press: I SHIFT! I SOUND ON/OFF!
Display: SOUND ON or SOUND OFF
Vertical
Positioning
A displayed trace can be vertically positioned
either by using the up-arrow and down-arrow keys
or entering a numeric value in the instruction.
UP-ARROW AND DOWN- ARROW KEYS
Press: I POS WAVEFORM I [Al or rn
Display : POS WVFM .&. or T
NUMERIC ENTRY
Press: I POS WAVEFORM I or G] [J D
[TI I]] I SHIFT! [2J
Display: POS WVFM + or - . 1 0 V
Expanding and Compressing the Waveform
The waveform display can be adjusted to volts per
division settings other than those provided by the
VOL TS/DIV switch settings . To adjust the
waveform display, use the up- arrow and down-
arrow keys or enter a numerical value in the in-
structi on.
UP-ARROW AND DOWN-ARROW KEYS
Press: !VAR VOLTS! [Al orrn
Display: VAR VOL TS .&. or T
- Operating Instructions
4-3
