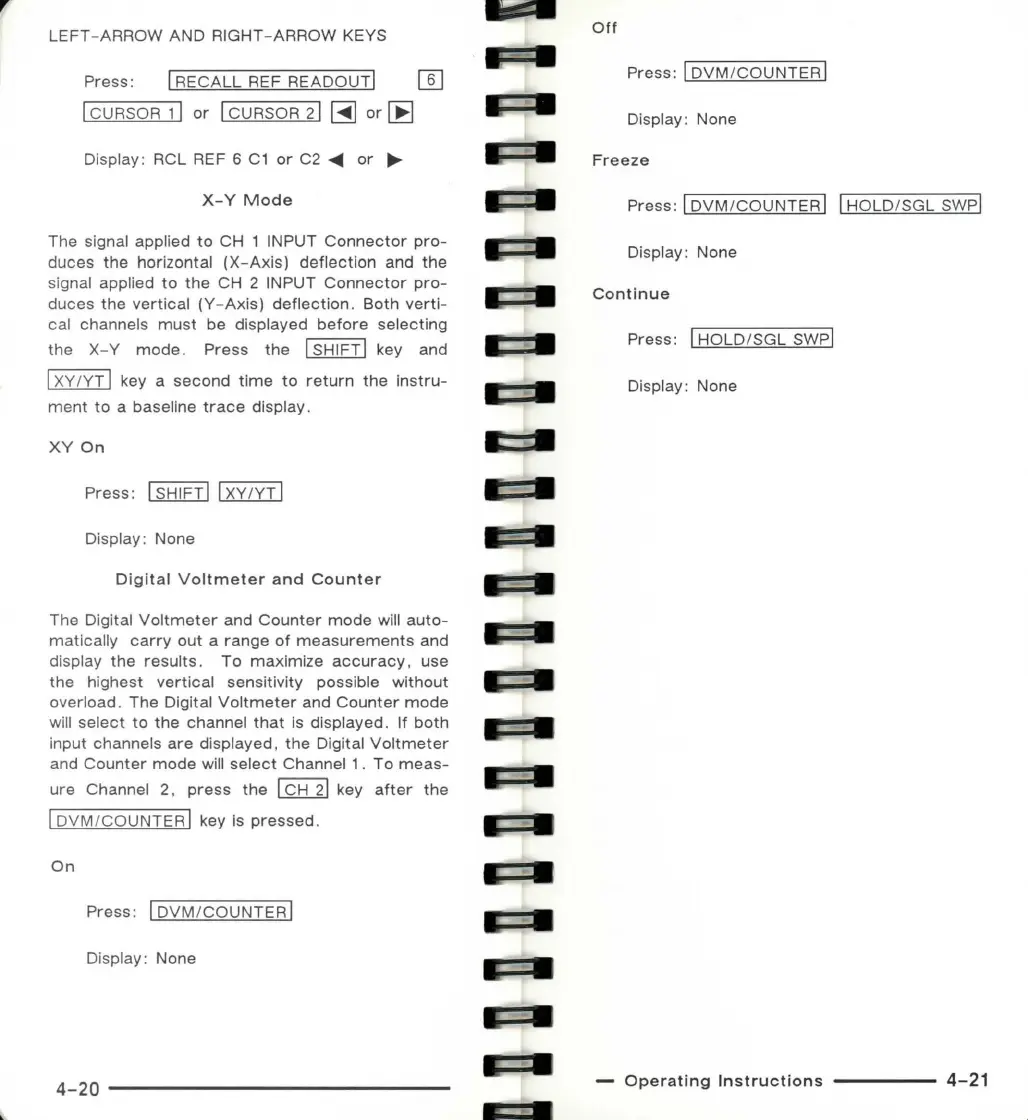

LEFT -ARROW AND RIGHT -ARROW KEYS
Press: I RECALL REF READOUT! []]
I CURSOR 1 I or I CURSOR 2 I ~ or [B
Display: RCL REF 6 C1 or C2 ◄ or ►
X-Y Mode
The signal applied to CH 1 INPUT Connector pro-
duces the horizontal (X-Axis) deflection and the
signal applied to the CH 2 INPUT Connector pro-
duces the vertical (Y-Axis) deflection . Both verti-
cal channels must be displayed before selecting
the X-Y mode. Press the I SHIFTI key and
I XY / YT I key a second time to return the instru-
ment to a baseline trace display.
XY On
Press : I SHIFTI I XY/YT I
Display: None
Digital Voltmeter and Counter
The Digital Voltmeter and Counter mode will auto-
matically carry out a range of measurements and
display the results . To maximize accuracy , use
the highest vertical sensitivity possible without
overload. The Digital Voltmeter and Counter mode
will select to the channel that is displayed. If both
input channels are displayed , the Digital Voltmeter
and Counter mode will select Channel 1. To meas-
ure Channel 2, press the I CH 2 I key after the
I DVM / COUNTERI key is pressed .
On
Press : I DVM/COUNTER I
Display: None
4-20 --------------
E ■
•
•
•
•
•
■
•
■
•
Off
Press : I DVM / COUNTER I
Display: None
Freeze
Press : I DVM/COUNTER I I HOLD / SGL SWPI
Display: None
Continue
Press: I HOLD/SGL SWPI
Display: None
- Operating Instructions
----4-21
