LCD Display-The display area Is 6.4 by 6.4
divisions.
LCD Contrast Control-Adjusts the display
contrast for the best viewing. The LCD Con-
trast control Is adjusted after finding the best
viewing position for the instrument. This ad-
justment is located at the bottom of the in-
strument to the left of the power receptacle.
lfil!)
DC
GND
AC
,01
. 02
.05
.10
.2 0
,5 0
1
2
5
10
20
VOLTS /
OIV
0
CH 1
INPUT
IMn 2Spf
0
EXT TRIG
INPUT
22Mn 25pf
0
CH 2
INPUT
lMn 2Spf
INPUT PLUS FLOATING :!:42Vpk
ZERO VOLTS BETWEEN BNC COMMONS
Tektronix
T202
(QE)
DC
GND
AC
. 01
. 02
. 05
. 10
. 20
.so
1
2
5
10
20
VOLTS /
OIV
LCD CONTRAST CONTROL )
L h------------=~~
6419-06

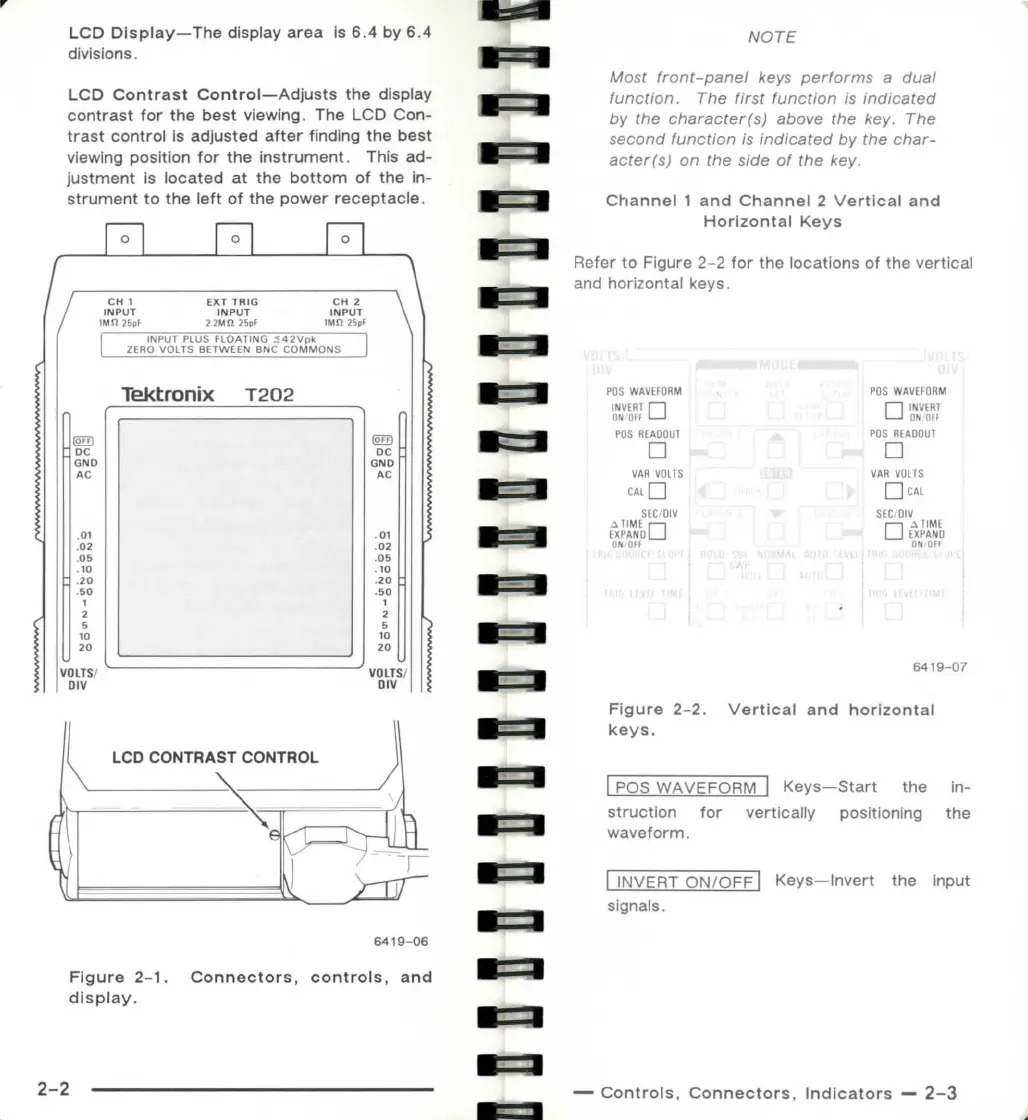

Figure 2-1. Connectors, controls, and
display.
2-2
■ :I
■
'.J
■
~
■
I
NOTE
Most front-panel keys performs a dual
function. The first function is indicated
by the character(s) above the key. The
second function is indicated by the char-
acter(s) on the side of the key.
Channel 1 and Channel 2 Vertical and
Horizontal Keys
Refer to Figure 2-2 for the locations of the vertical
and horizontal keys.
POS WAVEFORM
POS WAVEFORM
~NuVm □
□ INVERT
ON OH
POS READOUT
PDS READOUT
□ □
VAR VOLTS VAR VOLTS
CAL □ □ CAL
SEC / OIV SEC , DIV
fx~~~~ □ □ fx~~~
ON OFF
ON OFF
6419-07
Figure 2-2. Vertical and horizontal
keys.
I POS WAVEFORM I Keys-Start the in-
struction for vertically positioning the
waveform.
I INVERT ON/OFF I Keys-Invert the input
signals.
- Controls, Connectors , Indicators - 2-3
