WARNING I
The battery charger is for use with
ni ckel-cadmium batteries only . Other
types may ex plode or release hazard-
ous materials if recharged .
Controls and Indicator
See Fig ure 1 -2 for the location of the controls ,
connectors , and indicator .
1-4
I
I
.
'®
I
I
6419-03

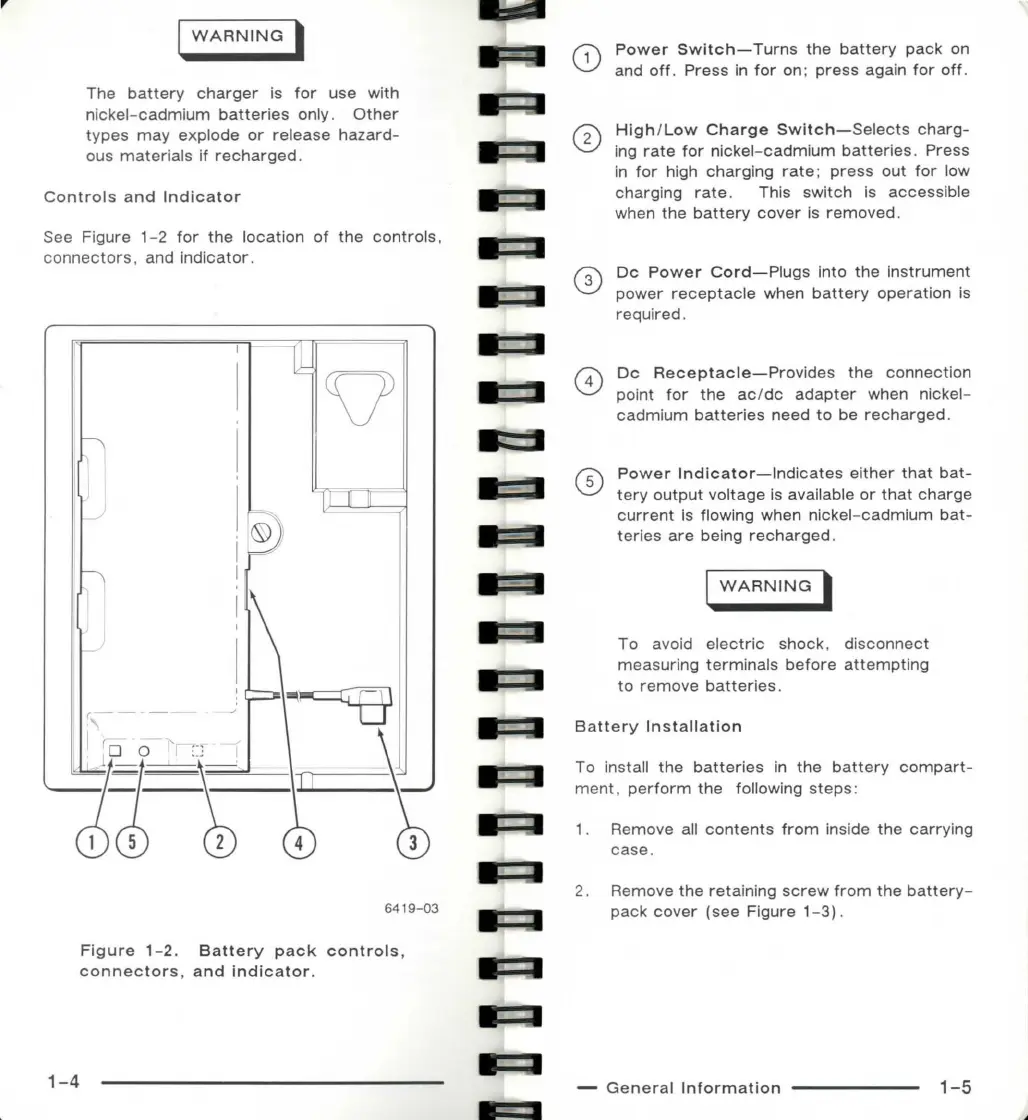

Figure 1-2 . Battery pack controls ,
connectors , and indicator .
• 1J
• J
• ii
■ J
CD
0
0
0
0
Power Switch- Turns the battery pack on
and off. Press in for on; press again for off .
High / Low Charge Switch-Selects charg-
ing rate for nickel-cadmium batteries . Press
in for high charging rate ; press out for low
charging rate . This switch is accessible
when the battery cover is removed .
De Power Cord-Plugs into the instrument
power receptacle when battery operation is
requ ir ed .
De Receptacle-Provides the connection
po in t for the ac / dc adapter when nickel-
cadmium batteries need to be recharged.
Power Indicator-Indicates either that bat-
tery output voltage is available or that charge
current is flowing when nickel- cadmium bat -
teries are being recharged .
I WARNING I
To avoid electric shock , disconnect
m easur ing terminals before attempting
to remove batteries .
Battery Installation
To install the batteries in the battery compart-
ment , perform the following steps :
1 . Remove all contents from inside the carrying
case .
2. Remove the retaining screw from the battery -
pack cover ( see Figure 1- 3) .
- General Information
1-5
