Tektronix T202 User Manual

r

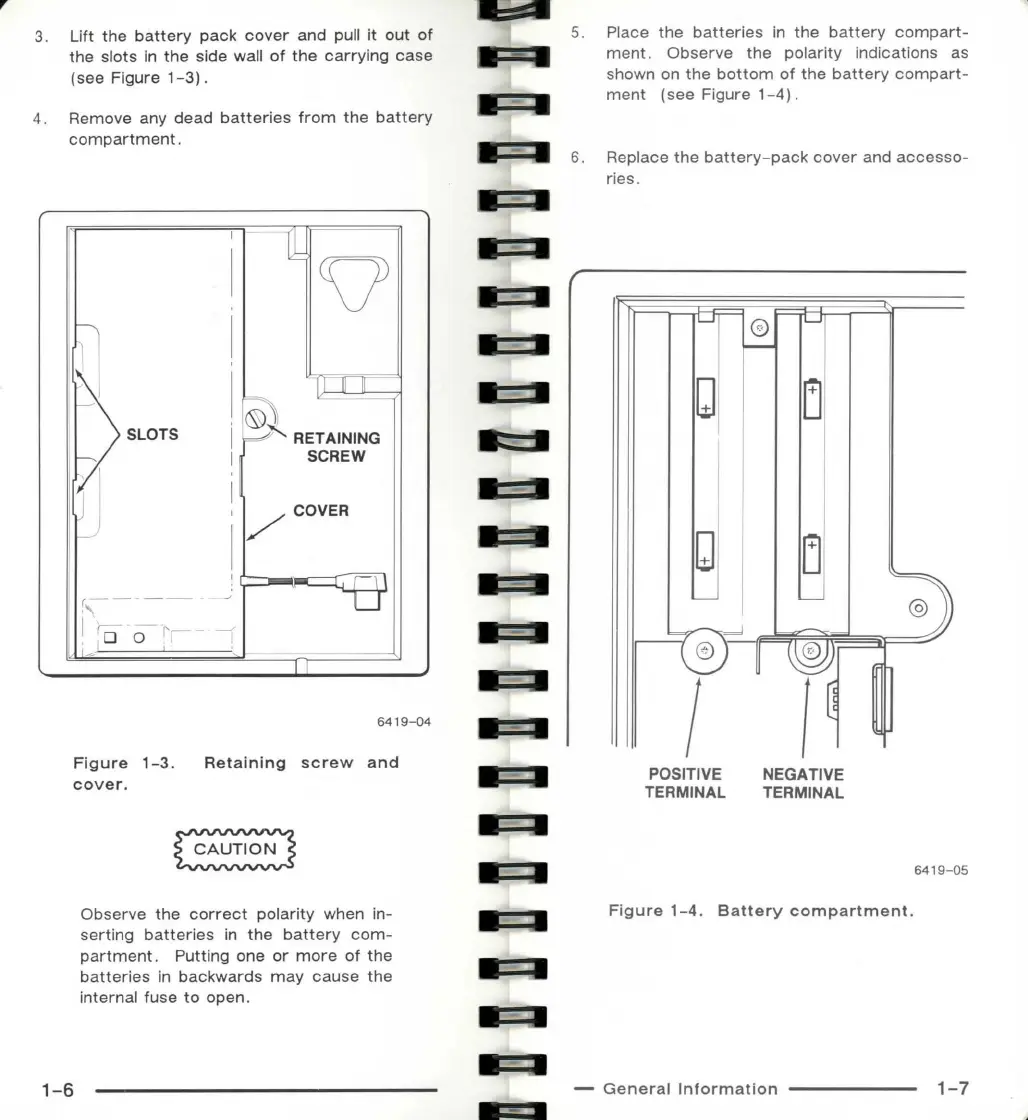

3. Lift the battery pack cover and pull it out of
the slots In the si de wall of the carry i ng case
( see Figure 1-3) .
4. Re move any dead batteries from t he bat t ery
co mpar t men t .
SLOTS
r.-----
I V
I
!@
I ,=# ' RETAINING
I SCREW
I / COVER
1 'cl O ~, ~I
, I
Figure 1-3 .
cover .
6419-04
Retain i ng screw and
Obse rve t he correct polar it y when in-
sert in g b atteries in the bat tery co m-
p art ment , Putting one or mor e of th e
b atte ries in bac k wards may cause th e
i nt ernal f use to open .
1-6
■
■
■
•
•
•
■ •
■
5. Place the batteries in the battery compart-
ment , Observe the polarity indications as
shown on the bottom of the battery compart-
ment ( see Figure 1- 4) ,
6. Replace the battery - pack cover and accesso -
ries .
POSITIVE
TERMINAL
NEGATIVE
TERMINAL
Fi gure 1-4. Battery compartment.
- General Information
6 419-05
1-7
