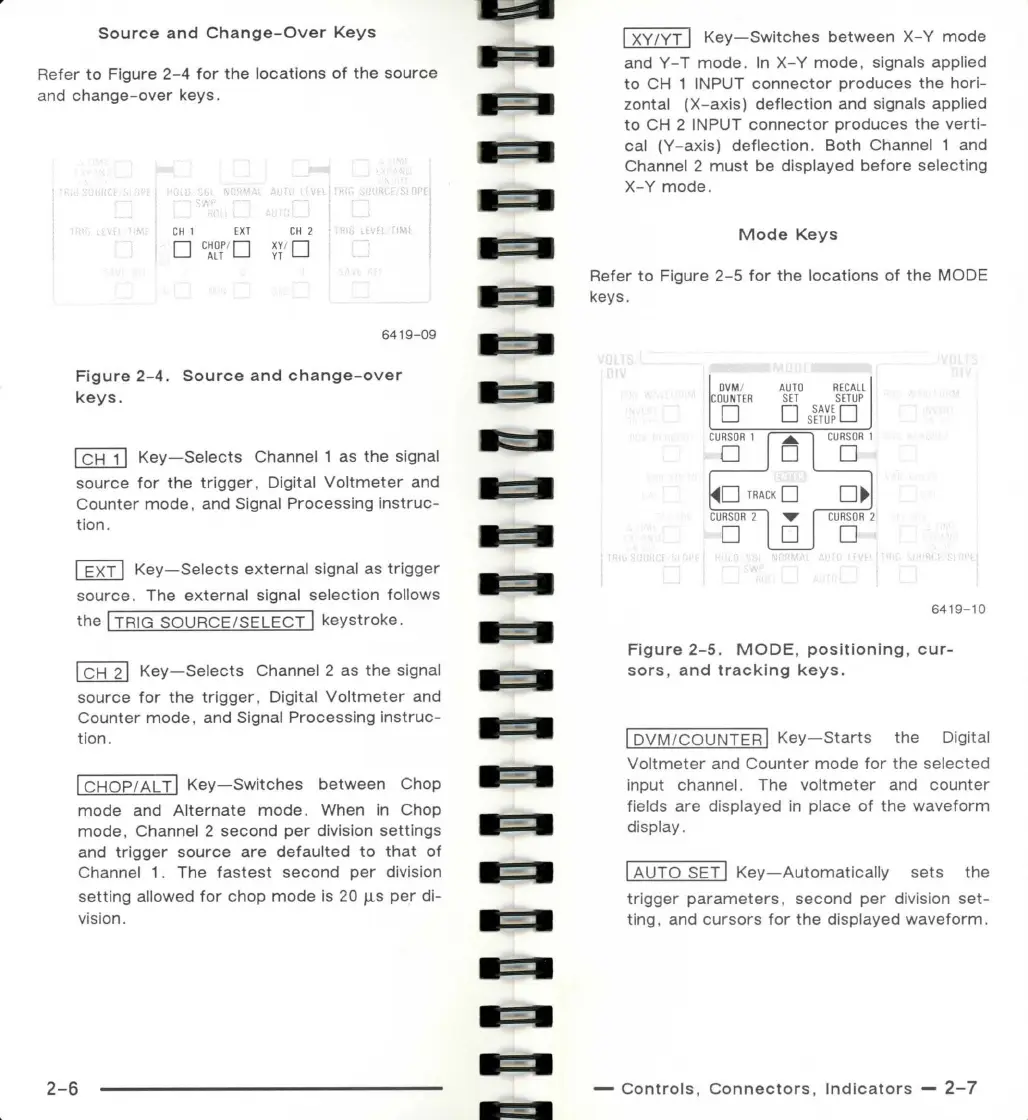

Tektronix T202 User Manual

Source and Change-Over Keys
Re fer to Figure 2- 4 for the locations of the source
and change-over keys .
CH I EXT CH 2
M
D c~~i' D
w □
641 9- 09
Figure 2-4. Source and change-over
keys.
~ Key-Selects Channel 1 as the signal
source for the trigger , Digital Voltmeter and
Counter mode , and Signal Processing instruc -
tion .
I EXT I Key-Selects external signal as trigger
source . The ex ternal signal selection follows
the I TRIG SOURCE/ SELECT I keystroke .
I CH 2 I Key-Selects Channel 2 as the signal
source for the trigger , Digital Voltmeter and
Counter mode , and Signal Processing instruc-
tion .
I CHOP / ALT I Key-Switches between Chop
mode and Alternate mode . When in Chop
mode , Channel 2 second per division sett i ngs
and trigger source are defaulted to that of
Channel 1 . The fastest second per division
2-6
sett i ng allowed for chop mode is 20 µs per di-
vision .
■
■
..
■
■
■
■
■
■
■
■
•
•
•
•
■
■
■
■
■
■
•
•
I XY/YT I Key-Switches between X- Y mode
and Y-T mode . In X-Y mode , signals applied
to CH 1 INPUT connector produces the hori-
zontal ( X- axis) deflection and signals applied
to CH 2 INPUT connector produces the verti -
cal (Y-a xis) deflection . Both Channel 1 and
Channel 2 must be displayed before selecting
X-Y mode .
Mode Keys
Refer to Figure 2-5 for the locations of the MODE
keys.
OVM /
AUTO
RECALL
COU N TER SET
SET UP
□
□ sim □
64 1 9-10
Figure 2-5 . MODE , positioning , cur-
sors, and tracking keys.
I DVM/ COUNTER I Key-Starts the Digital
Voltmeter and Counter mode for the selected
i nput channel . The voltmeter and counter
fields are dis played in place of the waveform
display .
I AUTO SET I Key-Automatically sets the
trigger parameters , second per division s et-
ting , and cursors for the displayed waveform .
- Controls, Connectors , Indicators - 2-7
