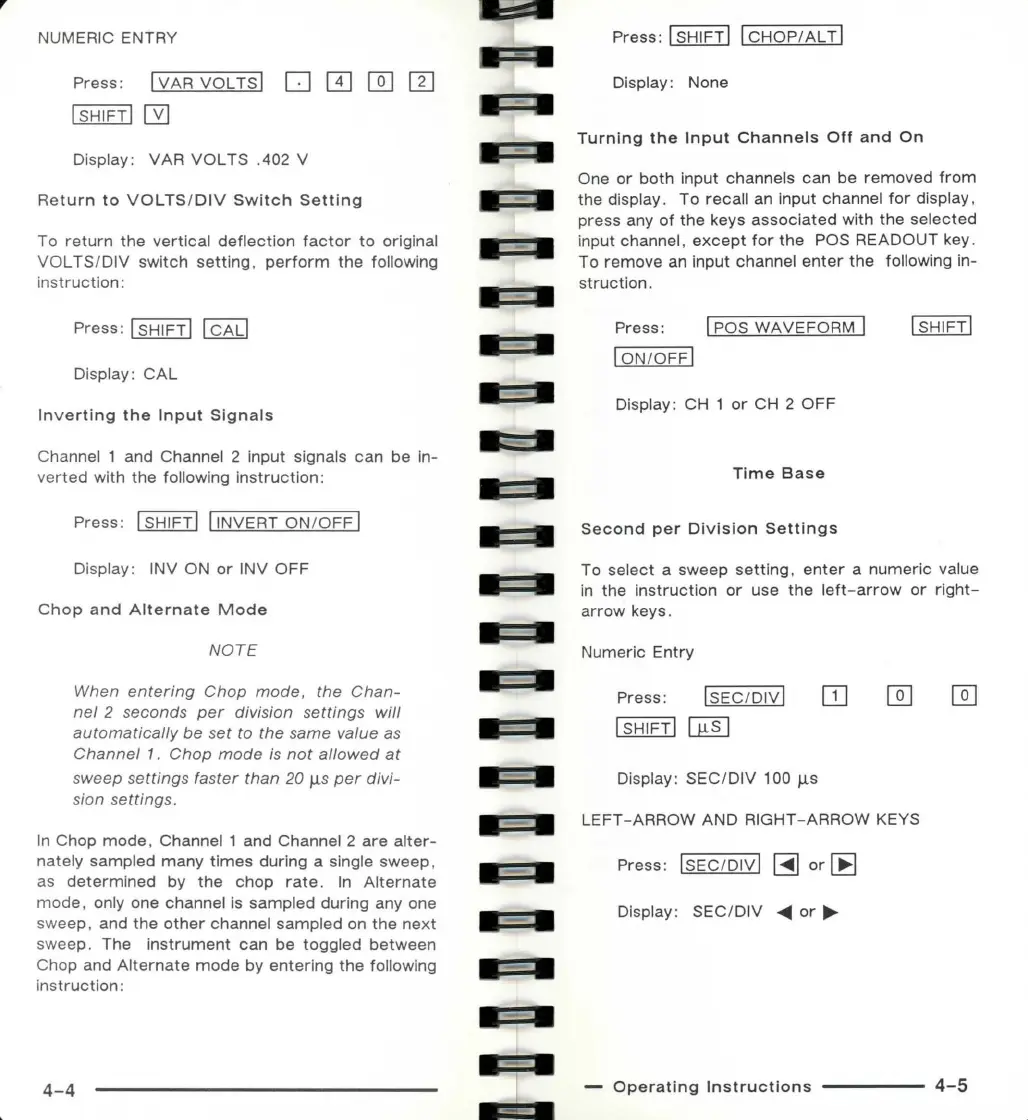

NUMERIC ENTRY
Press: l VAR VOL TS! D [TI I]] [I]
I SHIFTI [2]
Display: VAR VOL TS .402 V
Return to VOLTS / DIV Sw it ch Setting
To return the vertical deflection factor to or iginal
VOL TS/DIV switc h setting, perform the following
instruction:
Press: I SHIFTI I CALI
Display: CAL
Inverting the Input Signals
Channel 1 and Channel 2 input signals can be in-
verted with the following instr uction :
Press: l SHIFTI ! INVERT ON/OFF I
Display: INV ON or INV OFF
Chop and Alternate Mode
NOTE
When entering Chop mode, the Chan-
nel 2 seconds per division settings will
automatically be set to the same value as
Channel 1. Chop mode is not allowed at
sweep settings faster than 20 µs per divi-
sion settings .
In Chop mode , Channel 1 and Channel 2 are alter-
nately sampled many times dur ing a single sweep ,
as determine d by the chop rate. In Alternate
mode , only one channel is sampled during any one
sweep , and the other channel sampled on the next
sweep . The instrument can be toggled between
Chop and Alternate mode by entering the following
instruction:
4-4
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
•
•
■
■
■
•
■
■
■
■
■
■
■
■
■
■
■
■
■
Press: lsHIFTI lcHOP/ALTI
Display: None
Turning the Input Channels Off and On
One or both input channels can be removed from
the display. To recall an input channel for display,
press any of the keys associated with the selected
input channel , except for the POS READOUT key .
To remove an input channel enter the following in-
struction.
Press: l POS WAVEFORM I
I ON/ OFF I
Display: CH 1 or CH 2 OFF
Time Base
Second per Division Settings
To select a sweep setting , enter a numeric value
in the instruction or use the left-arrow or right-
arrow keys .
Numeric Entry
Press: lsEC/DIVI OJ
I]]
I SHIFTI ~
D is play : SEC/DIV 100 µs
LEFT -ARROW AND RIGHT - ARROW KEYS
Press: !SEC / DIV! BJ or [B
Display: SEC/DIV ◄ or ►
I]]
- Operating Instructions
----4-5
