IPO L L]
Normal trigger mode .
Aut o- normal trigger mode .
Single sweep trigger mode .
The sweep free runs and the
tr i gger is disabled .
Displays trigger voltage level with refer-
ence to ground (0 volts) .
Displays horizontal pos i tion (trigger de-
lay) of the tr i gger referenced from the
fourth pixel from left edge of display.
DVM / COUNTER Readout
The in s trument w ill automatically carry out a wide
range of measurements and display the results .
The measurement results are displayed as shown
in Fi gure 2-11 . If the signal amplitude is either too
high or low , the po i nter after the words " Voltage
Range " shows the di rect ion to set the Volts / Divi-
sion swi tch to get a good measurement . The
wave form display Is located at the bottom right
corne r of the display. The input coupling mode and
sensitivity is located at the bottom left corner of
the display. The funct ion descr i ptions in the
read out are as follows:
Vr ms - True rms voltage value of the
waveform .
Vavg-Arithmetic mean average (de compo -
ne nt) .
Vpp - Peak- to - peak voltage .
Vop-Zero - to - peak vo ltage .
T - Signal per iod.
f- Signal frequency .
2-16
■
•
■
•
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
•
•
■
•
■
■
■
■
•
■
MAXIMUM
FUNCTION VALUE UNIT ERROR
__ ... ________ ,,.....,...__,, ____ _
INPUT
COUPLING
INDICATOR
t·1 U L T I t'1 E T E P
7:' C" • -::• C"
·-· ._I ,:_ D ._I
0
·i · -1- .-. C"
-~--::::. D . _I
4 4
,-,c
a o . _1
VOLT /DIVISION
SWITCH SETTING
D O 1
SIGNAL
DISPLAY
6419-16

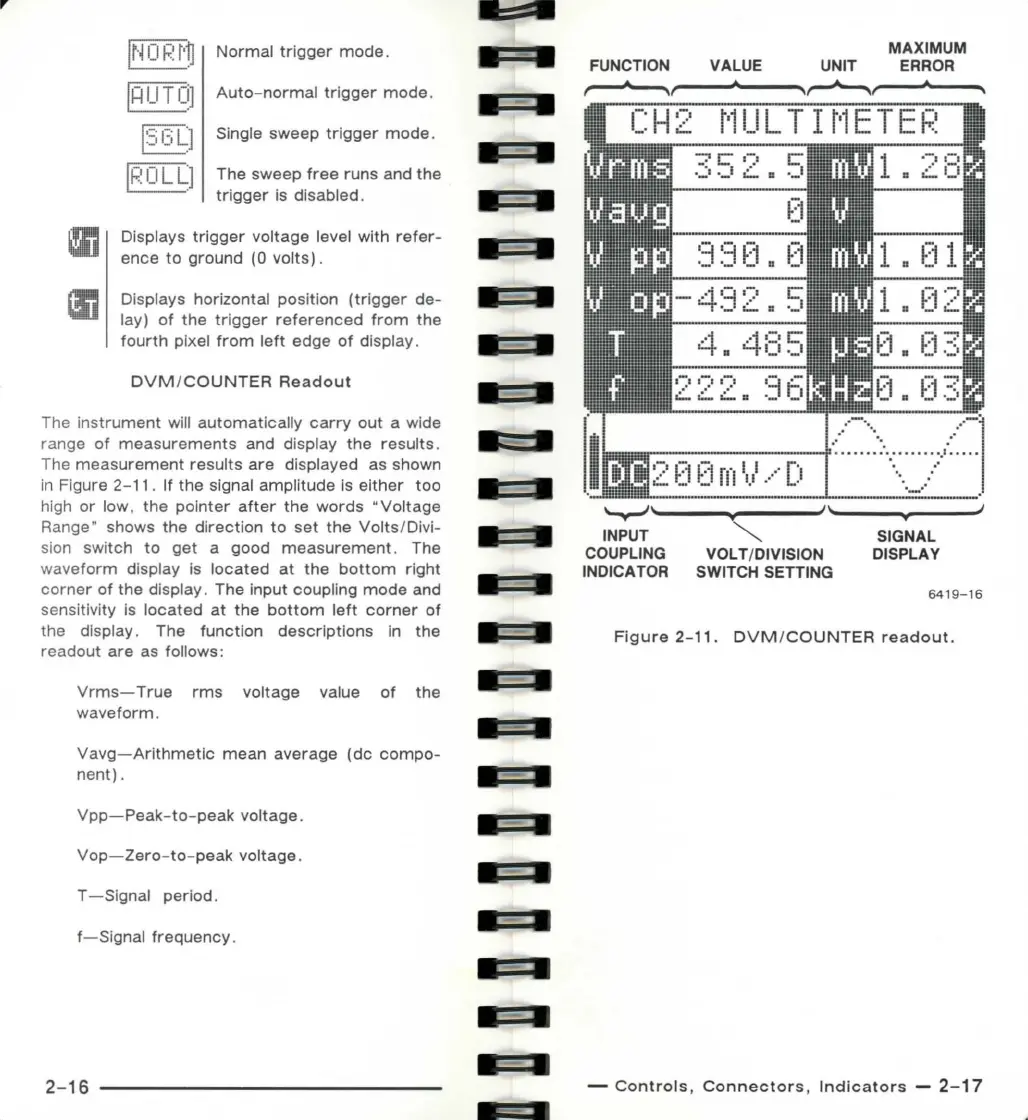

Figure 2-11. DV M / COU N TER read ou t.
- Co ntr ol s, Connecto rs, Indi ca tor s - 2-17
