TekSmartLab is the industry's first network-based lab
instrument management solution for quickly setting up and
efficiently managing basic Instrumentation in engineering
laboratories at colleges and universities. The centralized
control of instruments enabled by the TekSmartLab solution
dramatically improves the classroom and lab experience for
students, instructors and lab managers. In this Demo we
will be setting up a lab and pushing settings to all
connected instruments.
13. Configure a lab of instruments
with TekSmartLab software (3/3)
4. To centrally configure all the instruments in your lab, Click
Configure Instrument from the home page (Figure 33).
5. Choose Scope in the left pane, the oscilloscope
configuration page is displayed on the right.
6. Click the White Arrow in the Instrument Panel to hide
the icons of the instruments.
7. You can easily Default Setup the instruments after
each ;ab and disable the Autoset feature so that
students learn how to make measurements (Figure 34).
8. Choose selected benches displayed in blue, or click All
to choose all benches.
9. Click Apply to distribute the configuration to the chosen
benches. The configured benches will be displayed in
green.

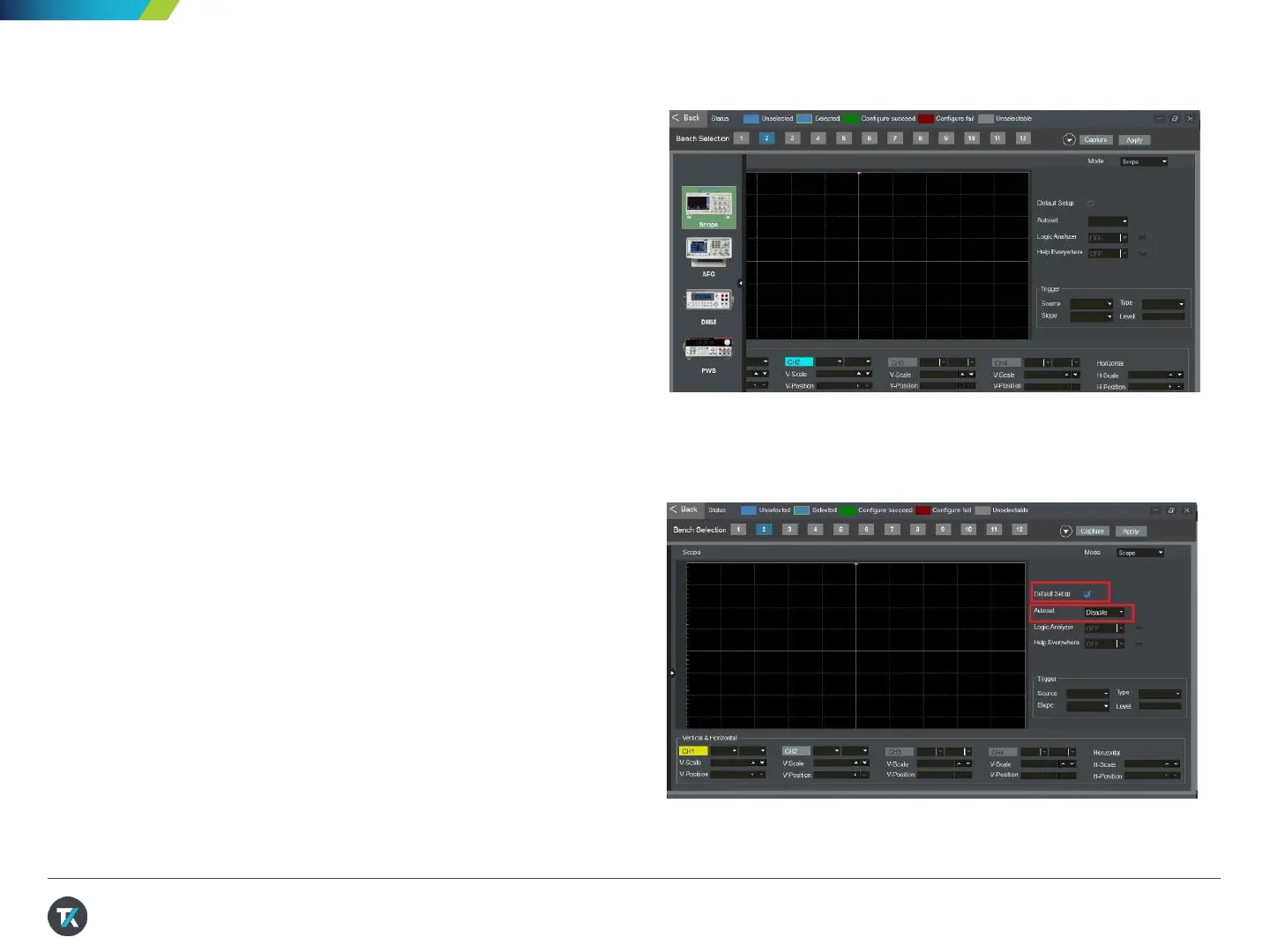

Figure 33. TekSmartLabs centralized instrument configuration panel
32
Figure 34. TekSmartLab has setup features tom make your job as an
instructor easier like centralized instrument configuration..
