Ampliﬁer Replaceable Parts

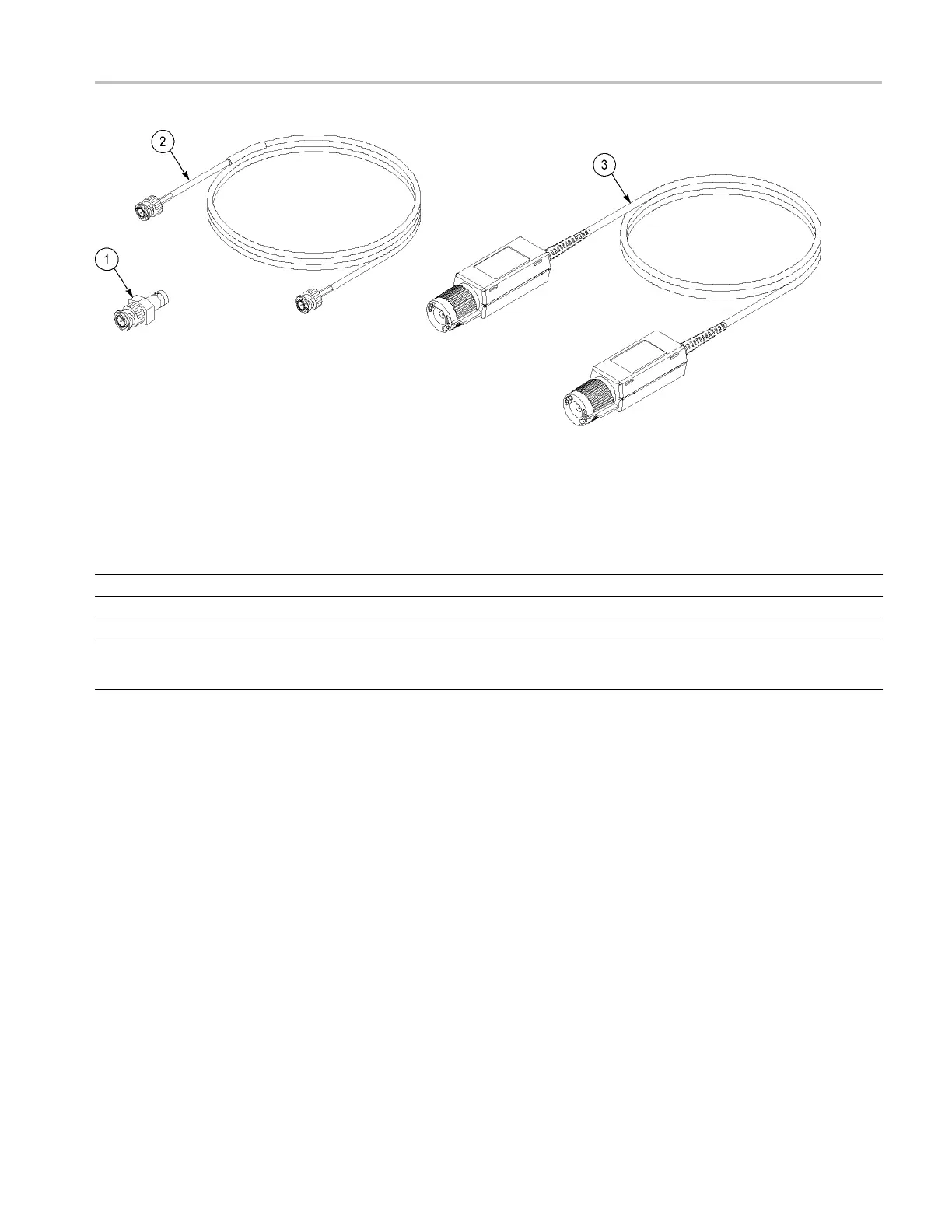

Figure 39: TCPA300 and TCPA400 standard accessories

Table 40:

TCPA300 and TCPA400 standard accessories parts list

Fig. &

index

number

Tektronix

part

number

Serial n

effective

Serial n

discont’d Qty Name & description

39-1 011-0049-XX 1

TERMINATOR,BNC:COAXIAL,50 OHMS,2W,BNC

-2 012-0117-XX 1

CABLE ASSY:COAX,RFD,50 OHM,30.0L,MALE,BNC X MALE,BNC

-3 012-1605-XX 1

CABLE ASSY RF:TEKPROBE INTERFACE

020-3025-XX 1

DOCUMENTATION KIT, TCPA300/400 AMPS & TCP300/400 PROBES,

INCLUDES DOCUMENTATION CD AND PRINTED SAFETY & INSTALLATION

BOOKLET

TCPA300/400 Ampliﬁers and TCP300/400 Series Current Probes Service Manual 87
