Disassembly

4. Remove the 4 scr

ews that secure the left-side inner panel to the chassis.

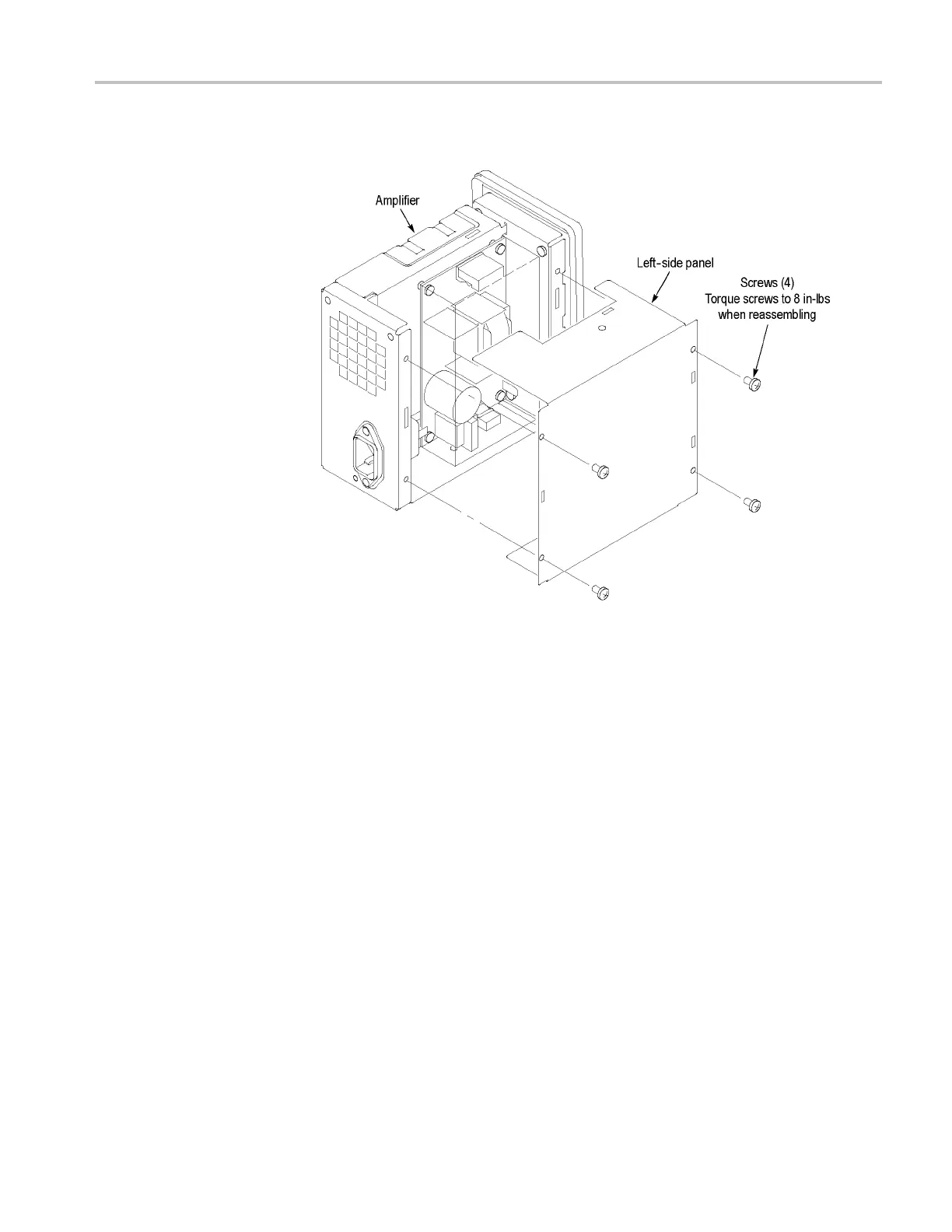

Figure

22: Removing the left-side inner panel

You now

have exposed access to the ampliﬁer adjustments. If you need to replace

any of the internal components, refer to the following instructions.

TCPA300/400 Ampliﬁers and TCP300/400 Series Current Probes Service Manual 65
