Disassembly

Replacing the

Power Supply

To replace the power supply, do the following:

1. Disconnect the AC and DC power connectors from the power supply.

2. Remove the four screws from the power supply.

3. Remove the power supply from the chassis.

4. Do in rever

se steps 3 through 1 to install a new power supply.

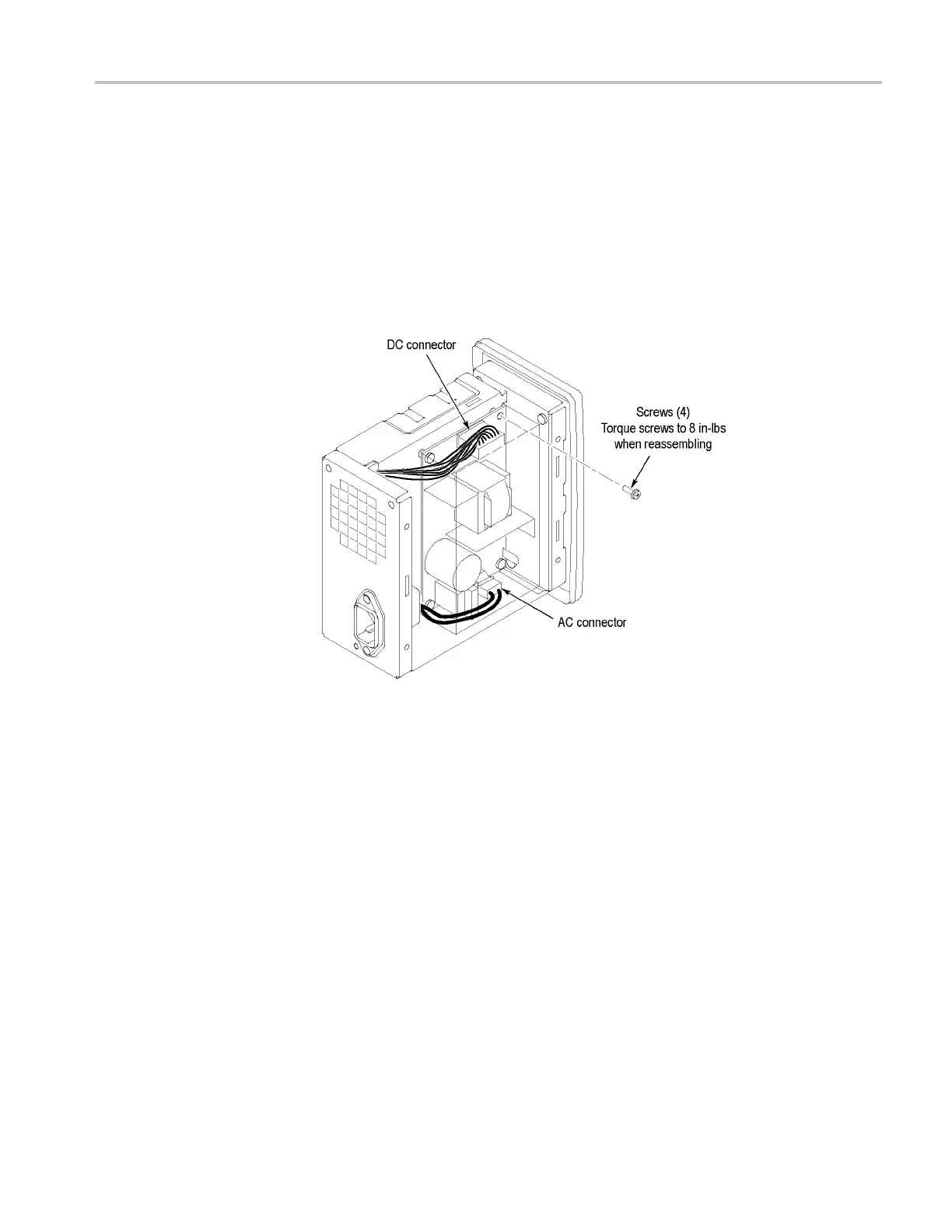

Figure 26: Replacing the power supply

TCPA300/400 Ampliﬁers and TCP300/400 Series Current Probes Service Manual 69
