Tektronix TCP300 Series - Figure 40: TCPA300 and TCPA400 Optional Accessories

120 pages

To Next Page

To Previous Page

Ampliﬁer Replaceable Parts

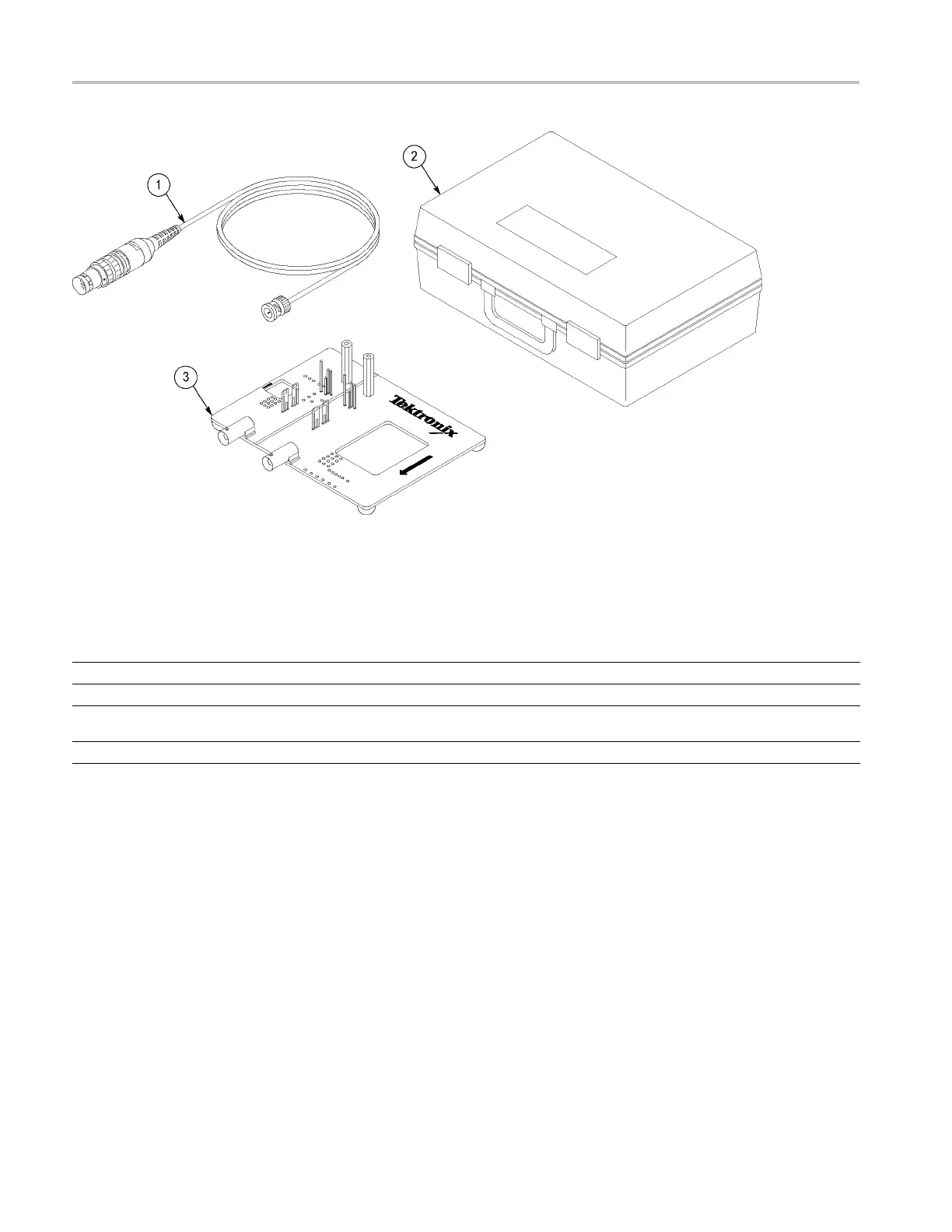

Figure 40: TCPA300 and TCPA400 optional accessories

Table 41: TCPA300 and TCPA400 optional accessory parts list

Fig. &

index

number

Tektro

nix

part

number

Serial no.

effect

ive

Serial no.

discon

t’d

Qty Name & d

escription

40-1 174-4765-XX 1

CABLE ASSY, CALIBRATION ADAPTER

-2 016-19

22-XX

CASE, TRANSIT, CURRENT MEASUREMENT SYSTEM

-3 067-1478-XX 1

POWER

MEASUREMENTS DESKEW FIXTURE, TCP200,TCP300, A6300

SERIES PROBES

TDSPW

R2 POWER MEASUREMENT AND ANALYSIS SOFTWARE
