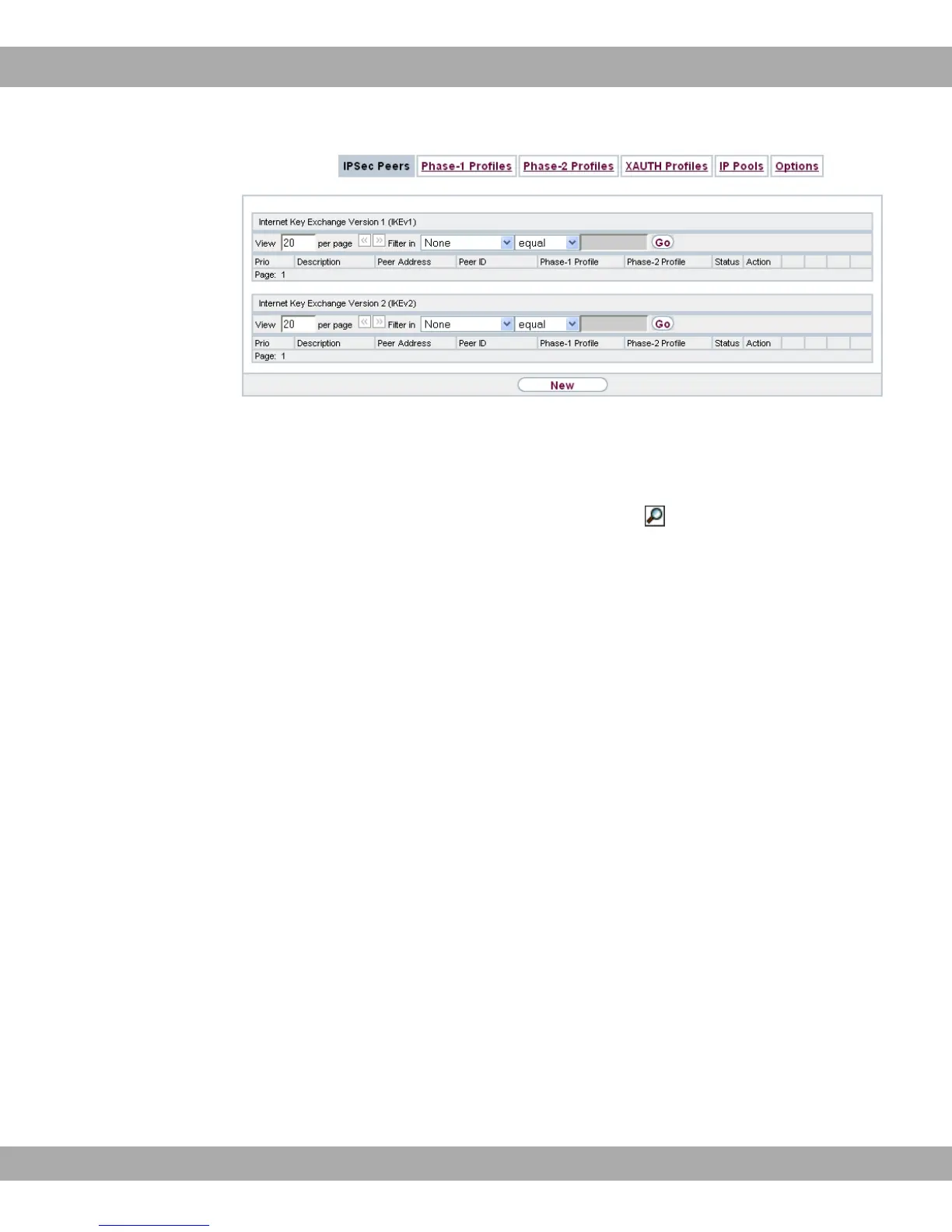

Fig. 129: VPN->IPSec->IPSec Peers

Peer Monitoring

The menu for monitoring a peer is called by selecting the button for the peer in the peer

list. See Values in the IPSec Tunnels list on page 532.

18.1.1.1 New

Choose the New button to set up more IPSec peers.
